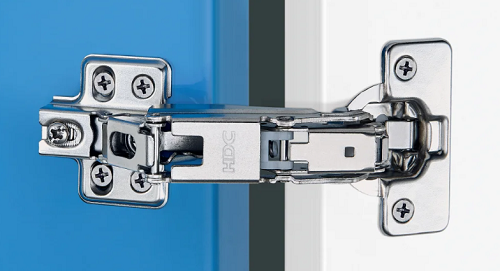

165° FGV-type slide-on hinge
Opening angle: 165° Depth of hinge cup: 11.3mm Diameter of hinge cup: 35mm Door (K) dimension: 3~7mm Applicable door thickness range: 12~26mm
| D H K |
3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|
| 0 | 16 | 17 | 18 | 19 | 20 |
| 3 | 13 | 14 | 15 | 16 | 17 |
| 6 | 10 | 11 | 12 | 13 | 14 |
| D H K |
3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|
| 0 | 8 | 9 | 10 | 11 | 12 |
| 3 | 5 | 6 | 7 | 8 | 9 |
| 6 | 2 | 3 | 4 | 5 | 6 |
| D H K |
3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|
| 0 | -3 | -2 | -1 | 0 | 1 |
| 3 | |||||
| 6 |
Application of Ø35mm Hinge
H = Height of mounting plate
D = Required overlay on the side panel
K = Distance between door edge and drilling holes on hinge cup
A = Gap between door and side panel
Open angle 165°
The diagram shows straight arm hinge matched with H=0 base plate, suitable for 90° opening angle and maximum opening angle.
II. Product Information
| Product Information | |
|---|---|
| Opening angle | 165° |
| Depth of hinge cup | 11.3mm |
| Diameter of hinge cup | 35mm |
| Door (K) dimension | 3~7mm |
| Range of applicable door thickness | 12~26mm |
| Optional Close Type | |
| Spring hinge | Default type |
| Unspring hinge | Free closing |
| Hinge Cup Types | |
III. Mounting-plate
