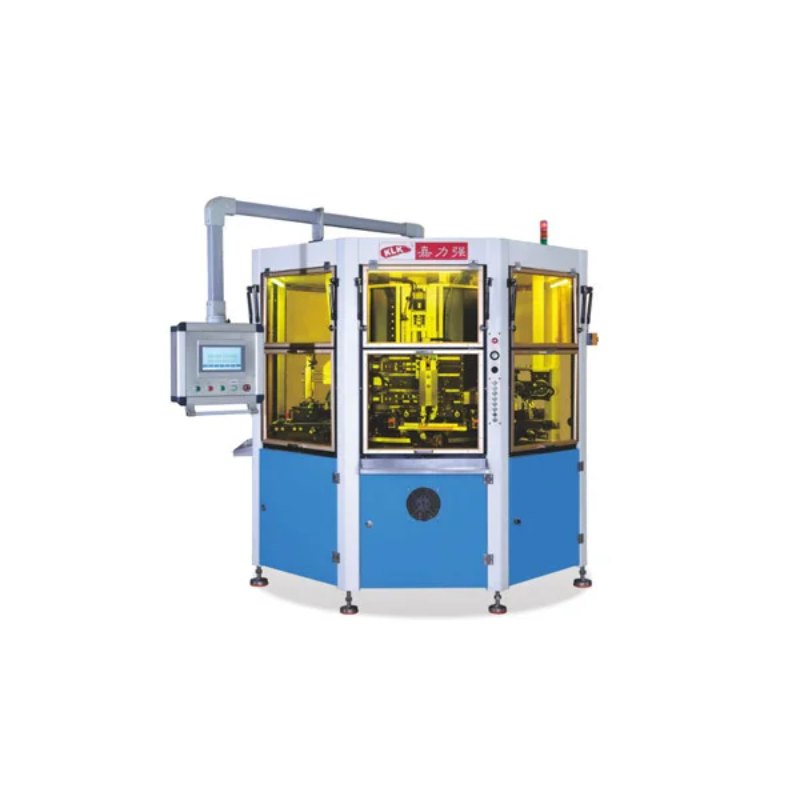

2 Colors 8 Stations Rotary Screen Printer

Product Introduction

The 2 Colors 8 Stations Rotary Screen Printer is an automatic rotary screen printing machine designed for multi-color decoration of glass bottles and cosmetic containers. Model Z082, it combines an automatic loading and unloading system, servo-driven printing, CCD and servo pre-registration, flame pre-treatment, and optional UV curing.

The machine uses servo-driven motion throughout the automatic printing system to support accurate positioning and consistent printing operations. Its PLC-based control system and touchscreen interface provide centralized operation, while Ethernet-connected servo motors allow network connection for future maintenance and program upgrades.

With an 8-station rotary configuration and support for up to two-color printing, the machine is suitable for containers with round, oval, square, and rectangular shapes. Printing speed varies according to the container shape, with round and oval articles reaching 40–60 pcs/min and square articles reaching 30–40 pcs/min under the specified conditions.

Key Features

Fully Servo-Driven Printing System

The printing system uses servo-driven operation to support accurate movement and positioning during the printing process. Servo control helps coordinate the machine's automatic functions and contributes to consistent printing performance.

Automatic Loading and Unloading

A servo-driven automatic loading and unloading system is integrated into the machine, reducing the need for manual handling during the production process and supporting continuous automated operation.

CCD & Servo Pre-Registration

The machine combines CCD positioning with servo pre-registration to assist with accurate container positioning before screen printing. This feature is particularly useful for applications where printing alignment is important.

Flame Pre-Treatment

A flame pre-treatment system is provided to improve ink adhesion on the surface of applicable containers. This process prepares the printing surface before screen printing.

Optional UV Curing

After screen printing, the machine can be equipped with either LED UV or Electrode UV curing according to the production requirements. The specified LED UV power is 230W.

PLC and Touchscreen Control

The machine uses an industrial PLC control system with a touchscreen operation interface. Operators can manage machine functions through the integrated control system.

Ethernet Servo Motor Connection

The servo motors use Ethernet connectivity. The network connection also provides an option for future maintenance and program upgrades.

Printing Capabilities

The 2 Colors 8 Stations Rotary Screen Printer is configured for two-color screen printing and can handle several container shapes.

Supported article shapes include:

• Round

• Oval

• Square

• Rectangle

The machine is designed for glass bottles and cosmetic containers, with multi-color printing available for suitable products and production requirements.

Product Applications

This rotary screen printer is suitable for decorating:

• Glass bottles

• Cosmetic containers

• Round containers

• Oval containers

• Square containers

• Rectangular containers

It can be used where automated screen printing and multi-color decoration are required for container packaging.

Technical Specifications

Printing Speed

The maximum printing speed depends on the shape of the article.

The actual production speed may vary according to the container characteristics, printing requirements, and operating conditions.

Control and Automation System

The machine integrates several automated control functions to support a streamlined printing workflow.

The main control configuration includes:

• Industrial PLC control

• Touchscreen operation system

• Servo-driven printing system

• Servo-driven automatic loading and unloading

• CCD pre-registration

• Servo pre-registration

• Ethernet servo motor connection

• Network connection for future maintenance

• Program upgrade capability

This configuration allows the equipment to combine mechanical automation with electronic positioning and control functions for container screen printing.

Pre-Treatment and Curing Options

Flame Pre-Treatment

The integrated flame treatment system is designed to prepare the surface of the article before printing and support better adhesion between the printed material and the container surface.

LED UV or Electrode UV

UV curing can be configured after screen printing. LED UV and Electrode UV are available as optional configurations, allowing the machine setup to be matched to the production process.

Optional Fixture Configuration

The fixture can be configured with either vacuum or air inflation according to the requirements of the container and production setup.

Available fixture options include:

• Vacuum fixture

• Air inflation fixture

The appropriate fixture configuration can be selected based on the article shape and handling requirements.

Applicable Article Range

The machine accommodates articles with a diameter of Φ25–90 mm and an article height of 35–250 mm. This range allows it to handle various glass bottles and cosmetic containers within the specified dimensions.

The multi-station rotary structure is suitable for automated production where containers need to be positioned, printed, and transferred through a continuous machine cycle.

Production Advantages

The 2 Colors 8 Stations Rotary Screen Printer combines several functions into one automated printing system:

1. Automatic loading and unloading

2. Servo-driven printing

3. CCD and servo pre-registration

4. Flame pre-treatment

5. Optional UV curing

6. PLC control

7. Touchscreen operation

8. Ethernet-connected servo motors

9. Support for multiple container shapes

10. Vacuum or air inflation fixture options

This configuration is designed to reduce manual intervention and provide a coordinated workflow for container screen printing.

B2B Product Selection Considerations

When selecting this rotary screen printing machine, buyers can evaluate the following factors:

• Container shape

• Article diameter

• Article height

• Number of printing colors

• Required production speed

• Printing stroke

• Fixture configuration

• UV curing requirements

• Communication and maintenance requirements

• Available factory power supply and compressed air conditions

For containers within the specified dimensional range, the Z082 configuration provides automated handling, registration, screen printing, and optional curing functions in an integrated rotary system.

About the Supplier

Shenzhen Kar Lee Keung Electronic Equipment Ltd. supplies screen printing equipment designed for container decoration applications. The company's equipment solutions include automated printing systems incorporating servo control, positioning systems, pre-treatment, curing, and PLC-based operation.

For buyers sourcing automatic rotary screen printing equipment, production teams can provide container dimensions, shapes, required printing colors, fixture requirements, and expected production conditions when requesting equipment information.

Product Summary

The 2 Colors 8 Stations Rotary Screen Printer is an automatic container screen printing machine with servo-driven printing, CCD and servo pre-registration, flame pre-treatment, optional LED or Electrode UV curing, and support for round, oval, square, and rectangular articles. Its Z082 configuration is designed for automated two-color printing of glass bottles and cosmetic containers.

For equipment selection and production configuration, Shenzhen Kar Lee Keung Electronic Equipment Ltd. can be contacted with the article dimensions, shape, printing requirements, and desired fixture or UV configuration.
