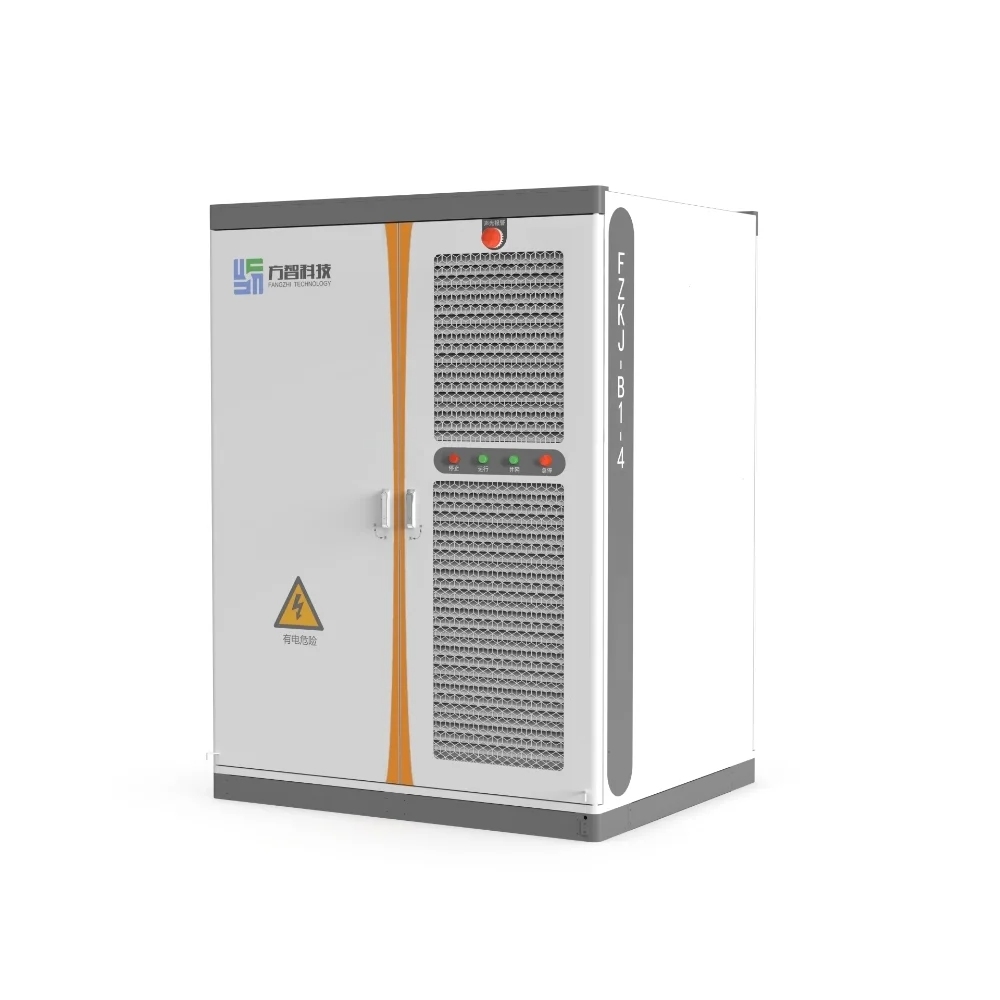

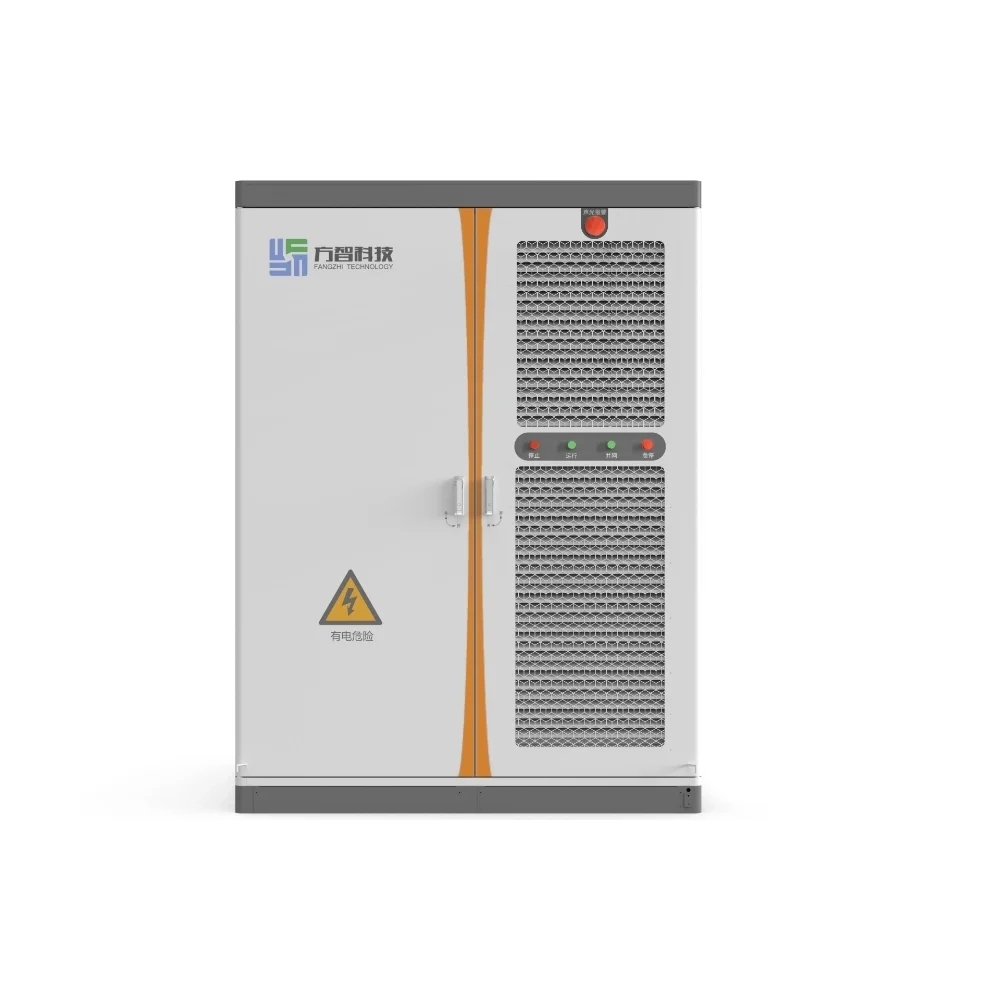

232kWh PV+ Diesel Generator+ Grid BESS Cabinet
This 232kWh Battery Energy Storage System is a high-performance BESS customized for the evolving needs of overseas commercial and industrial sectors.
The 232kWh Battery Energy Storage System is a commercial and industrial-grade BESS solution designed to meet the increasing demand for reliable energy storage in global markets.
Built with a high-performance LFP battery system, this energy storage unit supports integration with photovoltaic (PV) systems, hybrid solar solutions, and diesel generator systems. It provides flexible energy management capabilities for both grid-connected and off-grid applications, ensuring stable power supply for commercial facilities, industrial sites, and distributed energy projects.
The system combines battery storage, power conversion, and intelligent control functions in a compact cabinet design, enabling efficient deployment and simplified installation for different energy scenarios.
Key Features
-
High-capacity energy storage: Rated capacity of 232kWh with LFP-314Ah battery cells and a cycle life of ≥8000 cycles.
-
Flexible system integration: Compatible with PV systems, hybrid solar systems, and diesel generators for various power supply configurations.
-
Wide voltage operating range: Supports a DC voltage range of 646-831V for stable energy conversion.
-
High discharge capability: Maximum charge/discharge current up to 157A to support demanding commercial and industrial loads.
-
Full depth of discharge: Maximum DoD reaches 100% under standard operating conditions (25 ± 2℃).
-
Reliable outdoor operation: IP55 protection rating and operating temperature range from -15℃ to 50℃ allow deployment in different environmental conditions.
-
Multiple communication options: Equipped with CAN, RS485, and 4G communication interfaces for remote monitoring and system management.
Technical Specifications
| Item | Specification |
|---|---|
| Model | HybridCab-232 |
| Battery Type | LFP-314Ah |
| Cycle Life | ≥8000 cycles |
| Voltage Range | 646-831V DC |
| Rated Capacity | 232kWh |
| Max. Charge/Discharge Current | 157A |
| Communication Interface | ISO SPI |
| Max. Depth of Discharge | 100% (25 ± 2℃) |
Photovoltaic Input
| Item | Specification |
|---|---|
| Recommended Maximum Power | MPPT 50kW × 2 |
| PV Voltage Range | 300-900V DC |
| Maximum Input Current | 150A |
| Maximum Input Series | 2 PCS |
AC Output
| Item | Specification |
|---|---|
| Rated Output Power | 100/125kW |
| Output Voltage | 380V/400V |
| Output Frequency | 50/60Hz |
| Power Factor | ＞0.99 |
AC Input
| Item | Specification |
|---|---|
| Input Voltage | 380V (-20%～+15%) |
| Maximum Input Current | 280A |
| Input Frequency | 50/60±2.5Hz |
| Maximum ATS Current | 350A |
| STS Rated Power | 200kW |
General Specifications
| Item | Specification |
|---|---|
| Operating Temperature | -15℃ to 50℃ |
| Dimensions (W×D×H) | 1700×1400×2300mm |
| Protection Level | IP55 |
| Communication Methods | CAN, RS485, 4G |
| Certification Standards | UN38.3, CE-EMC |
| Cooling Method | Air Cooling |
The 232kWh Battery Energy Storage System provides a scalable and dependable solution for commercial and industrial energy applications, supporting efficient renewable energy utilization, backup power supply, and flexible power management requirements.
