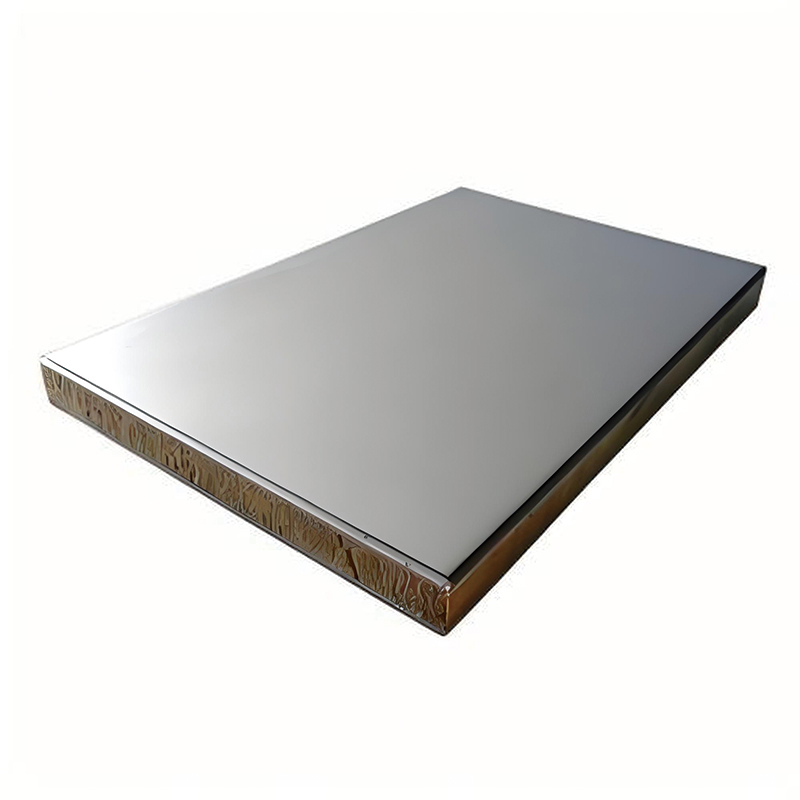

317L stainless steel plate-higher molybdenum content
● Delivery: within 10-15 days or considering the quantity● Transport: By bulk or Containers;● Supply ability: 3000 metric tons/ month;● Payment terms L/C, T/T;
Profile
The composition of 317L stainless steel gives it its unique properties and characteristics. This type of stainless steel is composed of a combination of elements such as chromium, nickel, molybdenum, and carbon. Chromium is the main component of 317L stainless steel and has good corrosion resistance. It forms a protective layer on the metal surface, preventing rust and staining.
Chromium also plays an important role in providing corrosion resistance and increasing high-temperature strength. Molybdenum improves resistance to pitting corrosion from chloride solutions commonly found in harsh environments such as seawater or chemical processing plants. Carbon content helps increase hardness but can reduce weldability if not controlled properly. The precise balance between these elements ensures that 317L stainless steel performs better than traditional austenitic grades when used in high-temperature, corrosive environments.
Product Description
|
Product |
317L Stainless Steel Sheet |
|
Surface Finish |
BA, 2B, 4K, 6K, 8K, NO.4, HL, Embossed, Perforated, Pickling white, Polished outside, Polished inside and outside |
|
Technique |
Hot Rolled / Cold Rolled |
|
Standard |
AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc |
|
Width |
500mm/1000mm/1219mm/1250mm/1500mm/1800mm/2000mm/2200mm/2500mm/3000mm/3500mm, or as required |
|
Length |
500mm/1000mm/2000mm/2438mm/2500mm/3000mm/6000mm/8000mm—13000mm, or as required |
|
Thickness |
0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0/4.0/5.0/6.0/8.0/10.0/12.0/14.0/16.0—250mm, or as required |
|
Material |
201, 202 |
|
Color |
Standard RAL color: Red, Blue, White, Grey, Brick, etc. |
|
Stock Dimension |
Cold Rolled: 0.4-6.0mm*1000*2000mm/ 1220*2440mm/ 1250*2500mm/ 1500*3000mm, or as your request |
|
Service |
OEM, Customized processing service, Customized fabrication by drawings |
|
Processing Type |
Cutting, Bending, Stamping, Welding, CNC machining |
|
Cutting Type |
Laser cutting; Water-jet cutting; Flame cutting |
|
Protection |
1. Inter paper available |
|
Application |
Costruction Industry/ Kichten Products/ Fabrication Industry/ Home Decoration |
Chemical Composition
|
C |
Si |
Mn |
Cr |
Ni |
S |
P |
Mo |
Ti |
|
≤ 0.08 |
≤1.0 |
≤ 2.0 |
16.0～18.0 |
10.0～14.0 |
≤ 0.03 |
≤ 0.045 |
2.0～3.0 |
0.5～0.7 |
Mechanical Properties
|
Tensile Strength Kb (MPa) |
Yield Strength σ0.2 (MPa) |
Elongation D5 (%) |
Hardness |
|
≥515 |
≥205 |
≥ 40 |
≤ 187HB;≤ 90HRB;≤ 200HV |
Physical Performance
|
Density(g/cm³) |
Modulus of Elasticity(Gpa) |
Coefficient of Thermal Expansion(10-6/°C) |
Coefficient of Thermal Conductivity(W/m*K) |
Resistivity(ΜΩ. cm) |
|
7.99 |
193 |
16.0 |
16.2 |
74 |
Surface Selection
