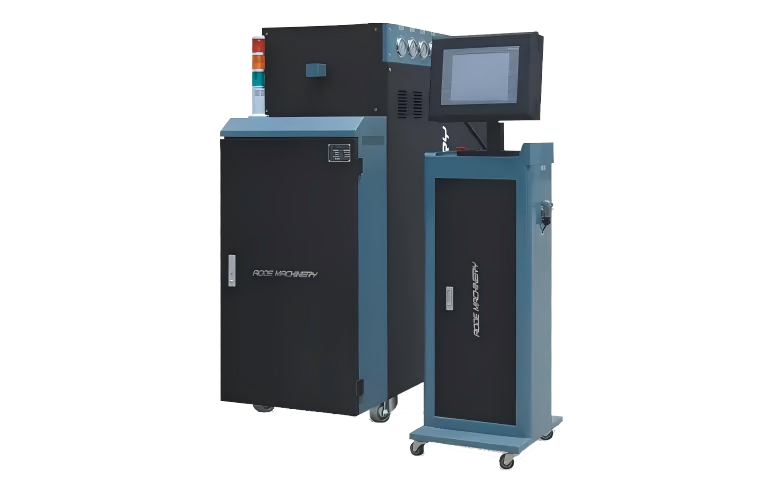

AFCH SERIES FAST HOT-COOL MOLD TEMPERATURE CONTROL UNIT
Steam mold temperature control unit provide high-temperature steam, when clamping the mold, the high temperature steam is injected into the injection, the mold temperature is increase to a set tempera
AFCH SERIES FAST HOT-COOL MOLD TEMPERATURE CONTROL UNIT
Steam mold temperature control unit provide high-temperature steam, when clamping the mold, the high temperature steam is injected into the injection, the
mold temperature is increase to a set temperature value, then inject the plastic into the injection cavity. Inject cooling water or chilled water rapidly after the completion of the injection molding machine holding pressure, so that the mold can open after the mold temperature comes down to a set value within a short period of time, blow air into the mold to blow away the remnants cold water, completing a injection process cycle control, through such rapid hot and cold plastic molding can completely solve the appearance of defects of the plastic parts, improve production efficiency.
Eliminate the product surface soluble wiring and melted warks
Increase the liquidity and fill effects of the plastic
Improve the surface gloss, the surface roughness is imilar to the mirror.
Products do not need to spray paint processing, increas the finished products rate by 20-30%.
Solve the fiber products floating fiber problem, make the product quality perfect
| ITEM | UNIT | MODEL |
| AFCH-1600 | ||
| Power supply | V/Hz | AC 3N-380/400V-50Hz(3phase+Earth) |
| Total power | kw | 3.06 |
| Control mode | PLC&HMI | |
| Hot-Cold conversion speed | s | 15-50 |
| Cooling water pump power | kw | 3 |
| Cooling water inlet dimension | inch | 1-1/2 |
| Steam inlet diameter | inch | 1-1/2 |
| Steam circling system diameter | inch | 1-1/2 |
| Size(L×W×H) | mm | 1375*550*1570 |
