Box, Diode and Cable Assembly Line for Automatic Module Junction Box Production

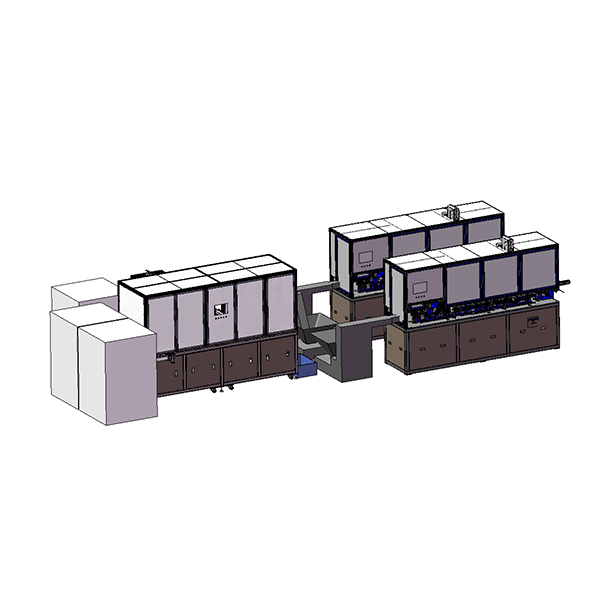

The Box Diode and Cable Assembly Line is an automated production solution developed for the efficient assembly of key components used in module junction boxes. The line is designed to streamline the assembly of module boxes, diode components, pressure blocks, and cables, helping manufacturers improve production efficiency and maintain consistent assembly quality.

By integrating multiple assembly operations into a coordinated production process, this automated line reduces the need for manual handling and supports stable, continuous manufacturing for high-volume module junction box production.

Product Overview

The Box, Diode and Cable Assembly Line is primarily used for the automatic assembly of module junction box components. It is capable of handling the assembly of:

• Module junction boxes

• Diodes

• Pressure blocks

• Cables

The integrated production line is designed to provide an efficient workflow for manufacturers seeking to improve automation levels and production capacity. With a designed production rhythm of 1,000 to 1,100 sets per hour, the system is suitable for high-volume industrial manufacturing applications.

Production Process

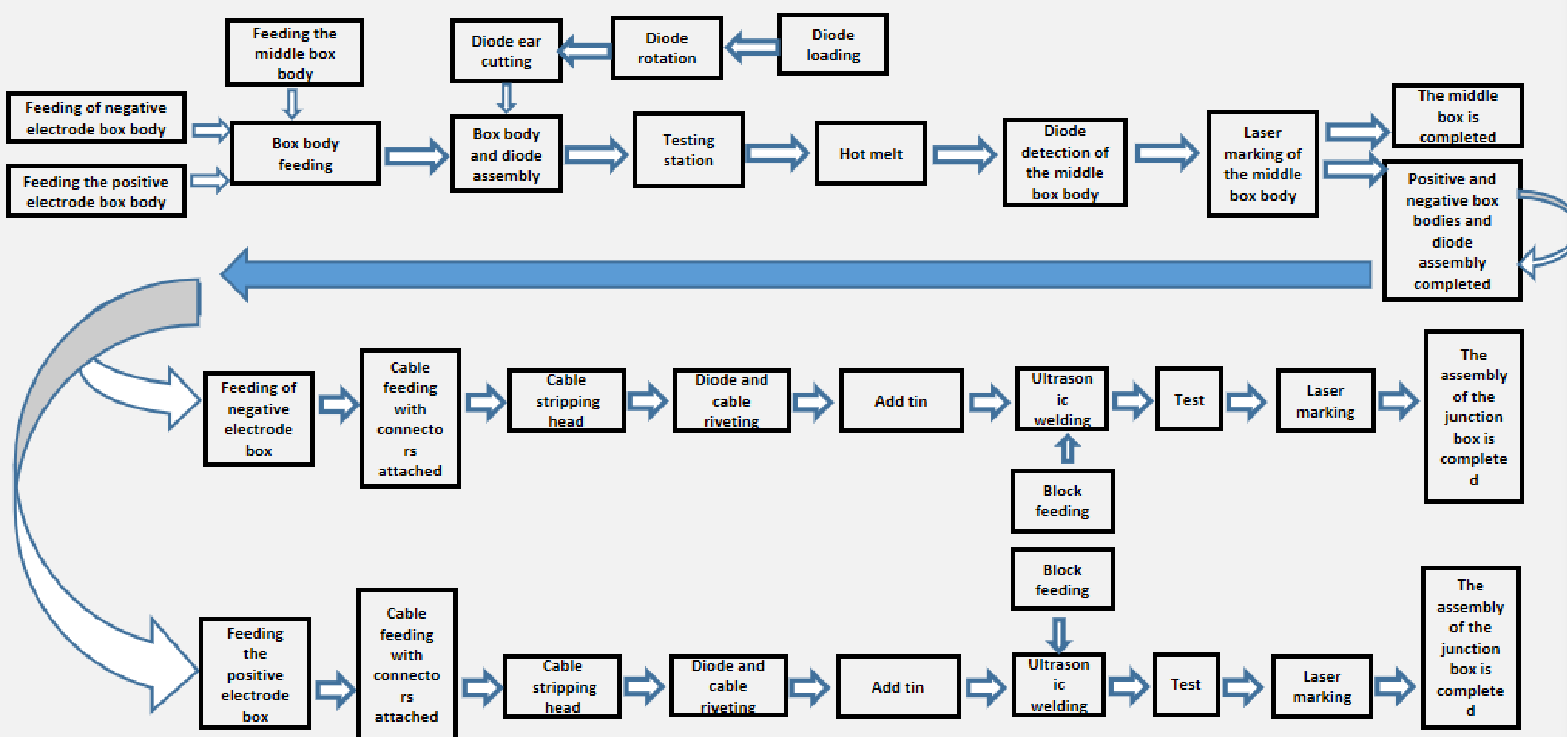

The production line coordinates the assembly of boxes, diodes, pressure blocks, and cables through an automated workflow. By combining these operations within one production system, manufacturers can simplify the assembly process and improve overall production consistency.

The automated configuration helps reduce repetitive manual operations while maintaining a stable production rhythm. This makes the equipment suitable for manufacturers requiring continuous and efficient assembly of module junction box components.

Production Capacity and Automation

With a production capacity of up to 1,100 sets per hour, the Box, Diode and Cable Assembly Line is designed to meet the requirements of high-efficiency module junction box manufacturing.

The automated assembly process allows manufacturers to coordinate the handling of multiple components within a single production line. This integrated approach can help optimize production workflows, reduce manual intervention, and support consistent output during continuous operation.

The system operates on AC 220V ±10% and has a rated equipment power of 15 kW. It requires an air source pressure of 0.6–0.8 MPa, with gas consumption of approximately 80 m³/h.

Efficient Solution for Module Junction Box Assembly

The Box, Diode and Cable Assembly Line provides a practical automation solution for manufacturers involved in module junction box production. By integrating the assembly of boxes, diodes, pressure blocks, and cables into one coordinated production system, the line helps simplify manufacturing processes and improve production efficiency.

With a designed production rhythm of 1,000–1,100 sets per hour and a personnel allocation of only 4 people, the equipment is suitable for industrial production environments where stable output and efficient workforce utilization are important.

For manufacturers looking to enhance automation and establish a more streamlined module junction box assembly process, this production line offers an integrated solution combining automated assembly capabilities with high production efficiency.

Technical Specifications
