CNC Multi-head Vertical Strip Flame Cutting Machine
CNC System: Hypertherm, Fangling, Etc. Height Controller: Hongyuda, Hypertherm, Etc. Nesting Software: FastCAM, InteGNPS, Etc. Cutting Torch: 9+1 Motor: Panasonic Reducer: Shimpo, Neugart Color: Red+b
CNC Multi-head Vertical Strip Flame Cutting Machine
Product description:
With economical digital control function, the CNC flame/plasma cutting machine can applied in lot size steel sheet straight cutting, as well as irregular geometric shape cutting. The main frame is bent, welded, annealed to remove stress, so is stable and not easily deformed. The servo motor, reducer, pressure release valve, air pipe, magnetic valve as well as cutting guns used are all world famous brand to ensure stable quality.
Application:
It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting)etc.
Be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Technical Parameters:
| Model | CNC5-3000 | CNC5-4000 | CNC5-5000 |
| Gauge (mm) | 3000 | 4000 | 5000 |
| Effective cutting width (mm) | 230-2200 | 230-3200 | 230-4200 |
| Rail Length (mm) | 12000 / 14000 | 12000 / 14000 | 12000 / 14000 |
| Effective cutting length (mm) | 10000 / 12000 | 10000 / 12000 | 10000 / 12000 |
| CNC cutting torch | 2 | 2 | 2 |
| Strip cutting torch | 9 | 9 | 9 |
| Cutting thickness (mm) | 6~100 | 6~100 | 6~100 |
| No-duty running speed | 4000 mm/mm | ||
| Drive mode | Single / double | Single / double | Double |
| Cutting precision | ±0.5mm/mm | ||
| Repeat ability precision | ±0.5mm/mm | ||

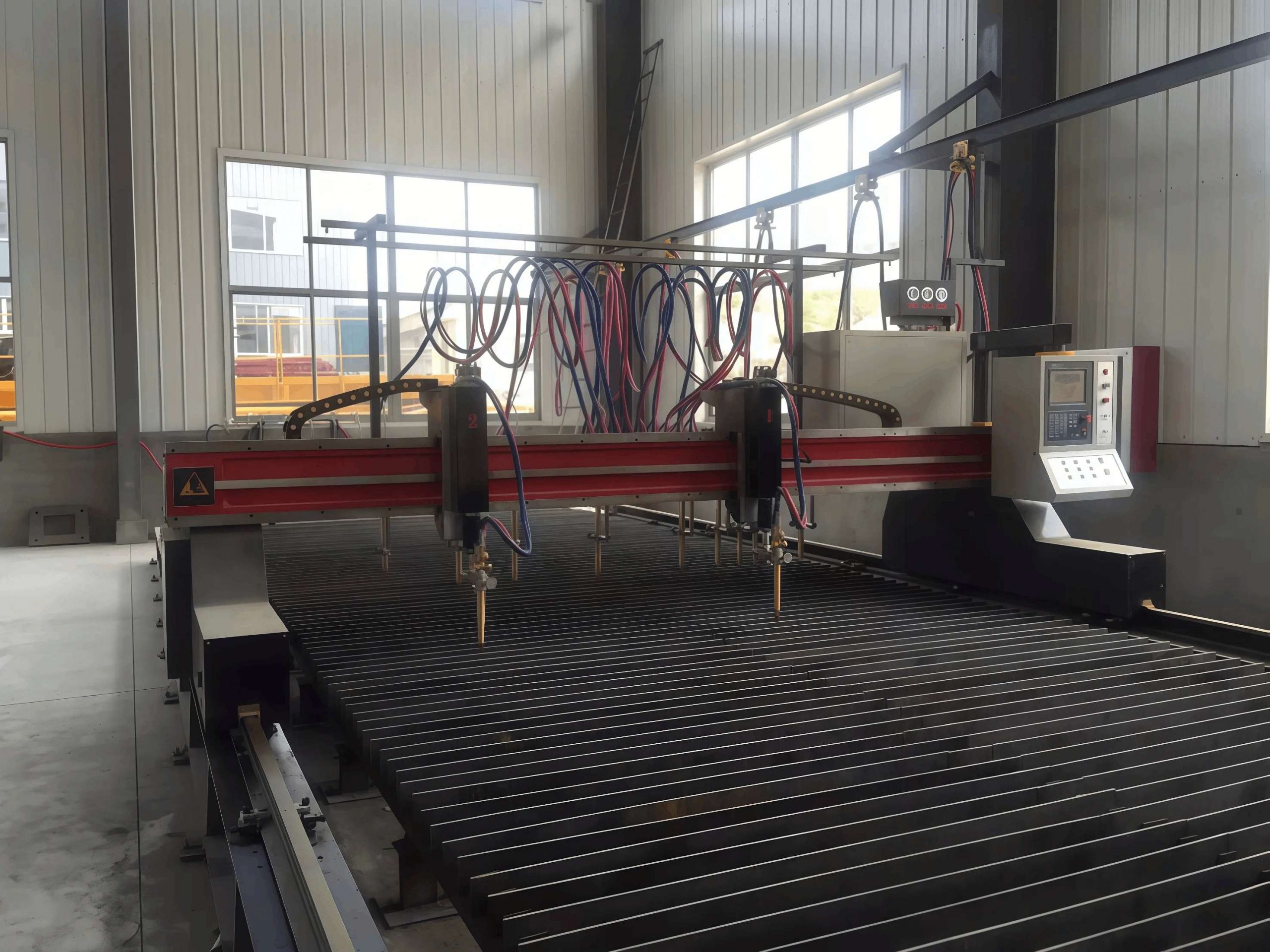

Machine Show:
Supply Scope:
1, Frame unit: Beam, pipe, broadwise beam and longitude and broadwise reducer and etc.
2, Track unit: Guide and accessories. The guide size is 14m*2PCS.
3, Cutting gun unit: Linear single cutting gun*10PCS and accessories.
4, Electric control system: Electric control cabinet, longitude and broadwise motors and accessories.
5, Gas source unit: Main air rubber pipe, suspending sliding vehicle and etc.
6, Spare parts: 1 set
Documents with Goods:
1, Instructions including map of electricity and gas.
2, Certificate
3, Packing list
4, On site installation drawing for laying foundations.
