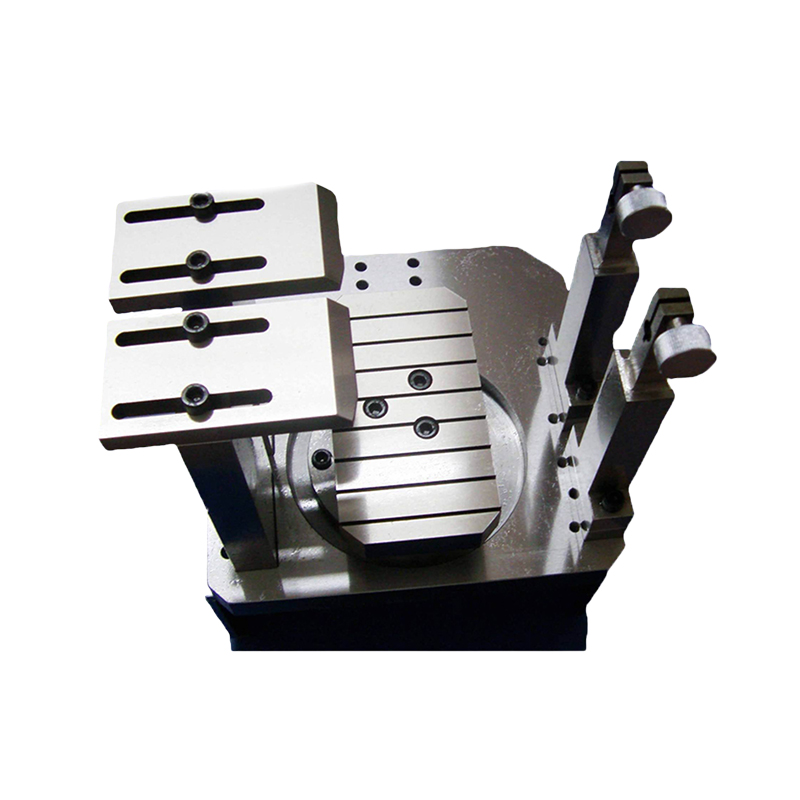

Customizing CNC pneumatic fixtures involves designing and fabricating
specialized fixtures that use pneumatic actuators to secure, position, and clamp
workpieces during CNC Machining operations. These fixtures are essential for
holding workpieces securely in place, ensuring accurate machining, reducing
vibration, and improving overall machining efficiency. Here are some key
considerations for customizing CNC pneumatic fixtures:

1. Design and Engineering: The design of CNC pneumatic fixtures involves
understanding the machining requirements, workpiece dimensions, material
properties, and CNC machine specifications. The fixture design should
incorporate pneumatic clamping elements, such as cylinders, valves, and
actuators, to provide the necessary clamping force, alignment, and stability for
the workpiece during machining.

2. Pneumatic System Integration: Customized CNC pneumatic fixtures require
the integration of pneumatic components, such as cylinders, air valves,
regulators, and hoses, to control the clamping and releasing of the workpiece.
The pneumatic system should be designed to provide precise and reliable clamping
force, quick actuation, and smooth operation to optimize the machining process
and ensure consistent part quality.

3. Material Selection: CNC pneumatic fixtures are typically made from
materials that offer high strength, rigidity, and durability to withstand the
clamping forces, cutting forces, and machining vibrations. Common materials used
for fixture construction include aluminum, steel, and composite materials. The
material selection should consider factors like weight, stiffness, thermal
stability, and compatibility with the workpiece material.

4. Precision Machining: Precision machining techniques, such as CNC milling,
turning, and grinding, are used to produce custom CNC pneumatic fixtures with
accurate dimensions, tight tolerances, and complex features. CNC machining
allows for the production of custom shapes, profiles, and configurations to meet
the specific requirements of the workpiece and machining operations.

5. Flexibility and Adjustability: Customized CNC pneumatic fixtures can be
designed with modular, adjustable, or interchangeable components to accommodate
different workpiece sizes, shapes, and configurations. Adjustable clamping
elements, movable jaws, and quick-change features can enhance the flexibility
and versatility of the fixtures for various machining applications and part
geometries.

6. Automation and Control: CNC pneumatic fixtures can be equipped with
automation features, such as sensors, actuators, PLCs (Programmable Logic
Controllers), and HMI (Human-Machine Interface) systems, to automate the
clamping process, monitor the machining operations, and optimize the production
efficiency. Automation and control systems can improve the repeatability,
accuracy, and productivity of CNC machining processes.

7. Safety and Ergonomics: Customized CNC pneumatic fixtures should be
designed with safety features, such as safety guards, interlocks, and emergency
stops, to protect operators from potential hazards during machining operations.
Ergonomic considerations, such as operator access, visibility, and ease of
loading and unloading workpieces, should also be taken into account to ensure
operator safety and comfort.

When selecting a manufacturing partner for customizing CNC pneumatic
fixtures, look for a company with expertise in fixture design, precision
machining, pneumatic system integration, and CNC machining applications. The
manufacturer should have the capabilities to produce high-quality fixtures
tailored to your specific machining requirements, provide custom design and
engineering support, offer precision machining services, and ensure strict
quality control throughout the fabrication process to deliver reliable and
efficient CNC pneumatic fixtures for your CNC machining operations.
