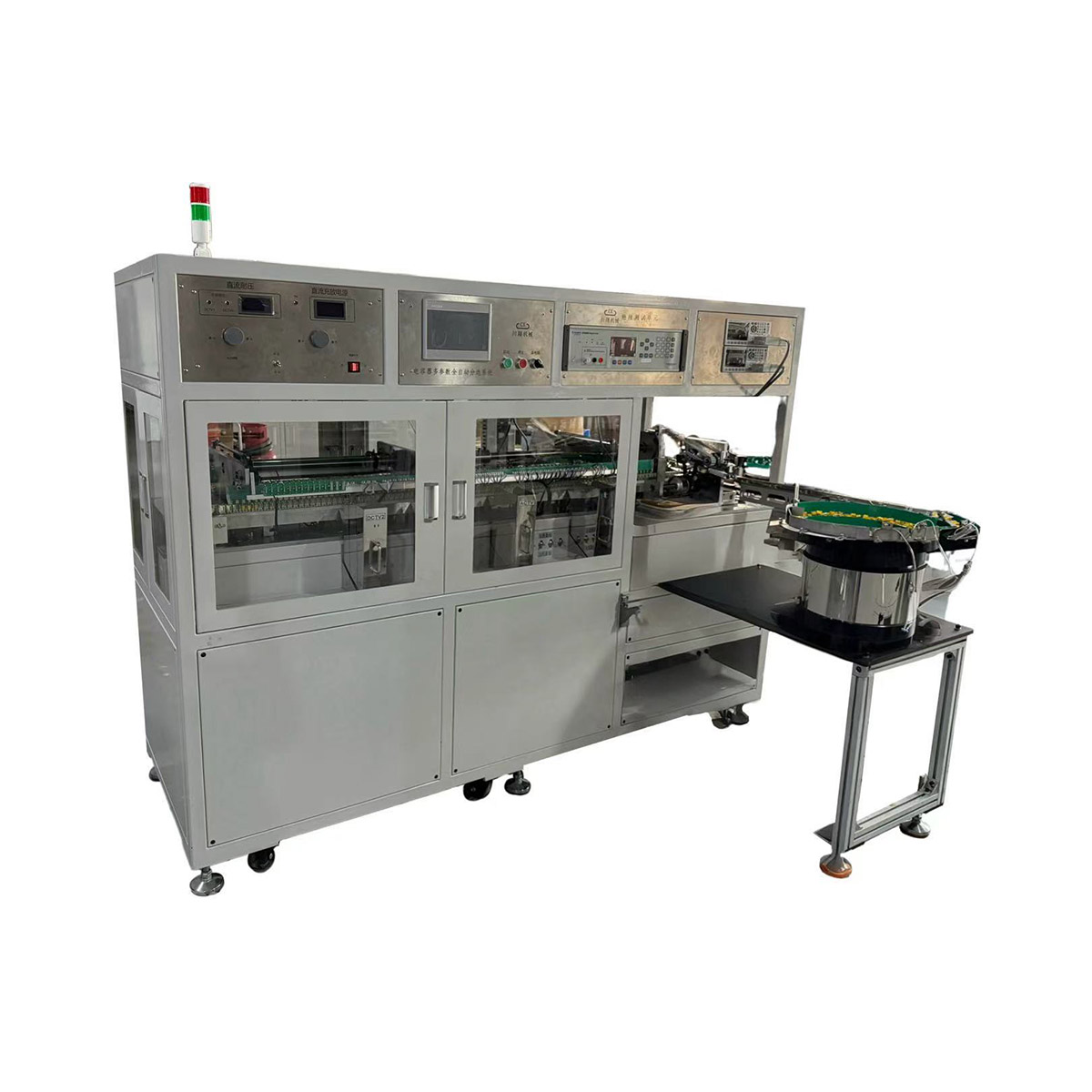

CX28021-X1 Ultra-Compact Safety Compliance Test Machine

1. The mechanical conveying part adopts synchronous belt transmission:

• It overcomes the phenomenon of inaccurate positioning and unstable feeding test caused by the wear and stretching of traditional chains over a long period of time.

• The transmission noise is small and the transmission is light.

• It overcomes the phenomenon of dirt caused by chain oiling.

2. Feeding part: The cam manipulator handover method is adopted, and the feeding is accurate and stable, with a high feeding rate.

3. The feeding transmission has a foot calibration function, and the accuracy of the calibrated products on the fixture is high, stable and reliable.

4. Fixture part:

• The fixture is carefully designed and has a reasonable structure. The tower spring and the clamping teeth are used to improve the clamping degree. The material is ABS.

• The copper head of the entire fixture is designed on the side of the fixture, not directly above or below the fixture, to avoid copper powder falling into the fixture after wear, affecting the cleanliness and insulation of the fixture, and the fixture does not need to be cleaned.

5. The test piece directly contacts the product leads without an intermediate link. Advantages:

• Low impedance, accurate and reliable test.

• The four terminals directly contact the product leads, and can measure high frequencies, such as 100KHZ or higher.

• The test end face has knurling treatment (the end face is concave and convex) to prevent the phenomenon of inaccurate impedance test caused by dirt generated by contact.

• The test piece contacts the product position with high consistency, and the 100KHZ high-frequency test value is stable and reliable.

6. The machine transmission design adopts high-precision cam transmission, which is low noise, stable and reliable.

7. The normal operating speed of the machine is 100 pieces/minute.

8. In addition, our company's test machine has extended functions, such as:

• Laser marking;

• Needle calibration and foot cutting function;

• Packaging and box arrangement function;

• DVDT test function;

• Low function consumption test function;

• CCD appearance detection function;

• ESR test.

9. Capacity, loss and insulation can all be set up by the touch screen, with functions such as data collection, capacity distribution diagram and data analysis.

Compact Electrical Test Machine is a device designed for efficient, portable and multi-functional electrical testing, and is widely used in multiple fields such as industry, medical care, automobiles and aviation.

1. Definition and Characteristics of Compact Electrical Test Machine

Compact Electrical Test Machine is a kind of test equipment that is small in size, light in weight and powerful in function, and usually has the following characteristics:

– Portability: Easy to carry and use on-site, suitable for operation in various environments such as laboratories, factories, and construction sites.

– Versatility: It can perform various electrical tests, such as insulation resistance test, withstand voltage test, grounding test, leakage test, etc.

– High efficiency: Through automated and modular design, the testing speed and accuracy are enhanced.

– Usability: The operation interface is user-friendly, supporting one-click operation and automatic calibration, reducing human errors.

– Strong adaptability: It can be customized according to different testing requirements and is suitable for various testing scenarios.

2. Application fields of Compact Electrical Test Machine

Compact Electrical Test Machine is widely applied in the following fields:

– Industrial field: It is used to test the electrical performance of cables, transformers, switchgear, etc., to ensure the safety and reliability of the equipment.

– Medical field: It is used for electrical safety testing of medical equipment, such as diagnostic devices, monitors, patient monitoring systems, etc., to ensure compliance with international standards such as IEC 60601 and NFPA-99.

– Automotive field: It is used for testing automotive electronic components, such as airbags, electronic control units (ECUs), power modules, etc., to ensure their electrical performance and safety.

– Aviation field: It is used for testing aircraft electrical systems, such as hydraulic systems, pneumatic systems, navigation equipment, etc., to ensure flight safety.

– Power system: Used for power grid testing, cable testing, insulation testing, etc., to ensure the stable operation of the power system.

3. Advantages of Compact Electrical Test Machine

– Enhance testing efficiency: Reduce testing time and labor costs through automated and modular design.

– Reduce testing costs: The compact design lowers the procurement and maintenance costs of equipment.

– Enhance safety: Comply with international standards to ensure the safety of the testing process.

– Strong adaptability: It can be customized according to different testing requirements to meet diverse application scenarios.

– Easy to carry and store: Suitable for on-site testing and mobile testing requirements.

4. Future development trends

– Intelligence: With the development of artificial intelligence and Internet of Things technologies, Compact Electrical Test Machine will become more intelligent and have the functions of data analysis and remote monitoring.

– Integration: Future testing equipment will be more integrated, supporting the integration of multiple testing functions to enhance testing efficiency.

– Greening: Environmental protection and energy conservation will become important directions in the design of testing equipment, reducing energy consumption and carbon emissions.

– Standardization: With the continuous improvement of international standards, Compact Electrical Test Machine will be more in line with the globally unified test standards.

5. Summary

Compact Electrical Test Machine is a portable device integrating multiple electrical test functions and is widely used in various fields such as industry, medical care, automobiles, and aviation. Its features include small size, strong functionality, simple operation, and strong adaptability, enabling it to efficiently and accurately complete various electrical testing tasks. With the continuous advancement of technology, Compact Electrical Test Machine will play a more important role in the future, promoting the development and application of electrical test technology.
