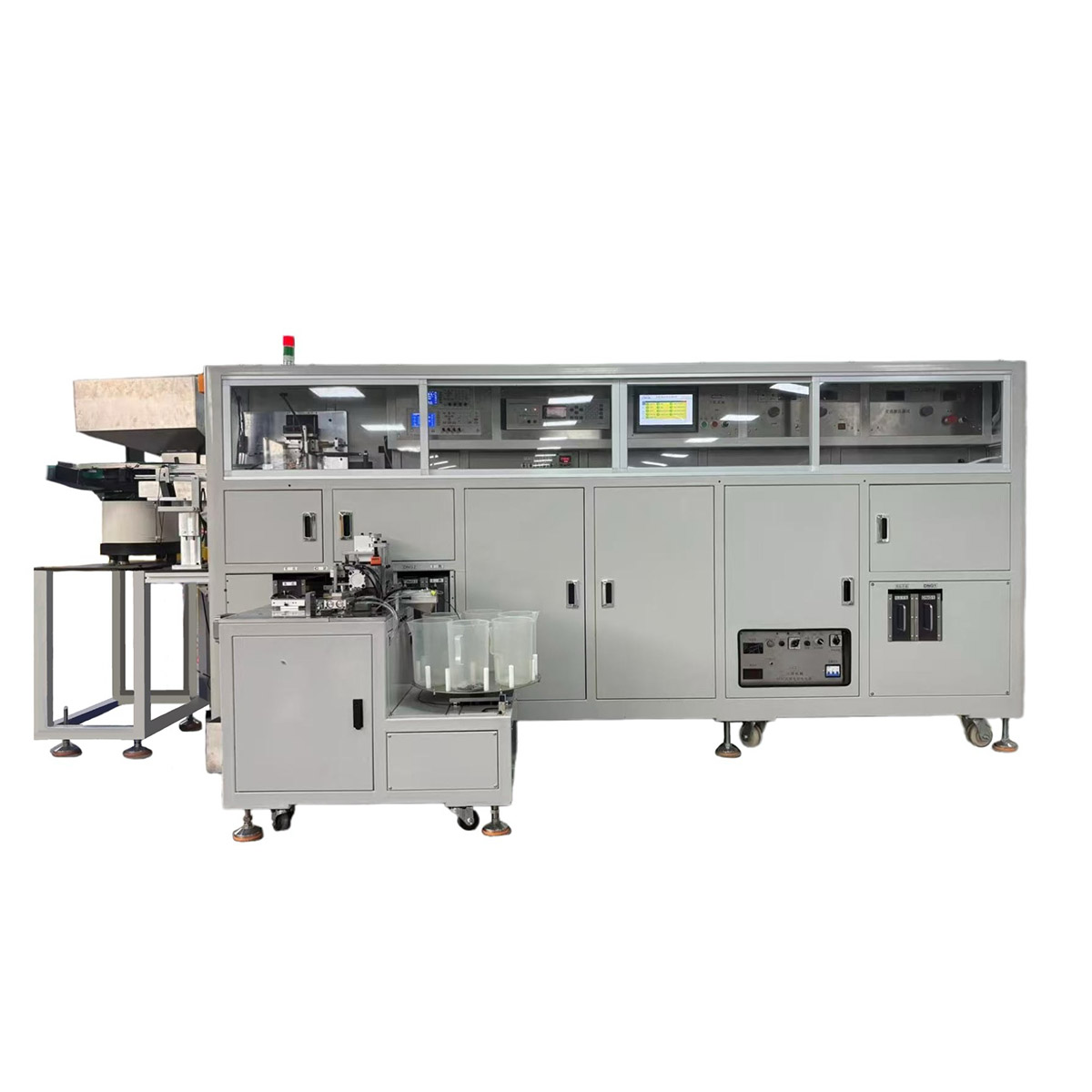

CX28026-X2 High-Frequency Safety Test Machine with Foot Trimming, Counting, and Barrel Collection

1. The mechanical conveying part adopts synchronous belt transmission:

• It overcomes the phenomenon of inaccurate positioning and unstable feeding test caused by the wear and stretching of traditional chains over a long period of time.

• The transmission noise is small and the transmission is light.

• It overcomes the phenomenon of dirt caused by chain oiling.

2. Feeding part: The cam manipulator handover method is adopted, and the feeding is accurate and stable, with a high feeding rate.

3. The feeding transmission has a foot calibration function, and the accuracy of the calibrated products on the fixture is high, stable and reliable.

4. Fixture part:

• The fixture is carefully designed and has a reasonable structure. The tower spring and the clamping teeth are used to improve the clamping degree. The material is ABS.

• The copper head of the entire fixture is designed on the side of the fixture, not directly above or below the fixture, to avoid copper powder falling into the fixture after wear, affecting the cleanliness and insulation of the fixture, and the fixture does not need to be cleaned.

5. The test piece directly contacts the product leads without an intermediate link. Advantages:

• Low impedance, accurate and reliable test.

• The four terminals directly contact the product leads, and can measure high frequencies, such as 100KHZ or higher.

• The test end face has knurling treatment (the end face is concave and convex) to prevent the phenomenon of inaccurate impedance test caused by dirt generated by contact.

• The test piece contacts the product position with high consistency, and the 100KHZ high-frequency test value is stable and reliable.

6. The machine transmission design adopts high-precision cam transmission, which is low noise, stable and reliable.

7. The normal operating speed of the machine is 100 pieces/minute.

8. In addition, our company's test machine has extended functions, such as:

• Laser marking;

• Needle calibration and foot cutting function;

• Packaging and box arrangement function;

• DVDT test function;

• Low function consumption test function;

• CCD appearance detection function;

• ESR test.

9. Capacity, loss and insulation can all be set up by the touch screen, with functions such as data collection, capacity distribution diagram and data analysis.

The high-frequency Barrel Collection Test Machine is an automated device specifically designed for testing high-frequency parameters and is widely used in the production processes of electronic components, network transformers and other products. It achieves 100% testing of high-frequency parameters of products through automation technology, thereby significantly improving detection efficiency and product quality.

Its independently developed automated high-frequency testing machine not only realizes comprehensive testing of high-frequency parameters of products, but also significantly reduces labor costs, improves production efficiency and product consistency. High-frequency Barrel Collection Test Machines are an indispensable part of modern electronic manufacturing. Through automated and intelligent means, they ensure high-quality and high-efficiency production of products.
