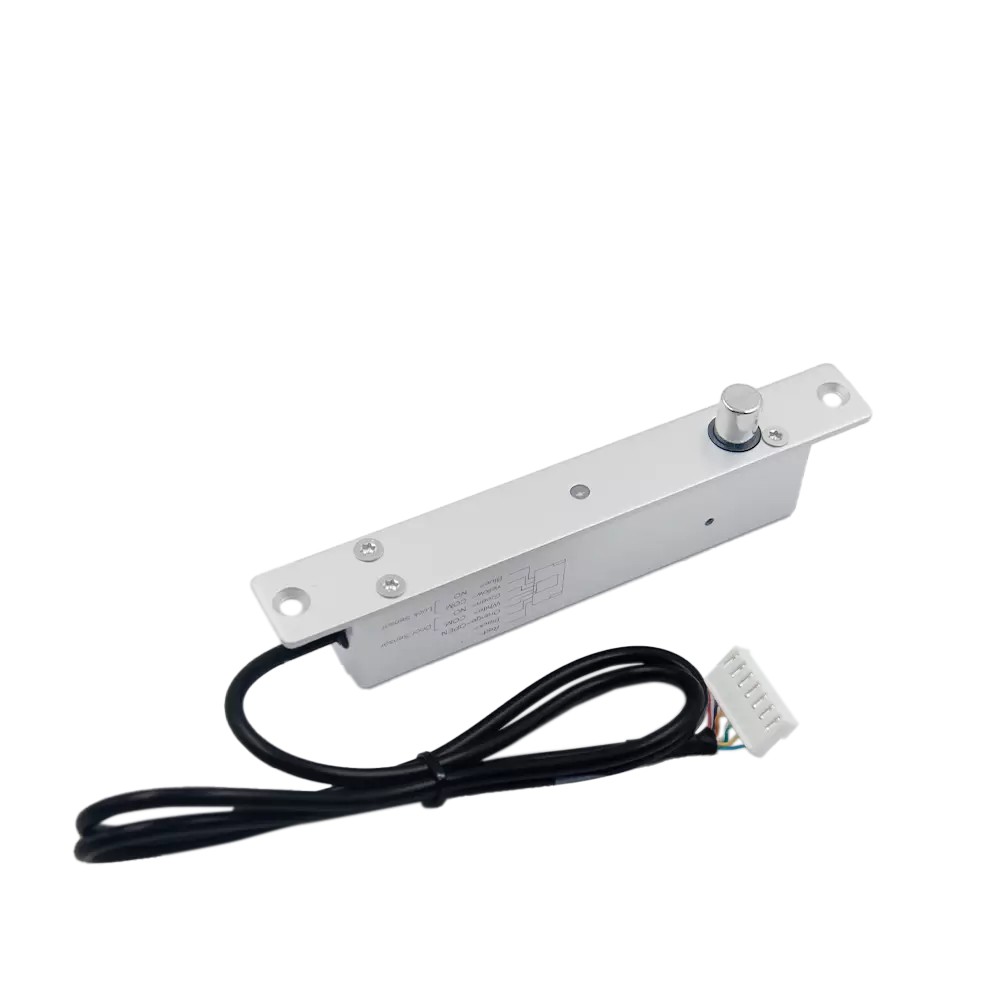

DZ636-E Electronic Lock
The DZ636-E Electronic Lock is a reliable and compact locking solution designed for modern cabinets and industrial enclosures.
https://www.shengjiuglobal.com/electronic-lock/DZ636-E.html
Unlocking Methods: Power-on Unlocking, Emergency Unlocking
Main Materials:Lock Body: Q235, Electrophoretic Black
Technical Parameters: Lock Bearing Capacity: ≥600N Load Unlocking: ≥200N Working Voltage: DC4.0-5.5V Working Current: ≤0.5A Neutral Salt Spray: 48h Operating Temperature: -20~70℃ Executive Mechanism: Electric Machinery
Interface Definition: Type: XH2.54-2Y Red Wire: VCC Black Wire: GND Yellow Wire: Status Output Wire GreenWire: Status Output Wire
Notes: The two status wires are open-circuited when the lock is unlocked, and short-circuited when the lock is locked
Technical Parameters
| Performance Parameters | |
| Specification | Details |
| Operating Voltage | DC 12V |
| Operating Current | ≤2A |
| Average Working Current | 300mA |
| Standby (Sleep) Current | ≤30mA |
| Operating Temperature | -20℃+65℃ |
| Lock Service Life | 10000 Cycles |
