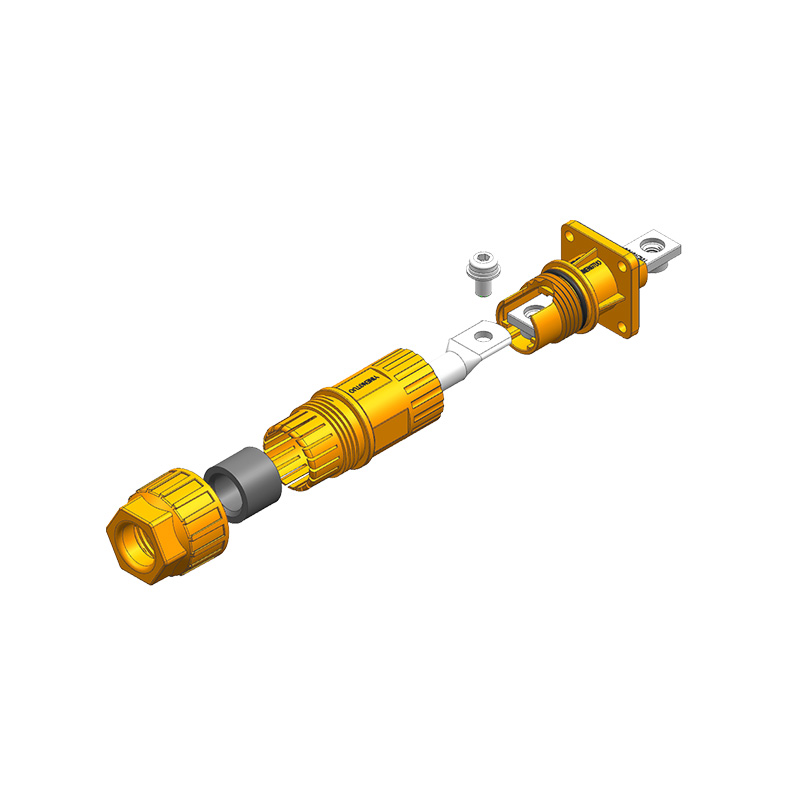

EC-E05 150A Energy Storage Connector
1、Model: EC-E05
Name: 150A Energy Storage Connector
2、Application: Battery connection for photovoltaic energy storage inverters and energy storage systems
1、Model: EC-E05
Name: 150A Energy Storage Connector
2、Application: Battery connection for photovoltaic energy storage inverters
and energy storage systems
3、Main Technical Parameters:
1. Rated current: 150A
2. Rated voltage: 1500V
3. Withstand voltage: 2500VAC
4. Protection level: IP67
5. Fire rating: UL94 V-0
6. Operating temperature: -40℃ to 90℃
7. Salt spray test: 48H
8. Connection cable: 35mm²
9. Minimum 500 uses
10. Complies with TUV
4、Technical Advantages: Simple structure, reliable waterproofing,
independently developed
