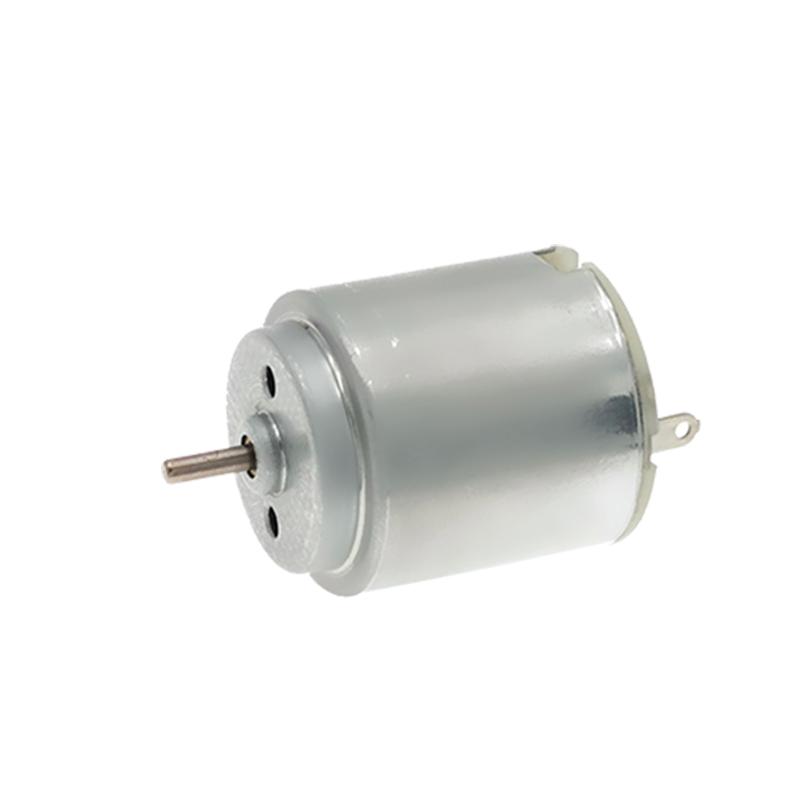

Ecomotor-R260E Brushed DC Micro Motor(Toy)

The R260E series represents a compact and efficient solution designed for small-scale electromechanical systems requiring stable speed control, reliable torque output, and optimized energy consumption. Built for toy-grade and miniature device applications, this motor series focuses on balancing high rotational speed with controlled current behavior, ensuring consistent performance under varying load conditions.

Engineered with precision winding structures and stable magnetic circuit design, the R260E platform delivers dependable operation across different voltage configurations. Its performance characteristics make it suitable for systems where compact size, low energy loss, and smooth mechanical response are essential.

R260E Brushed DC Micro Motor(Toy) Electrical and Mechanical Design Overview

The R260E Brushed DC Micro Motor(Toy) is constructed using a high-efficiency brushed commutation system combined with a compact rotor-stator configuration. The internal structure is optimized to reduce friction losses while maintaining strong electromagnetic conversion efficiency.

The motor operates through a stable DC input system, where current regulation directly influences rotational speed and torque output. Precision-balanced armature components reduce vibration, ensuring smoother motion behavior in compact mechanical assemblies.

Thermal stability is also a key design factor. The motor housing is engineered to support continuous operation by effectively dissipating heat generated during high-speed rotation cycles.

Performance Characteristics at 4.5V Operating Condition

Under a 4.5V rated input, the R260E series demonstrates strong no-load speed performance and stable efficiency characteristics suitable for high-speed miniature applications.

For model R260E-NN-18130, the motor achieves a no-load speed of 9621 rpm with a current draw of 0.101A, reflecting efficient energy utilization at minimal load conditions. At maximum efficiency, the motor operates at 7768 rpm, producing a torque output of 11.6 g·cm with an efficiency level reaching 48.3%. Under maximum output conditions, it maintains stable performance at 4811 rpm, delivering up to 30.0 g·cm torque and 1.48W output power, while stall torque reaches 60.0 g·cm, demonstrating strong load-handling capability for compact mechanical systems.

This configuration is optimized for applications requiring rapid acceleration response and stable mid-load torque behavior, ensuring consistent motion performance in dynamic operating environments.

Performance Characteristics at 3V Operating Condition

The R260E-NN-18150 model is designed for lower voltage systems where energy efficiency and controlled speed output are critical. At a rated voltage of 3V, the motor achieves a no-load speed of 5710 rpm with a current consumption of 0.083A, reflecting strong efficiency in low-power applications.

At maximum efficiency, it operates at 4495 rpm, generating 10.5 g·cm torque with an efficiency level of 52.4%, indicating improved energy conversion under optimized load conditions. At maximum output, the motor delivers 2855 rpm, producing 24.6 g·cm torque and 0.72W output power, while stall torque reaches 49.2 g·cm, ensuring reliable startup and load resistance capability.

This configuration is particularly suitable for compact systems requiring stable low-voltage operation with controlled energy consumption and consistent torque delivery.

Structural Optimization and Commutation System Stability

The brushed commutation system used in the R260E Brushed DC Micro Motor(Toy) is designed to maintain consistent electrical contact under continuous rotation conditions. Brush material composition and commutator surface treatment are optimized to reduce wear and improve conductivity stability.

Rotor balancing techniques are applied to minimize vibration during high-speed operation, contributing to improved mechanical stability and reduced acoustic output. These structural enhancements ensure long operational lifespan and consistent performance behavior across different load conditions.

Energy Efficiency and Torque Control Behavior

The R260E series is engineered to maintain a stable relationship between voltage input, rotational speed, and torque output. By optimizing coil resistance and magnetic field distribution, the motor achieves efficient energy conversion while minimizing internal losses.

Speed regulation remains predictable under varying load conditions, allowing precise control in compact mechanical systems. Torque output is designed to remain stable across mid-load ranges, ensuring smooth mechanical transitions without abrupt performance fluctuations.

Application-Oriented Design Considerations

The R260E platform is designed for compact electromechanical systems where space constraints require high power density. Its performance characteristics make it suitable for small drive mechanisms that demand consistent rotational output and reliable torque response.

The motor’s dual-voltage configuration supports flexible system integration, enabling adaptation across different power supply environments without requiring major structural modifications.

Quality Stability and Manufacturing Consistency

Each unit of the R260E Brushed DC Micro Motor(Toy) is manufactured under controlled precision processes to ensure consistent winding accuracy, magnetic alignment, and assembly tolerance control. These manufacturing standards help maintain uniform performance across production batches.

Quality verification includes speed testing, torque measurement, and current stability evaluation to ensure compliance with design specifications. This ensures that each motor delivers predictable and reliable performance in real-world operating conditions.

Conclusion

The R260E series combines compact structural design with stable electrical and mechanical performance, offering reliable operation across both 3V and 4.5V configurations. With strong torque characteristics, controlled speed behavior, and optimized efficiency, it provides a dependable solution for miniature motion systems requiring consistent and efficient drive performance.
