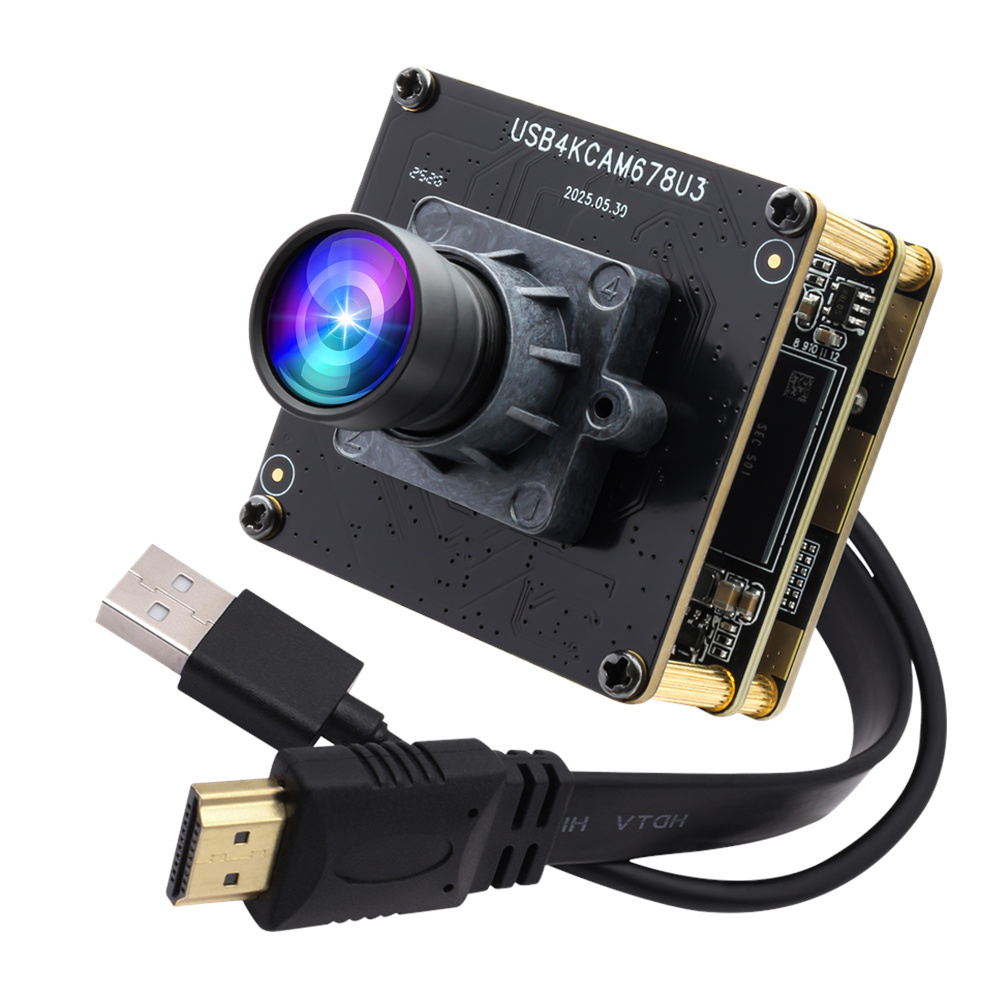

ELP 4K 60fps USB 3.0 HDMI Camera Module | IMX678 Low‑Light Sensor | USB‑C & HDMI Dual Output

ELP IMX678 4K 60FPS H.264 Camera Module HDMI USB 3.0 Simultaneous Streaming No distortion Mini Webcam for PC Windows Linux Android

High‑Resolution Sensor: Features a 1/1.8” IMX678 Color CMOS sensor supporting up to 4K UHD resolution (3840×2160).

Low‑Light Performance: The IMX678 sensor delivers significantly better image quality in low‑light conditions compared to other sensor like IMX415

High‑Speed Video Output: Capable of driving MJPEG 4K at 60 fps, H.264 4K at 60 fps, YUY2 1080p at 60 fps, and HDMI 4K at 60 fps.

Efficient USB 3.0 Interface: Utilizes a high‑speed USB 3.0 Type‑C connection for low‑power operation and fast data transfer.

Dual Simultaneous Outputs: Provides both USB 3.0 Type‑C and HDMI outputs at the same time for flexible monitoring and recording.

No distortion Lens: Includes a high-quality, No distortion lens to produce vivid, accurate colors and sharp images with minimal aberration

UVC Compliance & Plug‑and‑Play: Works instantly with PCs, laptops, Android devices, and Raspberry Pi via USB without additional drivers; HDMI connects directly to monitors or TVs.

Broad Application Range: Ideal for online teaching, webcasting, video conferencing, live streaming, MR, security, medical devices, industrial inspection, R&D, education, document scanning, high‑speed photography, and photo scanning.

High-Resolution Imaging

Features a big 1/1.8″ IMX678 Color CMOS sensor that delivers stunning 4K UHD resolution (3840×2160), capturing exceptional detail and clarity for both still and moving images.

Low Light Performance

Equipped with the advanced IMX678 sensor, this camera provides significantly enhanced image quality in low-light environments compared to conventional sensors like the IMX415, ensuring clear and vibrant footage even in challenging lighting conditions.

High-Speed Video Output

Supports smooth and fluid video streaming with multiple format options, including MJPEG 4K at 60 fps, H.264 4K at 60 fps, YUY2 1080p at 60 fps, and direct HDMI 4K at 60 fps output.

Efficient USB 3.0 Connectivity

Utilizes a high-speed USB 3.0 Type‑C interface for fast data transfer and low-power operation, enabling reliable performance without compromising on efficiency.

Dual Simultaneous Outputs

Offers both USB 3.0 Type‑C and HDMI outputs at the same time, allowing flexible setup for real-time monitoring, recording, and streaming across multiple devices.

Versatile Lens with True-to-Life Imaging + 2X Digital Zoom

Comes with a high-quality, low-distortion lens featuring manual focus control, with 2X digital zoom, designed to produce vivid, accurate colors and sharp images with minimal aberration.

UVC Compliant & Plug-and-Play

Fully compatible with UVC standards, enabling instant recognition and operation on PCs, laptops, Android devices, and Raspberry Pi via USB, no additional drivers required. HDMI output connects seamlessly to monitors or TVs.

Camera Module Size:

Model	ELP-USB4KCAM678U3-V100 (V100 No distortion Lens, HFOV 102degree) Optional Model: ELP-USB4KCAM678U3-V6 (V100 No distortion Lens, HFOV 65degree) ELP-USB4KCAM678U3-H85 (V100 No distortion Lens, HFOV 85degree) ELP-USB4KCAM678U3-H90 (V100 No distortion Lens, HFOV 90degree)
Sensor	1/1.8” SONY IMX678
Pixel Size	2.0µm x 2.0µm
Connecting Port Type	USB 3.0 Interface &HDMI v2.0 Interface
Display Modes	I. USBOutput II. HDMI Output III. USB Output +HDMI Output Simultaneous
HDMI Output	3840(H)*2160(V) HDMI 60fps
USB Output	Max / Default Resolution: 3840(H)*2160(V)
Video Compression	MJPEG / YUY2(YUYV) / H.264
Resolution & Frame Rate	3840x2160MJPEG60fps/H.26460fps/YUY215fps 2560x1440MJPEG60fps/H.26460fps/YUY230fps 1920×1080 MJPEG 60fps/ H.264 60fps / YUY260fps 1280×720 MJPEG 60fps/ H.264 60fps / YUY2 60fps 640×480 MJPEG 60fps/ H.264 60fps / YUY2 60fps
Image Processing Time	About 10 seconds after opening the preview software
Central Definition	1000LW/PH(Center)
S/N Ratio	41dB
Min illumination	0.05Lux
Shutter Type	Electronic Rolling Shutter/ Frame Exposure
AEC/AWB/AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure
Lens Parameter	f=3.24mm, No distortion, HFOV is approximately 100 Optional Lenses: M12 No distortion: 65°/ 85°/90°/100° M12 Normal: 25°/ 38°/ 94°/ 120°/130° M16: 58°/ 93°/ 110° (For other viewing angles, please contact us directly.)
Power Supply & Interface	USB Type-C Power Supply, Type-C & HDMI Display Simultaneous
Operating Voltage	DC 5V
Working Current	700-780mA
Dimension	38x38x54.8mm
Storage Temperature	-20°C to 80°C
Working Temperature	-10°C to 70°C
USB Cable	1.2m cable with Type-C port
HDMI Cable	1.5m cable with HDMI port
Operating System Request	Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC; MAC-OSX10.4.8 or later; Android5.x or above

Widely used in Commercial, Industrial, Medical,Automobile, Astronomical, Biological Field:

Ideal for diverse uses including online teaching, webcasting, video conferencing, live streaming, mixed reality (MR), security systems, medical imaging, industrial inspection, R&D, education, document scanning, high-speed photography, and photo digitization.

With its powerful zoom and long-distance focus capability, this camera is perfectly suited for Online-Teaching, Webcast, industrial camera, Video Conferencing, Live Streaming, Security, Medical device,Industrial Inspection, Scientific research and development, Education and Training, High Resolution Document Scan, High-speed photographic apparatus, Photo scanner etc.
