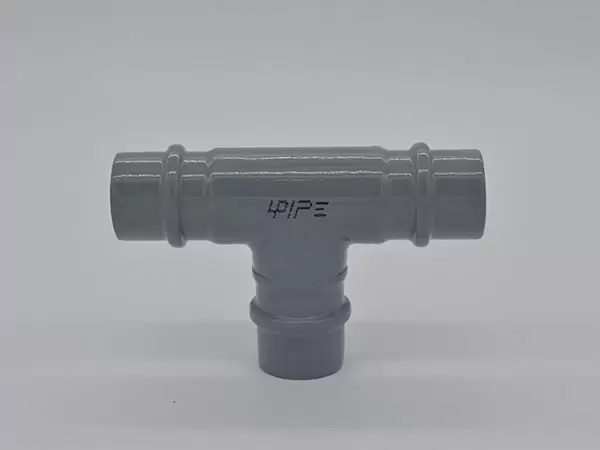

Equal Tee
• Transportation Medium: Compressed air, vacuum, inert gas (helium, nitrogen, argon and etc.) • Working Pressure: 16 bar • Working Temperature： -20℃~ +80℃/-60℃~ +180℃
Equal Tee
|
S.N |
Nominal Diameter(mm) |
W(mm) |
H(mm) |
|
11 0500 01 |

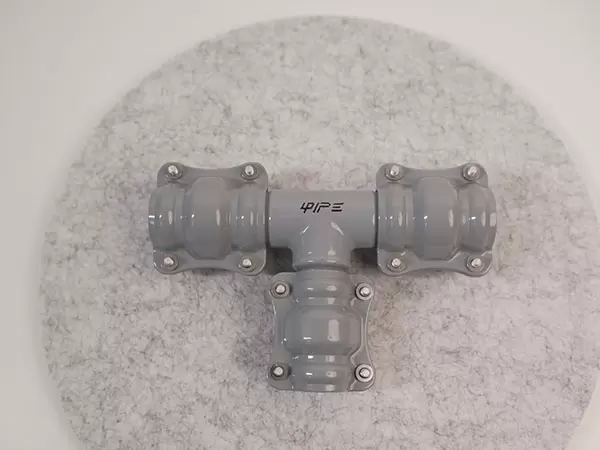

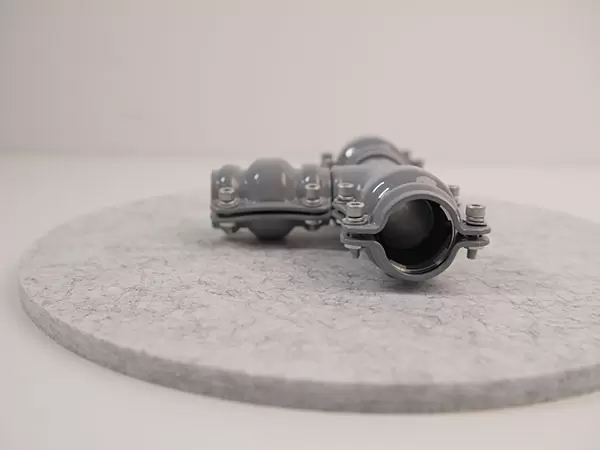

DN20(Assembled) |
151 |
99.5 |
|
22 0500 01 |
DN25(Assembled) |
157 |
105 |
|
11 0500 00 |
DN20 |
96 |
60.2 |
|
22 0500 00 |
DN25 |
102 |
65.6 |
|
44 0500 00 |
DN40 |
150 |
97 |
|
55 0500 00 |
DN50 |
160 |
107 |
|
66 0500 00 |
DN65 |
210 |
142.6 |
|
77 0500 00 |
DN80 |
230 |
161.2 |
|
88 0500 00 |
DN100 |
250 |
179.7 |
|
99 0500 00 |
DN125 |
274 |
203.3 |
|
CC 0500 00 |
DN148 |
320 |
237.9 |
|
BB 0500 00 |
DN200 |
380 |
296.3 |
