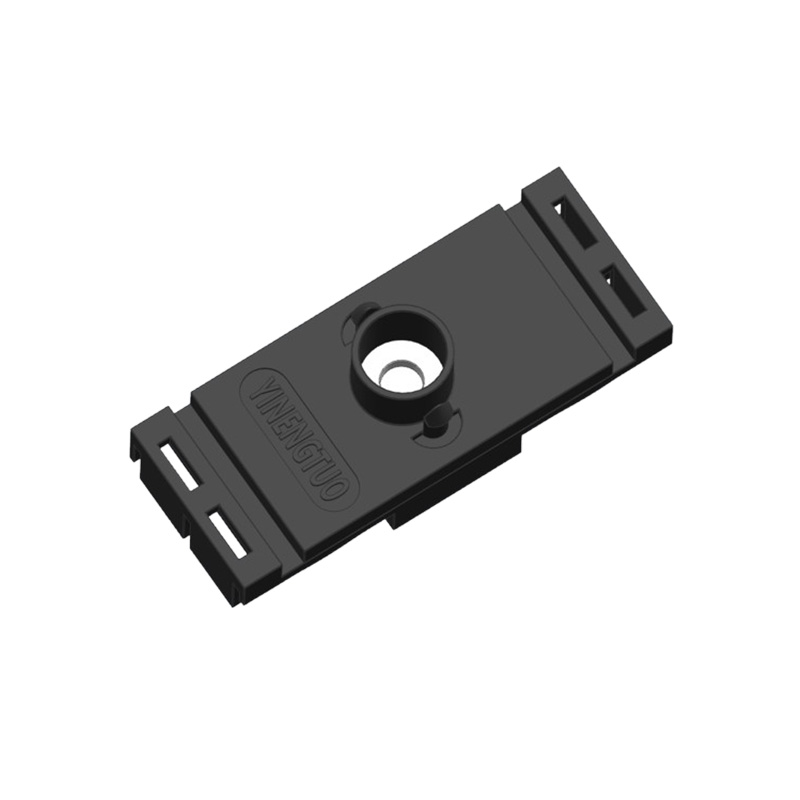

ET-TY-002 – Heat Dissipation Elastic Washer – 20X50 – M4

1. Through-hole diameter: 4.2mm;
2. Fixing screw: M3 or M4 standard screw;
3. Screw torque: 6~8 Kgf.cm (0.6~0.8 N.m);
4. Fixing type: fixes two tubes (chips);

1. Through-hole diameter: 4.2mm;

2. Fixing screw: M3 or M4 standard screw;

3. Screw torque: 6~8 Kgf.cm (0.6~0.8 N.m);

4. Fixing type: fixes two tubes (chips);

5. Elastic deformation: 0.5mm~1.0 mm;

6. Installation distance: center distance between two tubes is about
30–31mm;

7. Chip size: 16×10, 20x16mm (such as TO-220, TO-247), etc.;

8. Chip thickness: about 3~6mm;

9. Ambient temperature: -40°C~150°C;

10. Flame retardant rating: UL94V-0;

11. Housing material: PA+35GF;

12. Spring clip material: spring steel;All materials comply with RoHS
requirements;Appearance requirements: no burrs, flash, mold marks, or other
defects that affect product function.
