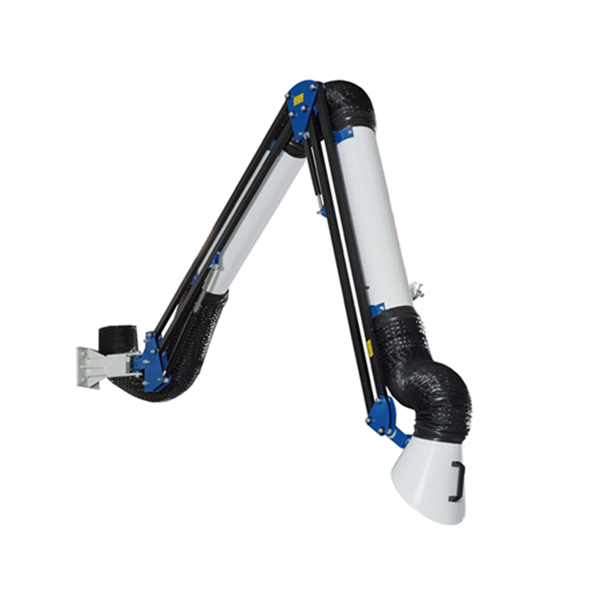

External Suction Arm

Features:
● Persistent tightness
● Arm keeps position due to self-supporting design
● Fast operation due to particularly flexible adjustment
● User-friendly due to particularly smooth movement of the hood with one hand
● Various options to connect the exhaust arms to fans, stationary devices or via duct work to central extraction and filtration systems

Introduction:

External joint suction arm is suitable for sucking large amount offume, vapor
or non-explosive dust. The typical application workplace is metal processing and
other industrial workplace where large amount exhaust treatment is required.

The external joint suction arm can be applied to welding generates a lot of
flying sparkles, laser or manual plasma cutting, metal spraying, grinding, or
other processing that require mobile suction with excellent arm balance and easy
positioning.

Parameters:

Type & Specification	External Suction Arm	Extension Rod	Overlay External Suction Arm
Arm Length	Hose Diameter	Rod Length	Hose Diameter & Length
2 m	130/160mm	1/1.5/2 m	160mm, 1+2 m
3 m	130/160mm	2.5/3/4 m	160mm, 1+3 m
