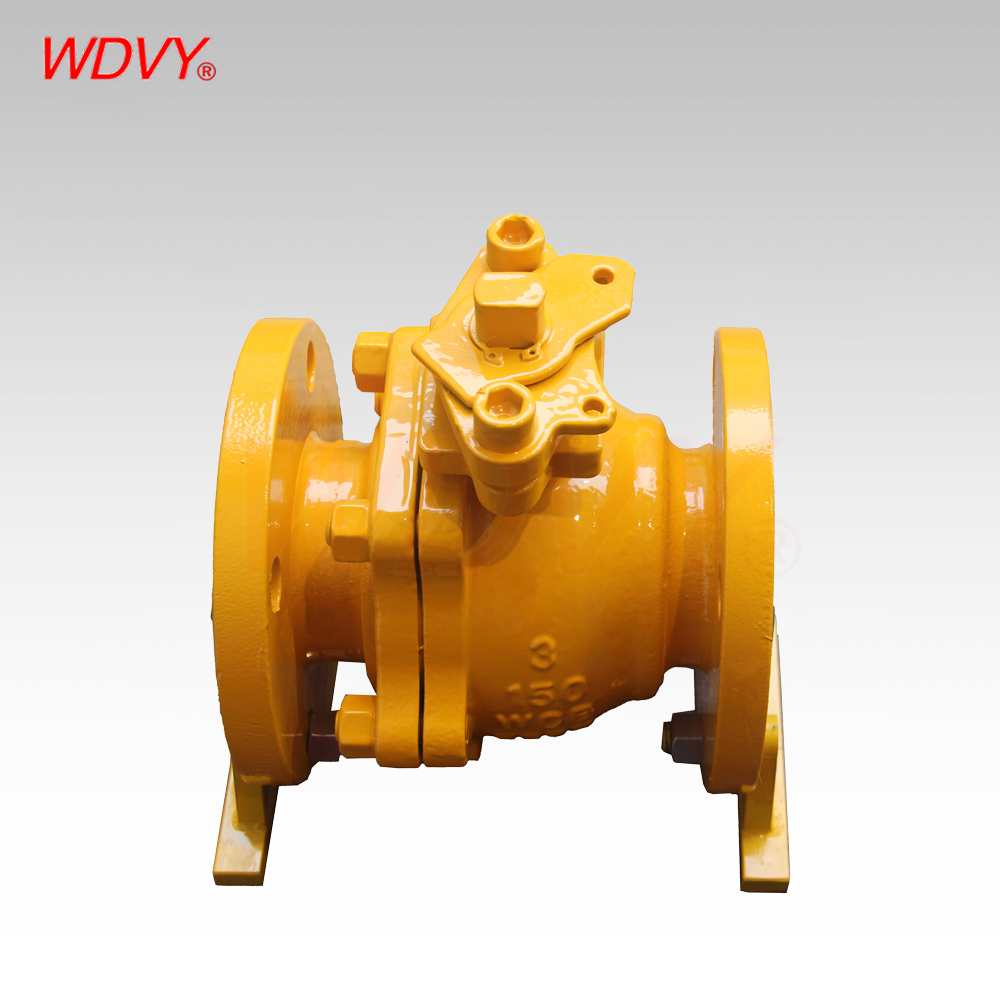

Floating Ball Valves Cast Steel
Low fluid resistance. Its resistance coefficient is equal to that of a pipe section of the same length.
Floating Ball Valves Stainless Steel – Premium Quality from China's Leading Manufacturer
Wandong Valve Product offers a comprehensive range of Floating Ball Valves Stainless Steel, engineered for durability and precision in various industrial applications. As a trusted Floating Ball Valves Stainless Steel supplier in China, we provide high-performance valves suitable for sectors such as oil and gas, chemical processing, water treatment, and more.
Floating Ball Valves Stainless Steel Applications
Oil & Gas: High-pressure transmission systems, natural gas distribution, LNG transportation, and compressor stations.
Industrial Fluids: Water, steam, oils, acids, and non-corrosive gases (e.g., ammonia, oxygen).
Specialized Uses: Compatible with hydrogen-natural gas (H₂-NG) blends.
Floating Ball Valves Stainless Steel Main Features
Floating ball valves are specialized shut-off devices where the ball is not rigidly fixed to its rotational axis, allowing it to float freely between the valve seats. This design enables effective sealing via pressure acting on the ball, pushing it against the seats to prevent leakage.
Floating Ball Valves Stainless Steel Design Features
Full port or reduced port
Floating ball design
Blowout-proof stem
Fire safe, anti-static and anti-blowout stem design.
Casting or forging body
Fire safe design to API 607/ API 6FA
Anti-static to BS 5351
Cavity pressure self relief
Optional locking device
Floating Ball Mechanism: The ball moves freely under pressure to achieve bidirectional sealing, ideal for high-pressure differentials.
Compact Structure: Two-piece bolted body design, forged or machined from steel/stainless steel for durability.
Visual Position Indicator: Handle alignment (parallel or perpendicular to the pipeline) clearly shows open/closed status.
Low Flow Resistance: Full-bore design minimizes pressure loss.
Rapid Operation: 90° rotation for quick open/close.
Zero Leakage: Pressure-assisted sealing ensures tight shut-off.
Versatility: Suitable for high-pressure, cryogenic, and corrosive environments.
Floating Ball Valves Stainless Steel Product details
Valve structure: Floating type Ball Valve
Size:1/2” ~ 10”
Pressure Rating: 150LB ~ 300LB
Temperature: -196Deg. C ~ 600Deg. C
Material Available:
Valve Material: Stainless steel ASTM A182 F304 F304L F316/F316L/F51 F53 F55 Carbon steel ASTM A105, ASTM A350 LF2, Etc.
Seat Material: PTFE, RPTFE, DEVLON, Molon,PEEK,Metal Seat
Operation:Wrench, Lever, Gear box, Pneumatic actuator, Electric actuator, Etc.
Floating Ball Valves Stainless Steel Benefits
-
Enhanced Sealing Performance: The floating ball design ensures reliable sealing under varying pressure conditions.
-
Ease of Operation: Quarter-turn operation allows for quick and easy valve actuation.
-
Minimal Maintenance: Durable construction reduces the need for frequent maintenance and downtime.
-
Cost-Effective Solutions: Competitive pricing and wholesale options make these valves an economical choice for large-scale projects.
Floating Ball Valves Stainless Steel Technicals Standard
Design Standard: API 6D, ASME B16.34, API 608, BS 5351, MSS SP-72
Face to Face: API 6D, ASME B16.10, EN 558
End Connection: ASME B16.5, ASME B16.25
Inspection and Test: API 6D, API 598
Floating Ball Valves Stainless Steel Applications
-
Chemical Processing: Handling corrosive and hazardous fluids.
-
Oil and Gas: Flow control in upstream and downstream operations.
-
Water Treatment: Regulating water flow in treatment plants.
-
HVAC Systems: Controlling heating and cooling fluid circulation.
Choose Wandong Valve Product for your Floating Ball Valve needs and experience the perfect blend of quality, performance, and value.
FAQ
Q: Are you a manufacturer or trading company?
A: We are a professional valve manufacturer with 15+ years of experience.
Q: What payment terms do you accept?
A: T/T (30% deposit, 70% before shipment), L/C at sight, Western Union.
Q: What's your packaging standard?
A: Standard export packaging with wooden cases/cartons, waterproof wrapping, and shockproof protection.
Q: What's your warranty policy?
A: 12-18 months warranty from shipment date, excluding normal wear and improper operation.
Q: What applications are your valves suitable for?
A: Our valves are widely used in:
– Oil & gas pipelines
– Chemical processing plants
– Water treatment systems
– Power generation facilities
– Pulp & Paper Manufacturing
Q: What certifications do your products have?
A: Our valves have ISO 9001, API 6D, CE, and other international certifications. We support OEM/ODM services.
Q: What materials do you use for valve production?
A: We use:
– Carbon steel, Stainless steel
– Bronze, brass
– Alloy steel, Monel alloy, Chromium-nickel-inconel alloy, Hastelloy alloy, Duplex stainless steel, Copper alloy and other special steels.
Q: What's your production lead time?
A: Standard products: 15-30 days after deposit
Customized products: 30-45 days (depending on complexity and quantity of valves)
Q: Do you provide installation guidance?
A: Yes, we provide detailed installation manuals, technical drawings, and online support.
