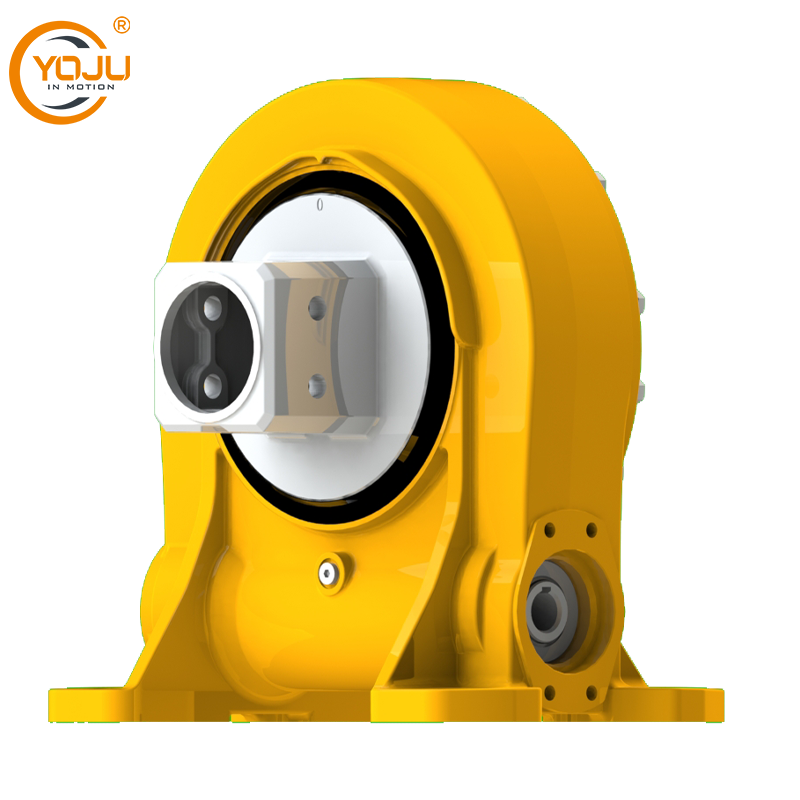

FV9D Slewing Drive for Solar Tracking System

FV/FM Series Specification:

The FV/FM family has enclosed housing and double oil seal design to minimize the frequency of maintenance. The customized housing for the solar tracking system can be directly installed on the tracker, reducing the overall cost of the tracker and saving installation time and procedures.

High tracking accuracy, High wind load resistance, Special design and materials used has 25+ years working life.

FV/FM Series Features:

● Design for Single Axis Trackers or applications requiring horizontal axis output;

● Double oil seal design, IP65, stronger anti-ultraviolet and anti-aging ability, less maintenance;

● Self-Locking gearset;

● Input, output and mounting are customizable;

● Single Point/ Multiple Points drive system optional;

● Hour-glass worm for more gear contact and longer working life.

FV/FM Series Performance Parameters:

Output Speed	Holding Torque	Rated Output Torque	Output Torque (Max.)	Gear Ratio	Tracking Precision	IP Class	Temperature
＜0.15RPM	60 KN.M	7000 N.M	12500 N.M	61:1	≤0.2°	IP 65	-35~+70℃
＜0.15RPM	44280 Ibf.Ft	5161 Ibf.Ft	9225 Ibf.Ft	61:1	≤0.2°	IP 65	-35~+70℃
