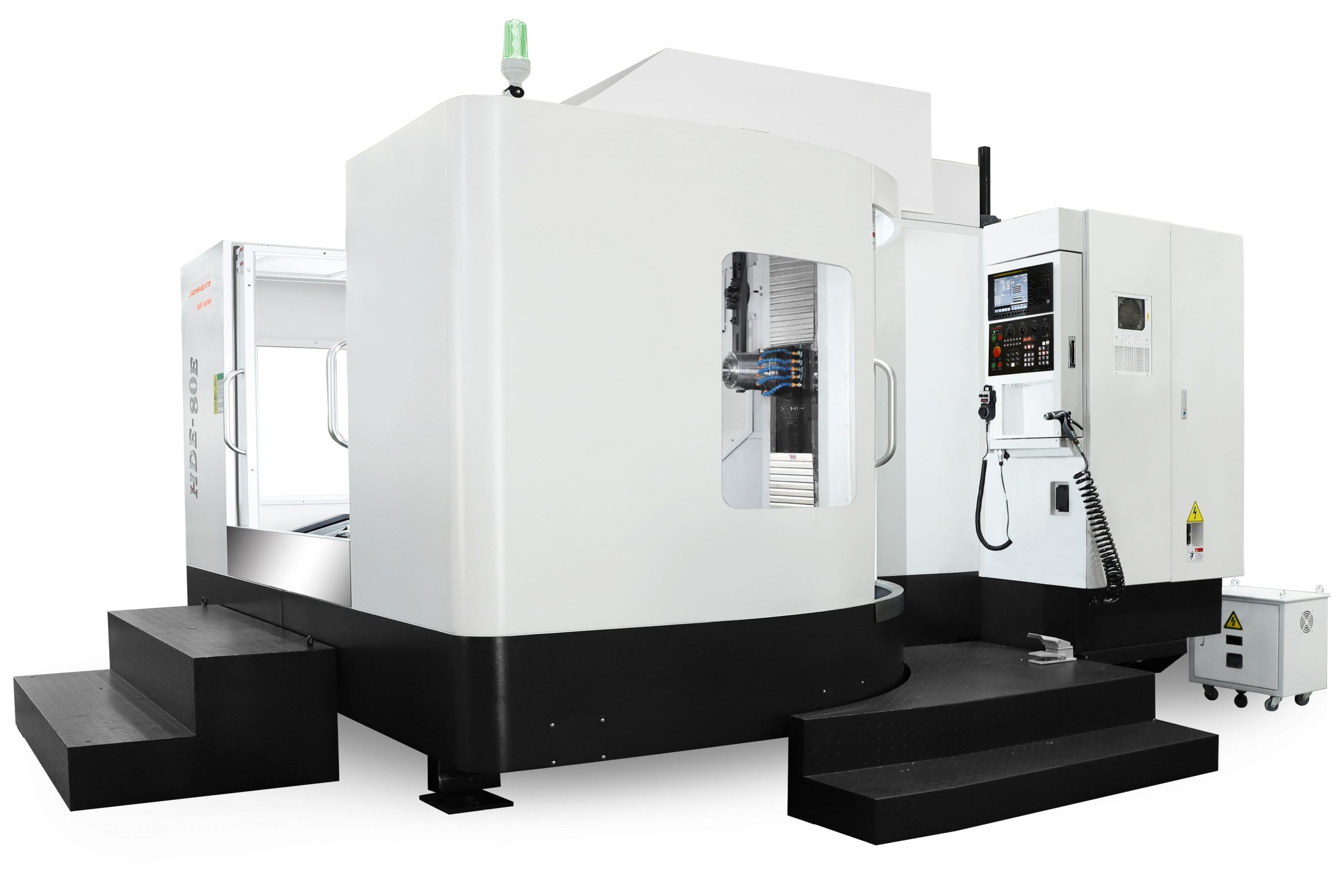

The HDE-80E CNC Horizontal Machining Center is engineered for demanding machining applications in the communication equipment, precision machining and aluminum alloy industries. Its structural design combines a rigid one-piece machine bed with an enclosed drive and linear guide arrangement, creating a stable platform for accurate and consistent machining.

The machine is equipped with a BBT#50 belt-driven spindle, a precision YRT rotary table and a standard 30-tool automatic tool magazine. Together with dedicated spindle cooling and cutting-fluid management features, the HDE-80E provides a practical configuration for complex component machining and high-efficiency production.

Product Details

Integrated Structural Design

The HDE-80E features a unified machine bed casting that provides a rigid structural base for machining operations. The enclosed arrangement of the drive and linear guide components helps improve structural stability and supports smooth movement along the machine axes.

This design is intended to provide a reliable machining platform for applications where rigidity, accuracy and consistent operation are essential.

Efficient Spindle Cooling

A ring water spray function is provided as a standard spindle configuration. The machine also integrates a cutting-fluid system and an internal air curtain based on a negative-pressure design.

Together, these features assist with heat management and help maintain spindle performance during extended machining operations while contributing to longer tool service life.

BBT#50 Belt-Driven Spindle

The HDE-80E is equipped with a BBT#50 (ISO50) belt-driven spindle operating from 40 to 6000 rpm.

The spindle provides 15 kW continuous power and 18.5 kW for 30 minutes, offering a practical balance between cutting rigidity, spindle speed and machining capability.

Precision Rotary Table

The machine uses a YRT precision grinding rotary table with 0.001° continuous B-axis indexing. This fine angular positioning capability is suitable for multi-face and complex component machining.

The 800 × 800 mm working table supports a maximum load of 2000 kg, providing capacity for relatively large and heavy workpieces.

Automatic Tool Changing

A 30-disc automatic tool changer is included as standard, with a 40-tool option available.

The tool magazine accommodates tools up to 350 mm in length and 18 kg in weight. The maximum tool diameter is Φ110 mm, or Φ200 mm when adjacent tool positions are not occupied.

This automatic tool management configuration helps simplify machining processes involving multiple tools and complex part geometries.

Machining Capacity

The HDE-80E provides 1400 mm of X-axis travel, 950 mm of Y-axis travel and 900 mm of Z-axis travel, giving the machine a substantial working envelope.

The spindle-to-table distance ranges from 135 to 1035 mm, while the spindle-center-to-working-table-surface distance is specified at 135–1050 mm.

The worktable measures 800 × 800 mm, has a maximum loading capacity of 2000 kg, and provides a 1350 mm rotary diameter. The table is equipped with 22 × 7 × 100 mm T-slots.

Feed and Positioning Performance

Rapid feed rates reach 24 m/min on the X, Y and Z axes, with a B-axis rapid feed rate of 10 m/min. The cutting feed rate is 8000 mm/min.

The HDE-80E is also specified with positioning and reproduction accuracy according to JIS B6338 and VDI/DGQ3441 standards, supporting precise and repeatable machining operations.

Applications

The HDE-80E is suitable for manufacturing environments that require rigid horizontal machining, accurate rotary positioning and automated tool management.

Typical applications include:

Communication equipment components
Precision-machined parts
Aluminum alloy components
Complex industrial components
Multi-face machining
Large and heavy workpiece processing

Its large machining travel, high table loading capacity and BBT#50 spindle make it suitable for a range of demanding component-processing requirements.

Product Specifications

ITEM	UNIT	HDE-80E
Travel
X-axis travel	mm	1400
Y-axis travel	mm	950
Z-axis travel	mm	900
Distance from spindle to table surface	mm	135-1035
Distance from spindle center to working table surface	mm	135-1050
Worktable size
Size of working table(X*Z)	mm²	800×800
Max. loading capacity of working table	kg	2000
B-axis indexing (continuous indexing)		0.001
T-slot (quantitywidth distance)	mm	22x7x100
Rotary diameter of working table	mm	1350
Spindle
Spindle speed	rpm	40-6000
Spndle drive form		Belt driven
Spindle power (continuous/30 min)	kW	15/18.5
Spindle bore specification	#ISO	BBT#50(IS050)
Spindle feed rate
Rapid feed rate（X/Y/Z/B)	m/min	24/24/24/10
Cutting feed rate	mm/min	8000
Tool magazine
Tool magazine capacity(standard/optional)		30(40)
Max. tool diameter of tool/Maximum tool diameter of adjacent tools	mm	Φ110/Φ200
Maximum tool length	mm	350
Maximum tool weight	kg	18
Accuracy
Positioning accuracy (full stroke)	(JIS B6338)	±0.005/300
Reproduction accuracy (full stroke)	(VDI/DGQ3441)	0.015
Reproduction accuracy	(JIS B6338)	±0.003/300
Reproduction accuracy	(VDI/DGQ3441)	0.01
General specifications
Power demand	kVA	45
Cutting fluid capacity	I	300
Lubricating oil tank capacity	I	6
Machine weight	kg	17000
Machine height	mm	3200
Floor space (L*W)	mm²	4000×4000

Why Choose HDE-80E?

The HDE-80E CNC Horizontal Machining Center brings structural rigidity, large machining capacity, precision rotary positioning and automated tool changing together in a single horizontal machining platform.

Its integrated bed structure supports machining stability, while the BBT#50 belt-driven spindle and dedicated cooling arrangement are designed for reliable cutting performance. The 0.001° continuous B-axis indexing provides fine angular positioning for complex machining tasks, and the standard 30-tool automatic tool changer reduces manual tool intervention.

With substantial axis travel, a 2000 kg table loading capacity, precision positioning specifications and a configuration developed for communication, precision machining and aluminum alloy applications, the HDE-80E is suited to manufacturers seeking a capable solution for complex industrial component processing.
