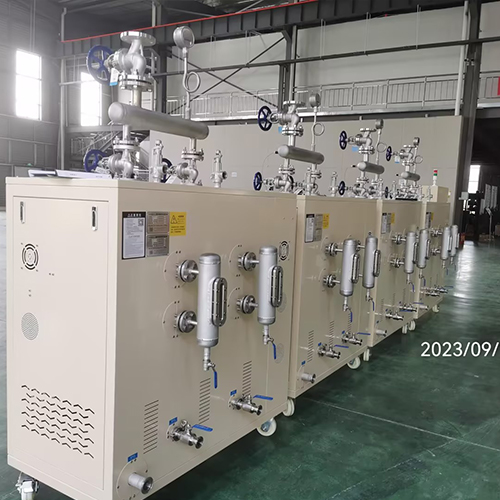

High pressure electric Steam Generator
Brand: NobethManufacturing Level: BPower Source: ElectricPower: customizable Rated Steam Production: customizableRated Working Pressure: customizableSaturated Steam
Brand: Nobeth
Manufacturing Level: B
Power Source: Electric
Power: customizable
Rated Steam Production: customizable
Rated Working Pressure: customizable
Saturated Steam Temperature: customizable
Automation Grade: Automatic
Description:
As a professional manufacturer with over 26 years of experience in the steam industry, our standard steam generators are designed for a pressure of 0.7 MPa. However, we can also customize units to meet higher pressure requirements based on customer needs.
In fact, approximately 50% of our equipment is tailor-made for specific client applications. We have extensive experience providing customized steam solutions across various industries, including medical, pharmaceutical, biotechnology, chemical, and food processing, delivering specialized thermal energy support where needed.
|
Temperature and Saturated steam Comparison Table |
|||||||||
|
Pressure |
Temperature |
Pressure |
Temperature |
Pressure |
Temperature |
Pressure |
Temperature |
Pressure |
Temperature |
|
0.8 |
174.53 |
2.8 |
230.89 |
4.8 |
261.44 |
6.8 |
283.50 |
8.8 |
301.11 |
|
0.9 |
179.03 |
2.9 |
232.76 |
4.9 |
262.69 |
6.9 |
284.47 |
8.9 |
301.90 |
|
1.0 |
183.20 |
3.0 |
234.57 |
5.0 |
263.92 |
7.0 |
285.42 |
9.0 |
302.69 |
|
1.1 |
187.08 |
3.1 |
236.34 |
5.1 |
265.14 |
7.1 |
286.37 |
9.1 |
303.48 |
|
1.2 |
190.71 |
3.2 |
238.07 |
5.2 |
266.34 |
7.2 |
287.31 |
9.2 |
304.26 |
|
1.3 |
194.13 |
3.3 |
239.76 |
5.3 |
267.52 |
7.3 |
288.23 |
9.3 |
306.03 |
|
1.4 |
197.36 |
3.4 |
241.42 |
5.4 |
268.68 |
7.4 |
289.15 |
9.4 |
305.79 |
|
1.5 |
200.43 |
3.5 |
243.03 |
5.5 |
269.83 |
7.5 |
290.06 |
9.5 |
306.55 |
|
1.6 |
203.35 |
3.6 |
244.62 |
5.6 |
270.96 |
7.6 |
290.96 |
9.6 |
307.30 |
|
1.7 |
206.14 |
3.7 |
246.17 |
5.7 |
272.08 |
7.7 |
291.85 |
9.7 |
308.05 |
|
1.8 |
208.82 |
3.8 |
247.68 |
5.8 |
273.19 |
7.8 |
292.73 |
9.8 |
308.79 |
|
1.9 |
211.39 |
3.9 |
249.17 |
5.9 |
274.27 |
7.9 |
293.60 |
9.9 |
309.52 |
|
2.0 |
213.85 |
4.0 |
250.63 |
6.0 |
275.35 |
8.0 |
299.47 |
10.0 |
310.25 |
|
2.1 |
216.23 |
4.1 |
252.07 |
6.1 |
276.41 |
8.1 |
295.32 |
10.5 |
313.82 |
|
2.2 |
218.53 |
4.2 |
253.48 |
6.2 |
277.46 |
8.2 |
296.17 |
11.0 |
317.26 |
|
2.3 |
220.75 |
4.3 |
254.86 |
6.3 |
278.50 |
8.3 |
297.01 |
11.5 |
320.57 |
|
2.4 |
222.90 |
4.4 |
256.22 |
6.4 |
279.52 |
8.4 |
297.85 |
12.0 |
323.87 |
|
2.5 |
224.99 |
4.5 |
257.56 |
6.5 |
280.53 |
8.5 |
298.67 |
12.5 |
336.89 |
|
2.6 |
227.01 |
4.6 |
258.87 |
6.6 |
281.53 |
8.6 |
299.49 |
13.0 |
339.90 |
|
2.7 |
228.98 |
4.7 |
260.16 |
6.7 |
282.52 |
8.7 |
300.30 |
14.0 |
345.66 |
