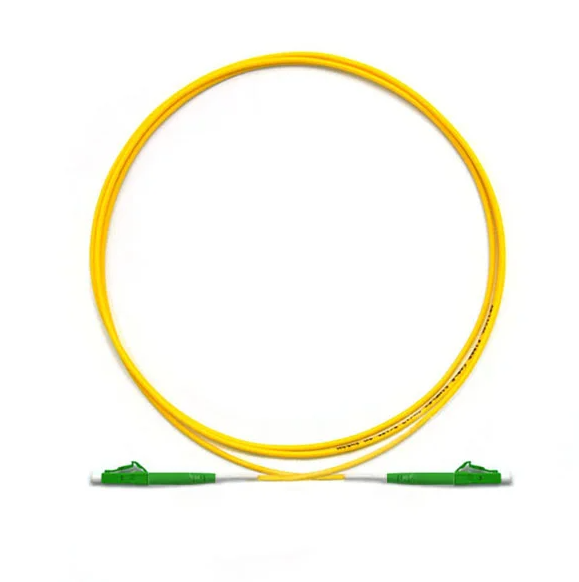

LC/APC – LC/APC Simplex Fiber Optic Patch Cord

Fiber optic patch cords are precision optical interconnection cables designed with fiber connectors on both ends. They are widely used to connect optical equipment, fiber distribution systems, termination points, and network devices, providing reliable signal transmission with low optical loss and high connection stability.

Designed for telecommunications, data centers, FTTX networks, and industrial optical applications, these patch cords support different fiber types, connector configurations, polishing methods, and customized lengths to meet various installation requirements.

Product Features

• Available in single mode (SM: 9/125μm core) and multimode (MM: 50/125μm or 62.5/125μm core) fiber options.

• Customizable cable lengths according to project requirements, including 0.5m, 5m, 10m, and other specified lengths.

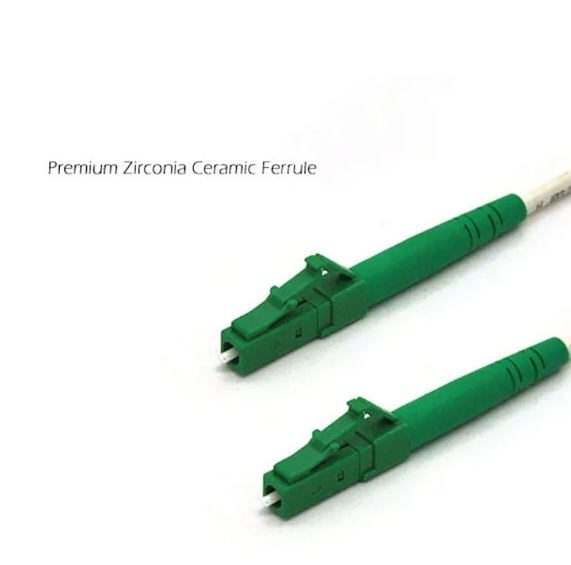

• Equipped with high-quality zirconia ceramic ferrules for accurate alignment and stable optical performance.

• Supports multiple connector end-face polishing types:

• PC (Physical Contact)

• UPC (Ultra Physical Contact)

• APC (Angled Physical Contact)

• Low insertion loss and low back reflection performance for efficient optical signal transmission.

• Excellent repeatability, mechanical stability, and temperature resistance.

• Suitable for different fiber optic network structures and equipment connection requirements.

Applications

Fiber optic patch cords are commonly used in:

• FTTX networks

• Data transmission systems

• Telecommunications infrastructure

• CATV networks

• LAN / MAN / WAN systems

• Optical testing and measurement equipment

• Fiber optic communication equipment interconnection

Product Specifications

Connector Options

Available connector types include:

• FC

• SC

• ST

• LC

• E2000

• MU

• MTRJ

• DIN

• D4

• SMA

• Others available upon request

Fiber and Cable Options

Fiber Type

Single Mode Fiber:

• 9/125-G652D

• 9/125-G655

• 9/125-G657A

• 9/125-G657A2

• 9/125-G657B2

• 9/125-G657B3

Multimode Fiber:

• 62.5/125-OM1

• 50/125-OM2

• 50/125-OM3

• 50/125-OM4

• 50/125-OM5

Fiber Brand

Available fiber brands:

• YOFC

• Corning

• Other brands available according to customer requirements

Cable Structure

• Simplex

• Duplex

• 4-core

• 6-core

• 12-core

• 24-core

• Customized configurations available

Cable Diameter

Available diameters:

• 0.9mm

• 2.0mm

• 3.0mm

Cable Length

• Customized according to application requirements

Ferrule and End Face Parameters

Optical Performance Parameters

Radius of Curvature

Ф2.5mm Ferrule

• UPC: 10-25mm

• APC: 5-15mm

Ф1.25mm Ferrule

• UPC: 7-25mm

• APC: 5-12mm

Apex Offset

• ≤50μm

Spherical Fiber Height

Ф2.5mm APC & UPC / Ф1.25mm UPC

• -100 to +50nm

Ф1.25mm APC

• -100 to +10nm

Mechanical Performance

Environmental Performance

Compliance Standards

The fiber optic patch cord complies with:

• RoHS

• IEC Standards

• GR-326 Standards

Customization Options

Customized solutions are available for:

• Fiber type selection

• Connector type

• Cable structure

• Cable length

• Jacket material

• Fiber brand selection

Fiber optic patch cords provide a reliable and flexible solution for optical network connections where low loss, high durability, and stable signal transmission are required.
