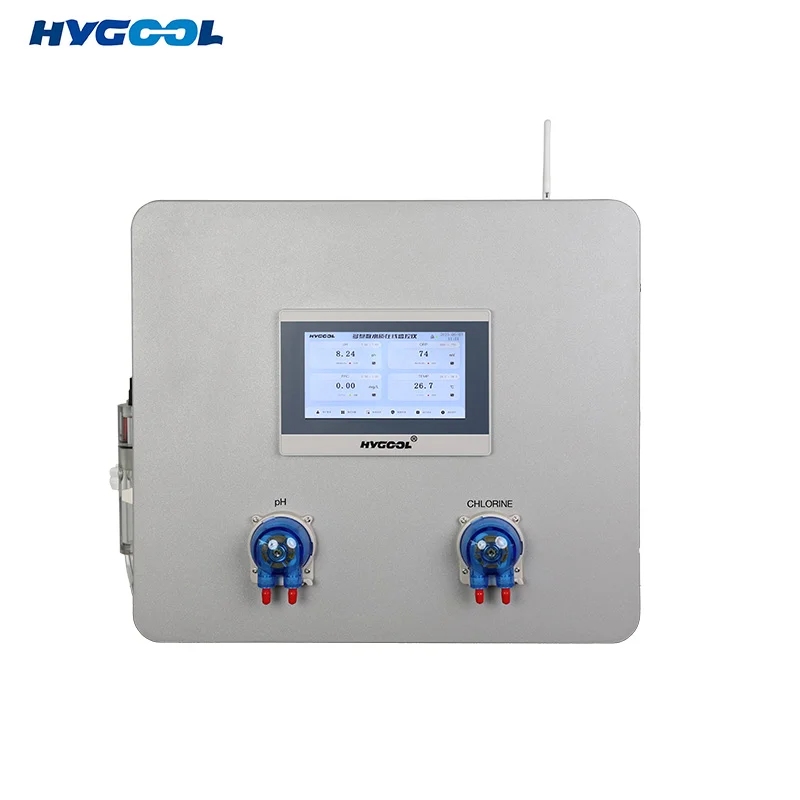

Measure control and dosing integrated system

The Measure, Control & Dosing System is an integrated water treatment control unit designed for automated monitoring and precise chemical dosing. It is equipped with multi-parameter sensors for free chlorine, ORP, pH, and temperature measurement, combined with a peristaltic pump dosing system to achieve continuous and intelligent water quality regulation.

The system features high sensitivity detection, stable operation, accurate measurement performance, and simple configuration. It complies with multiple international standards and is suitable for automated water treatment management in pools and similar applications requiring continuous water quality control.

Product Functions

• Real-time monitoring of pH / ORP / residual chlorine / temperature (4 parameters)

• Intelligent automatic dosing control based on sensor feedback

• Remote control via mobile phone and PC platform

• Integrated measurement, control, and dosing system design

• Supports on-site installation and remote technical guidance

System Configuration & Functional Modules

Monitoring System

• Simultaneous detection of four key water quality parameters

• Continuous real-time data updates

• Stable measurement output for long-term operation

Control System

• Built-in intelligent control algorithm

• Automatic adjustment of dosing output based on real-time water conditions

• Maintains stable water quality balance without manual intervention

Dosing System

• Dual independent peristaltic pumps

• Separate dosing channels for disinfectant and pH regulation chemicals

• Prevents cross-contamination between chemical lines

• Fully automatic dosing control capability

User Control Interface

• 7-inch high-definition touch screen

• Dual control mode: touchscreen + mobile application

• Simple parameter setting and operation interface

Cloud Management System

• Cloud-based data storage and historical records

• Water quality trend analysis and reporting

• API interface available for system integration

• Remote monitoring and data access via mobile or PC

Product Features

• 7-inch touchscreen display supporting simultaneous viewing of pH, ORP, chlorine, and temperature

• Flexible parameter configuration supporting multiple international standards

• Built-in temperature compensation for electrodes, improving measurement stability

• Strong anti-interference sensor design for complex water environments

• Wireless SIM card connectivity for remote monitoring and data access

• Pre-installed filtration unit for sampling water, suitable for complex pipeline systems

• Flow switch protection to prevent dosing when circulation system is inactive

• 5-channel relay output, capable of directly controlling dosing equipment under 2A load

• Cloud platform support for historical data download and trend analysis

• API interface for third-party system integration

• Integrated peristaltic pump system for automatic dosing of disinfectants and pH regulators

• Single-point calibration function with support for remote calibration assistance

Product Advantages

• 4-in-1 real-time monitoring system (pH / ORP / chlorine / temperature)

• Fully automatic dosing control system

• Remote intelligent management via mobile and computer

• High-precision measurement with stable long-term performance

• Integrated design combining monitoring, control, and dosing in one unit

• Supports installation guidance and remote commissioning services

Application Scope

Suitable for automated water quality control environments such as:

• Swimming pools

• Water circulation systems

• Industrial and commercial water treatment systems

• Constant water quality management applications requiring real-time monitoring and dosing control

Summary

The Measure, Control & Dosing System integrates multi-parameter sensing, intelligent control logic, automated chemical dosing, and cloud-based data management into a unified water treatment automation platform. It reduces manual operation requirements while ensuring stable and continuous water quality control in industrial and commercial environments.
