Open Frame Touch Panel PC 7-55 Inches (2C Series)

Product Introduction

The Open Frame Touch Panel PC 7-55 Inches (2C Series) is an industrial-grade touch panel computer designed for applications that require reliable touchscreen operation, flexible installation and long-term service. The series supports Rockchip RK3566, RK3568 and RK3588 processor options, with display sizes ranging from 7 inches to 55 inches.

Designed for smart manufacturing, digital workshops, smart retail, catering, medical informatics, smart logistics, warehousing and intelligent infrastructure, the 2C Series combines an integrated touchscreen, computing platform and multiple connectivity options in a compact industrial design.

The panel PC supports Android and Full HD/UHD multi-touch displays, providing a flexible solution for equipment manufacturers, system integrators and industrial automation projects.

Key Product Features

Industrial-Grade Design

The 2C Series is designed for long lifecycle applications and industrial environments. Its tailored integration supports different equipment configurations and installation requirements.

IP65 Front Protection

The front side features IP65 protection to help resist water and dust, making the panel PC suitable for industrial and commercial installation environments where front-side protection is required.

10-Point Projected Capacitive Touch

The optically bonded touch panel is integrated with the LCD panel and supports projected capacitive 10-point multi-touch. The touch interface provides sensitive sensing and accurate touch positioning.

Wide Operating Temperature

The 2C Series supports a wide operating temperature range of -20°C to 70°C, allowing it to be used across various industrial operating environments.

Gigabit Ethernet

A high-speed Gigabit Ethernet port provides efficient network data transmission for connected equipment and industrial applications.

Built-In Wi-Fi

Built-in 802.11b/g/n wireless Wi-Fi provides flexible wireless connectivity where wired networking is not the only option.

EMC Anti-Interference

The panel PC incorporates EMC anti-interference design for industrial application environments where stable electronic operation is required.

IK08 Protection

The front design provides IK08 impact protection, supporting use in demanding installation environments.

24/7 Operation

Dense ventilation holes are designed to support heat dissipation and reliable operation for applications requiring continuous 24/7 service.

Processor and System Configuration

The Open Frame Touch Panel PC 7-55 Inches (2C Series) provides multiple Rockchip processor options to meet different application and computing requirements.

Available processor options include:

• Rockchip RK3566

• Rockchip RK3568

• Rockchip RK3588

Memory and storage configurations include:

• RAM: 2GB–8GB

• SSD: 32GB–64GB

• TF card support

The processor and memory configuration can be selected according to the requirements of the application and equipment system.

Display and Touchscreen

The 2C Series is available with multiple display sizes and aspect ratios, allowing users to select a suitable panel according to the available installation space and application interface.

The series supports Full HD and UHD multi-touch displays and uses an optically bonded touch panel and LCD structure.

The projected capacitive touchscreen supports 10-point touch input, providing responsive interaction for industrial control interfaces, retail applications, information terminals and other touchscreen equipment.

Available Display Sizes

The 2C Series covers a broad range of screen sizes:

16:10 Ratio

• 10.1 inches

• 22 inches

5:4 Ratio

• 9.7 inches

• 10.4 inches

• 12.1 inches

• 15 inches

• 17 inches

• 19 inches

16:9 Ratio

• 7 inches

• 8 inches

• 13.3 inches

• 14 inches

• 15.6 inches

• 18.5 inches

• 21.5 inches

• 23.6 inches

• 23.8 inches

• 27 inches

• 32 inches

• 43 inches

• 50 inches

• 55 inches

This selection enables the same series to cover compact embedded interfaces as well as larger touchscreen display requirements.

Connectivity and Ports

The 2C Series provides multiple interfaces for connection to external devices and networks.

Available connections include:

• HDMI

• DC 12V IN

• LAN

• TF card slot

• Power

• Audio OUT

• USB

The ports are positioned on the rear side of the display and face downward. This configuration is designed to facilitate cable connection and installation in different equipment environments.

The Android version includes an HDMI interface for connecting compatible external display equipment.

Mounting Options

The 2C Series supports embedded, wall-mounted and desktop installation, providing flexibility for different equipment designs and installation environments.

Embedded Mounting

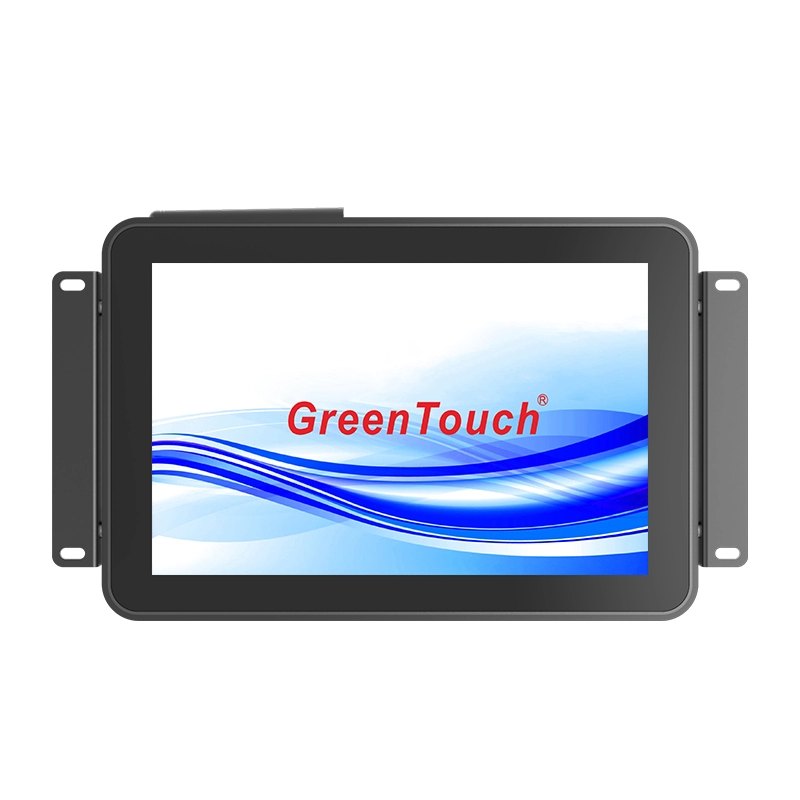

The panel PC comes with an external bracket featuring mounting screw holes for recessed cabinet installation. This configuration allows the touchscreen computer to be integrated directly into equipment cabinets and control panels.

The embedded installation design is suitable for machinery interfaces, industrial control cabinets and other applications requiring a built-in touchscreen.

Wall Mounting

The rear side supports universal 75/100mm VESA or standard mounting holes. This allows the panel PC to be installed with compatible wall brackets, display arms, ceiling mounts or pole mounts.

The unit can be mounted in either landscape or portrait orientation according to the installation requirements.

Desktop Mounting

The 2C Series supports standard VESA mounting hole configurations of 100 × 100mm or 75 × 75mm for desktop installation.

With the corresponding mounting brackets, the panel PC can be installed horizontally or vertically on compatible stands or bases. The brackets are designed for straightforward assembly and can also be disassembled when the installation configuration needs to be changed.

Structural Design

The 2C Series uses an industrial plastic front shell combined with an industrial black metal frame. Its low-profile raised edge has a thickness of approximately 3.5mm, providing a compact appearance while supporting equipment integration.

The precise small-frame design helps create a sealed touchscreen structure and facilitates installation into cabinets and other equipment.

The combination of touchscreen, display, computing hardware and industrial housing provides an integrated solution for applications where space, connectivity and touchscreen control are important considerations.

Typical Applications

The 2C Series can be integrated into a variety of industries and equipment, including:

• Smart manufacturing

• Digital workshops

• Industrial automation

• Smart retail

• Smart catering

• Medical informatics

• Smart logistics

• Warehousing systems

• Intelligent infrastructure

• Industrial equipment

• Control cabinets

• Interactive terminals

• Commercial touchscreen systems

Its wide selection of screen sizes and mounting methods allows system integrators to adapt the panel PC to different equipment layouts and operating environments.

Application Advantages

For equipment manufacturers and system integrators, the 2C Series provides several practical advantages:

• Multiple Rockchip processor options

• 7–55 inch display selection

• Android platform support

• Full HD/UHD display options

• 10-point projected capacitive touch

• Wide operating temperature range

• IP65 front protection

• IK08 impact protection

• Gigabit Ethernet connectivity

• Built-in Wi-Fi

• Multiple USB and display interfaces

• Embedded, wall and desktop mounting

• Suitable for continuous 24/7 operation

These features allow the same product family to be adapted to different touchscreen equipment and industrial control requirements.

Technical Specifications

Supplier Information

ShenZhen GreenTouch Technology Co.,Ltd. provides touchscreen display and touch panel computer solutions for industrial and commercial applications. The 2C Series is designed around flexible configuration, multiple display sizes, industrial protection and adaptable mounting options.

For B2B sourcing, equipment integration and OEM projects, buyers can select the processor, memory, storage, display size and installation method according to their system requirements.

Product Selection

When selecting a 2C Series panel PC, key factors include the required display size, processor configuration, RAM and storage capacity, installation method and available interfaces.

For compact equipment interfaces, smaller 7–15 inch models can be considered. Larger 21.5–55 inch displays can be selected where a larger touchscreen interface is required. Embedded mounting is suitable for cabinet integration, while VESA-compatible configurations support wall and desktop installation.

Product Summary

The Open Frame Touch Panel PC 7-55 Inches (2C Series) combines Android computing, multi-touch control, industrial protection and flexible mounting for smart industrial and commercial applications.
