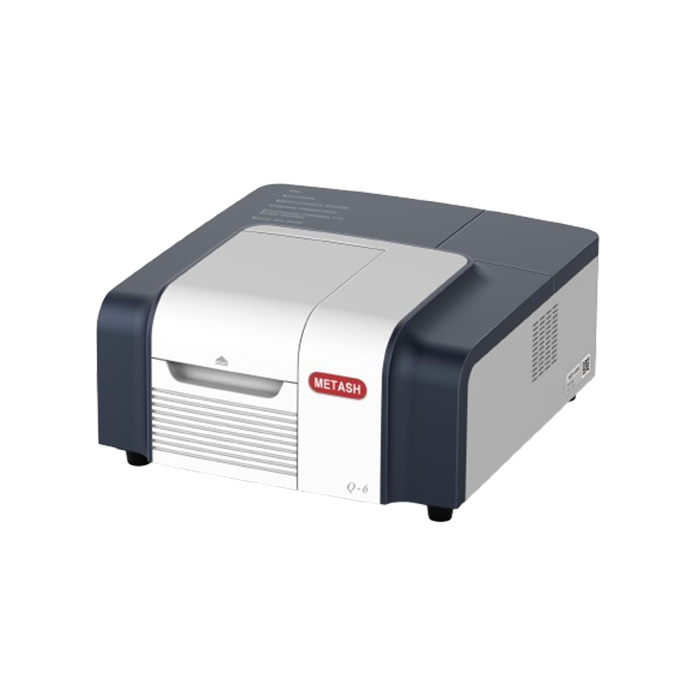

Q6 Double Beam UV Visible Spectrophotometer with PMT detector
Dual Beam system Sensitive Detection with PMT Detector.Continuous Adjustable Bandwidth: 0.1-5nm continuously adjustable bandwidth with 0.1nm interval, suitable for various applications…
[ Product Advantages]
1. Sensitive Detection with PMT Detector
High-quality Photomultiplier, fast response and high sensitivity.
Especially suitable for weak radiation energy detection.
2. Continuous Adjustable Bandwidth
Continuous adjustable spectral bandwidth from 0.1 to 5.0nm.
0.1nm interval, suitable for various applications, especially suitable for
samples with sharp absorption peaks, like penicillin sodium, penicillin
potassium, etc.
3. Higher Stability and Reliability
An extra mercury lamp equipped, one-key calibration for wavelength
accuracy.
High-quality deuterium lamp and tungsten lamp, longer service time and higher
stability.
Premium lens and lens coating, higher repeatability.
Real-time automatic calibration of dark current.
4. Larger Sample Chamber, Multi Functions
Various optional accessories: auto 8-position cell holder, autosampler,
thermostatic cell holder, integrating sphere and specular reflection accessory,
etc.
5. PC Software Controlled
User-friendly UI, simple operation and clear display.
6. Easy Maintain and Lower Cost
Independent modular design, lower maintenance cost.
Socket type of lamps, easy to replace and no need to adjust optical path.
[Technical Specification]
|
Model |
Q6 |
|
Optical System |
Double Beam |
|
Detector |
Photomultiplier (PMT) |
|
Wavelength Range |
190-900nm |
|
Bandwidth |
Continuously adjustable from 0.1nm to 5nm with 0.1nm interval |
|
Light Source |
W Lamp & D2Lamp& Mercury Lamp |
|
Control Mode |
PC Software Controlled |
|
Wavelength Accuracy |
±0.3nm |
|
Wavelength Repeatability |
≤0.1nm |
|
Photometric Accuracy |
±0.3%T |
|
Stability |
≤0.0001A/h |
|
Stray Light |
≤0.005%T at220nm& 360nm |
|
Power Requirements |
AC110/220V, 50/60Hz |
[Standard Accessories]
|
Item |
Description |
Quantity |
Unit |
|
1 |
Spectrophotometer |
1 |
unit |
|
2 |
PC software |
1 |
set |
|
3 |
1cm Glass cuvette |
4 |
pcs |
|
4 |
1cm Quartz cuvette |
2 |
pcs |
|
5 |
Power cord |
1 |
pcs |
|
6 |
User’s manual |
1 |
pcs |
|
7 |
Dust cover |
1 |
pcs |
