Radial Extrusion Equipment
As a new pipe-making process, vertical radial extrusion pipe-making has a major advantage: it adopts dry-hard concrete and allows immediate demolding after vertical production.
Radial Extrusion Equipment

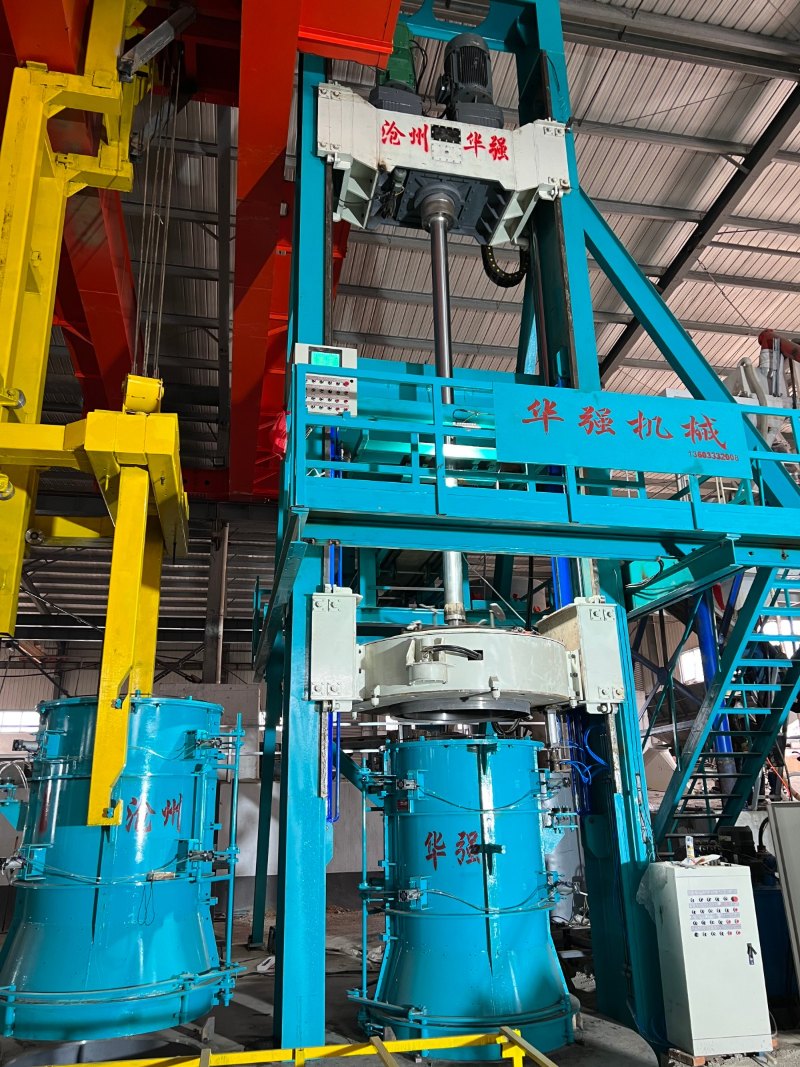

As a new pipe-making process, vertical radial extrusion pipe-making has a major advantage: it adopts dry-hard concrete and allows immediate demolding after vertical production. With instantaneous extrusion molding, each pipe only takes 2–4 minutes, resulting in high production efficiency.
The radial extrusion pipe-making machine is suitable for producing medium and small-caliber concrete drainage pipes, with a production diameter range of 300mm–1200mm. For pipes with diameters ranging from 800mm to 1650mm, the standard production length is 2–3 meters. It can also produce reinforced concrete cement pipes with flexible joints, reinforced concrete jacking pipes, and non-reinforced concrete cement pipes.
Equipment Models: HQJY300-1200-3M； HQJY800-1650-3M
HQJY300-1200-3M
|
Pipe Fabrication Range |
300-1200mm |
|
Pipe Fabrication Length |
2–3 m (customizable per customer specifications) |
|
Main Motor Power |
90kw*2 |
|
Material Distributing Motor Power |
4kw |
|
Main Disc Rotation Motor Power |
2.2kw |
|
Vibration Motor Power |
1.1kw*2 |
|
Hydraulic Pump Station Power |
26kw |
|
Air Compressor & Water Pump Power |
5kw |
HQJY800-1650-3M
|
Pipe Fabrication Range |
800-1650mm |
|
Pipe Fabrication Length |
2–3 m (customizable per customer specifications) |
|
Main Motor Power |
132kw*2 |
|
Material Distributing Motor Power |
4kw |
|
Main Disc Rotation Motor Power |
2.2kw*2 |
|
Vibration Motor Power |
1.5kw*2 |
|
Hydraulic Pump Station Power |
30kw |
|
Air Compressor & Water Pump Power |
5kw |
Advantages and Features of Radial Extrusion Pipe-making Machine
1. Minimal mold usage: Only one set of extrusion heads and two sets of molds are required for each specification of concrete pipe.
2. Energy-saving curing method: Produced with dry-hard concrete, the pipes can be cured by steam curing or natural curing at rest after demolding.
3. Vertical production and curing save workshop space.
4. No waste residue is discharged during the production process, making the production environmentally friendly.
5. Requires fewer operators and is easy for production management.
