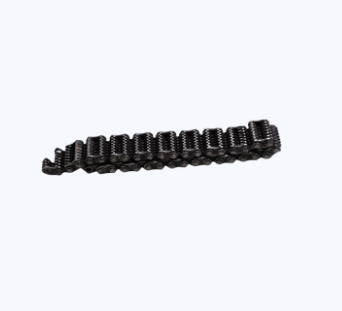

Silent Chain

Silent Chain for High-Speed and Low-Noise Power Transmission

Our Silent Chain , also known as inverted tooth chain, is a precision power transmission chain designed for high‑speed, high‑load applications where smooth operation, reduced vibration, and low noise are critical requirements. Manufactured in accordance with ISO 10823 and ANSI B29.2 standards, this chain features a unique inverted tooth design with precisely contoured link plates that engage seamlessly with specially machined sprockets, providing exceptional meshing characteristics and significantly quieter operation compared to standard roller chains.

Key Features：

Low Noise Operation

The inverted tooth structure provides smooth engagement with the sprocket, helping reduce impact and mechanical noise during continuous operation. This makes the chain suitable for machinery where lower transmission noise is required.

Stable High-Speed Performance

The precision tooth profile supports consistent engagement at elevated operating speeds. This helps maintain stable power transmission in high-speed industrial drives and precision mechanical systems.

High Tensile Strength

High-quality alloy steel and controlled heat treatment provide the strength required for demanding power transmission applications. The chain can handle substantial loads while maintaining a relatively compact construction.

Excellent Wear Resistance

Heat-treated components are designed to withstand repeated engagement with sprocket teeth. Improved surface hardness helps reduce wear and supports longer service life when the chain is correctly selected, lubricated, and maintained.

Reduced Vibration

The multi-tooth engagement pattern and reduced chordal action contribute to smoother chain movement. This helps minimize vibration and mechanical fluctuation during operation.

Compact Drive Design

The high strength-to-weight ratio allows silent chains to transmit considerable power without requiring an unnecessarily large transmission system. This can help equipment designers optimize available installation space.

Reliable Continuous Operation

Consistent manufacturing and dimensional verification help maintain stable chain geometry and engagement characteristics, supporting dependable operation in demanding industrial environments.

Silent Chain Specifications

Silent chain specifications vary according to the series, transmission requirements, sprocket configuration, and equipment design. Muyun can supply different sizes and configurations for industrial power transmission systems.

Common pitch options include standard inch pitches such as:

• 3/8 inch

• 1/2 inch

• 3/4 inch

• Other available series-specific pitches

Metric equivalents and other configurations may also be available depending on the required transmission system.

Important technical parameters may include:

• Chain pitch

• Overall chain width

• Number of link plates

• Tensile strength

• Working load

• Chain length

• Sprocket compatibility

• Link plate configuration

• Material and surface treatment

Because silent chain performance depends heavily on the matching relationship between the chain and sprocket, the exact specifications should be selected according to the equipment design rather than based on chain dimensions alone.

Our technical team can review the required transmission conditions and recommend a suitable chain configuration for the application.

Applications of Silent Chain

Silent chains are used across a wide range of industrial and mechanical transmission systems.

Machine Tools

Machine tools require accurate and stable mechanical movement. Excessive vibration or transmission fluctuation can affect machining performance and equipment precision. Silent chains provide smooth power transmission for selected machine tool drive systems.

Textile Machinery

Textile machinery often operates continuously at relatively high speeds. Low noise, stable movement, and wear resistance are important for production environments. Silent chains can provide dependable transmission in suitable textile equipment.

Printing Machinery

Printing equipment requires controlled and consistent mechanical movement. Smooth chain engagement helps reduce vibration and transmission fluctuation, supporting stable operation of printing mechanisms.

Automotive Timing Systems

The precise engagement characteristics of inverted tooth chains make them suitable for selected automotive timing drive applications. Their low-noise operation and stable high-speed performance are important advantages in this field.

High-Speed Industrial Drives

Industrial equipment operating at elevated speeds can benefit from a transmission chain designed specifically for smooth engagement. Silent chains are suitable for various high-speed mechanical drive systems where noise and vibration need to be controlled.

Precision Conveying Systems

For certain precision conveying applications, silent chains can provide stable movement and reliable transmission. Chain width, link configuration, load capacity, and operating conditions can be configured according to the equipment requirements.

Custom Silent Chain Solutions

Different machines require different transmission configurations. Standard chain dimensions may not always provide the ideal solution for OEM equipment, especially when installation space, load capacity, or drive geometry is limited.

Muyun supports customization based on specific application requirements.

Available customization options can include:

Chain Width:
Different chain widths can be supplied to accommodate varying load capacities and installation requirements.

Special Link Configurations:
Specific link arrangements can be considered for particular drive geometries and equipment structures.

Custom Chain Length:
Chains can be supplied according to required installation dimensions and OEM assembly requirements.

Material Options:
Depending on the working environment, stainless steel or other suitable material options may be considered.

Surface Treatment:
Coated or specially treated components can be evaluated where improved corrosion resistance or environmental protection is required.

For custom orders, customers can provide drawings, chain dimensions, sprocket information, operating speed, transmitted power, load requirements, or equipment specifications. This allows the production team to evaluate the appropriate configuration before manufacturing.

Manufacturing and Quality Control

Reliable silent chain performance depends on consistent manufacturing accuracy. As a professional silent chain manufacture operation, Muyun applies controlled production processes from material preparation through final inspection.

The manufacturing process focuses on maintaining consistent tooth geometry, plate dimensions, hardness, chain pitch, and assembly quality.

Quality management includes:

• Incoming material verification

• Precision component manufacturing

• Controlled heat treatment

• Dimensional inspection

• Hardness verification

• Chain assembly inspection

• Performance testing

• Final quality inspection

• Material traceability

Our production is managed under an ISO 9001 quality management system. Material and dimensional information can be maintained throughout the production process to support quality consistency and order traceability.

For international customers, consistent dimensions are particularly important when chains need to work with existing transmission systems or equipment supplied with established sprocket configurations.

Why Choose Muyun as Your Silent Chain Supplier?

Choosing the right silent chain supplier is not simply about purchasing a chain with the correct pitch. For industrial buyers, product consistency, manufacturing capability, customization support, communication, and delivery reliability are equally important.

Kunshan Muyun Chain provides direct manufacturing support for customers requiring standard and customized transmission chains.

Direct Factory Manufacturing

As a manufacturer based in Kunshan, Muyun has direct control over production processes, quality inspection, and order coordination. This allows us to communicate technical requirements efficiently and provide competitive factory pricing for international wholesale customers.

Engineering-Based Product Selection

We evaluate chain requirements according to application conditions rather than recommending products based only on dimensions. Operating speed, load, drive geometry, installation space, and working environment can all be considered.

Flexible OEM Customization

For machinery manufacturers and equipment brands, customized chain width, length, configuration, material, and surface treatment options can help meet specific equipment requirements.

Consistent Quality

Controlled production and inspection procedures help maintain stable chain dimensions and performance between production batches.

International Wholesale Support

Muyun works with international distributors, OEM manufacturers, machinery companies, and industrial buyers. Orders can be prepared according to required specifications, packaging requirements, and project schedules.

Responsive Technical Service

From initial specification confirmation to production and shipment, our team can assist with product selection, dimensional confirmation, customization requirements, and order coordination.

How to Select the Right Silent Chain

Before purchasing a silent chain, buyers should evaluate the complete transmission system rather than selecting the chain based solely on pitch.

Key factors include:

1. Determine the Required Power

Identify the power that needs to be transmitted and consider whether the system experiences continuous, intermittent, or peak loading.

2. Confirm Operating Speed

High-speed applications require careful consideration of chain geometry, sprocket size, lubrication, and transmission conditions.

3. Select the Appropriate Chain Width

Chain width affects load capacity and installation requirements. The selected width should correspond to the actual transmission load.

4. Check Sprocket Compatibility

Silent chains are designed to engage with corresponding toothed sprockets. Chain and sprocket specifications should therefore be evaluated together.

5. Consider the Operating Environment

Temperature, dust, moisture, chemicals, lubrication, and other environmental factors may affect material and surface treatment selection.

6. Confirm Installation Dimensions

Center distance, available space, chain length, and drive geometry should be confirmed before placing an OEM or customized order.

7. Evaluate Maintenance Requirements

Proper lubrication, alignment, sprocket condition, and regular inspection all contribute to longer chain service life.

Installation and Maintenance

Correct installation is essential for obtaining the expected performance from a silent chain transmission system.

The sprockets should be properly aligned, and the chain should be installed with the recommended tension. Excessive tension can increase bearing and chain loads, while insufficient tension may contribute to unstable operation.

Regular maintenance should include:

• Checking chain tension

• Inspecting sprocket tooth condition

• Monitoring chain elongation

• Checking for abnormal wear

• Maintaining appropriate lubrication

• Inspecting alignment

• Removing contaminants where necessary

If unusual vibration, noise, or chain movement occurs during operation, the chain and sprocket system should be inspected promptly. In many cases, premature wear is related not only to the chain itself but also to incorrect alignment, inadequate lubrication, excessive loading, or worn sprockets.

Get a Silent Chain Solution for Your Application

Looking for a reliable Silent Chain for high-speed or high-load power transmission?  Share your required pitch, chain width, length, operating speed, load capacity, sprocket specifications, or equipment drawings with us. Our team will evaluate your requirements and recommend a suitable chain configuration for your application.

Contact Kunshan Muyun Chain today for Silent Chain specifications, customized solutions, and a competitive factory quotation.
