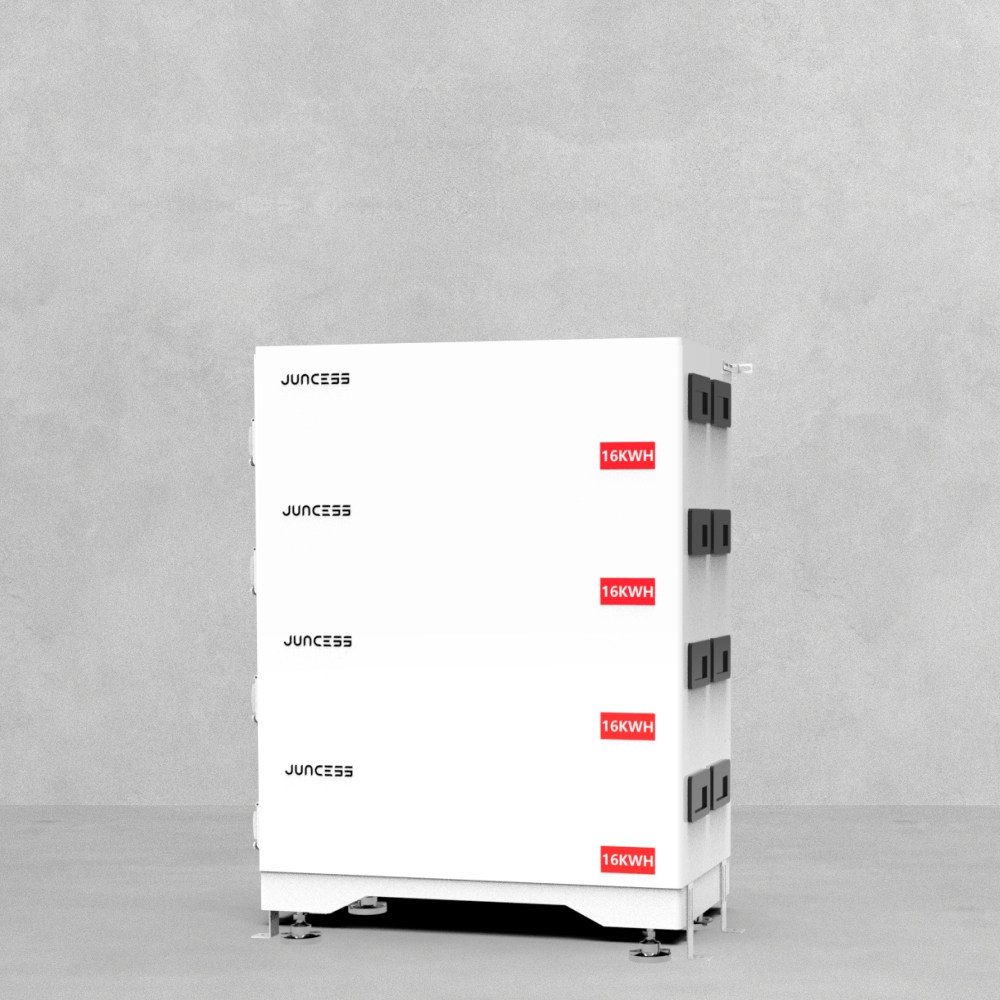

Stacked- Australian Version(Low Voltage) 16kWh (Energy Storage Battery)

Product Description

The Stacked Australian Version (Low Voltage) 16kWh Energy Storage Battery is a modular residential and commercial energy storage solution based on advanced Lithium Iron Phosphate (LiFePO4/LFP) battery technology. Designed for flexible energy expansion, safe operation, and long service life, this battery system is suitable for solar energy storage, backup power, and smart energy management applications.

The stackable modular structure allows users to expand storage capacity according to different energy requirements. With a plug-and-play design, lightweight installation structure, and intelligent energy management system, it provides a convenient solution for homes, businesses, and distributed energy projects.

Product Features

Flexible Modular Capacity

The stacked design allows multiple battery modules to be combined easily, supporting different energy storage requirements.

Available energy capacities include:

• 16.07 kWh

• 32.15 kWh

• 48.23 kWh

• 64.30 kWh

The modular expansion design helps users increase storage capacity according to future energy needs.

Long Service Life

The system uses high-quality Grade A lithium iron phosphate battery cells, offering excellent stability, safety, and cycle performance.

Key advantages include:

• Long cycle life up to 6000 cycles

• Stable charging and discharging performance

• Low degradation rate

• Reliable operation for long-term energy storage

Intelligent Energy Management

The integrated battery management system (BMS) provides intelligent monitoring and protection functions.

Features include:

• Real-time battery status monitoring

• Intelligent charging and discharging management

• Remote monitoring capability

• Smart energy scheduling

• CAN communication

• RS485 communication

The intelligent control system helps optimize energy usage and improve overall system efficiency.

High Safety Protection

Safety is enhanced through multiple protection technologies:

• Lithium iron phosphate chemistry with high thermal stability

• Industrial-grade intelligent protection system

• IP65 protection rating

• Perfluorohexanone fire suppression system

• Overcharge protection

• Over-discharge protection

• Over-current protection

• Temperature monitoring

The battery system is designed for reliable operation in various indoor and outdoor environments.

Technical Specifications

Battery Type

• Battery Chemistry: Lithium Iron Phosphate (LFP)

• Nominal Voltage: 51.2V

• Depth of Discharge (DOD): 100%

• Design Life: 10 years

• Cycle Life: 6000 cycles

Electrical Parameters

Rated Capacity options:

• JCL16: 314Ah

• JCL32: 628Ah

• JCL48: 942Ah

• JCL64: 1256Ah

Energy capacity:

• JCL16: 16.07kWh

• JCL32: 32.15kWh

• JCL48: 48.23kWh

• JCL64: 64.30kWh

Voltage range:

• Minimum Voltage: 44.8V

• Maximum Voltage: 57.6V

Charging and discharging:

• Rated Charge/Discharge Current: 150A

• Maximum Charge/Discharge Current: 200A

• Recommended C Rate: 0.5C

Product Models

JCL16

• Energy: 16.07kWh

• Capacity: 314Ah

• Weight: Approximately 128kg

• Dimensions: 890 × 265 × 430 mm

JCL32

• Energy: 32.15kWh

• Capacity: 628Ah

• Weight: Approximately 256kg

• Dimensions: 890 × 515 × 430 mm

JCL48

• Energy: 48.23kWh

• Capacity: 942Ah

• Weight: Approximately 384kg

• Dimensions: 890 × 765 × 430 mm

JCL64

• Energy: 64.30kWh

• Capacity: 1256Ah

• Weight: Approximately 512kg

• Dimensions: 890 × 1015 × 430 mm

Mechanical Design

The battery enclosure uses durable SPCC steel material, providing strong structural protection.

Product characteristics:

• Stackable modular structure

• Compact installation design

• Space-saving configuration

• Easy expansion

• Professional appearance

• Suitable for residential and commercial environments

Base tray options are available to improve installation stability.

Environmental Performance

The energy storage battery is designed to operate under different environmental conditions.

Operating parameters:

• Operating Temperature: -20°C to 55°C

• Cooling Method: Natural Cooling

• Protection Rating: IP65

The IP65 enclosure helps protect internal components from dust and water exposure, improving outdoor application reliability.

Communication Interface

Supported communication protocols:

• CAN

• RS485

The communication interface enables connection with energy management systems, solar inverters, and monitoring platforms.

Applications

The stacked low voltage energy storage battery is suitable for:

Residential Energy Storage

• Home solar storage systems

• Backup power supply

• Household energy management

• Off-grid power systems

Commercial Applications

• Small commercial buildings

• Offices

• Retail stores

• Industrial facilities

• Energy management projects

Renewable Energy Systems

• Solar photovoltaic storage

• Distributed energy systems

• Microgrid applications

• Peak shaving and load shifting

Advantages

• Modular stackable design

• Flexible capacity expansion

• Long cycle life

• Safe LFP battery technology

• Intelligent BMS management

• Remote monitoring support

• IP65 weather protection

• High energy efficiency

• Easy installation

• Low maintenance requirements

Why Choose This Energy Storage Battery?

The Stacked Australian Version Low Voltage 16kWh Energy Storage Battery combines advanced lithium iron phosphate technology with intelligent energy management and modular expansion capability. It provides a reliable and scalable energy storage solution for users seeking efficient solar energy utilization, backup power, and long-term energy independence.

With high safety standards, flexible capacity options, and smart monitoring functions, this battery system is an ideal choice for residential, commercial, and renewable energy storage applications.
