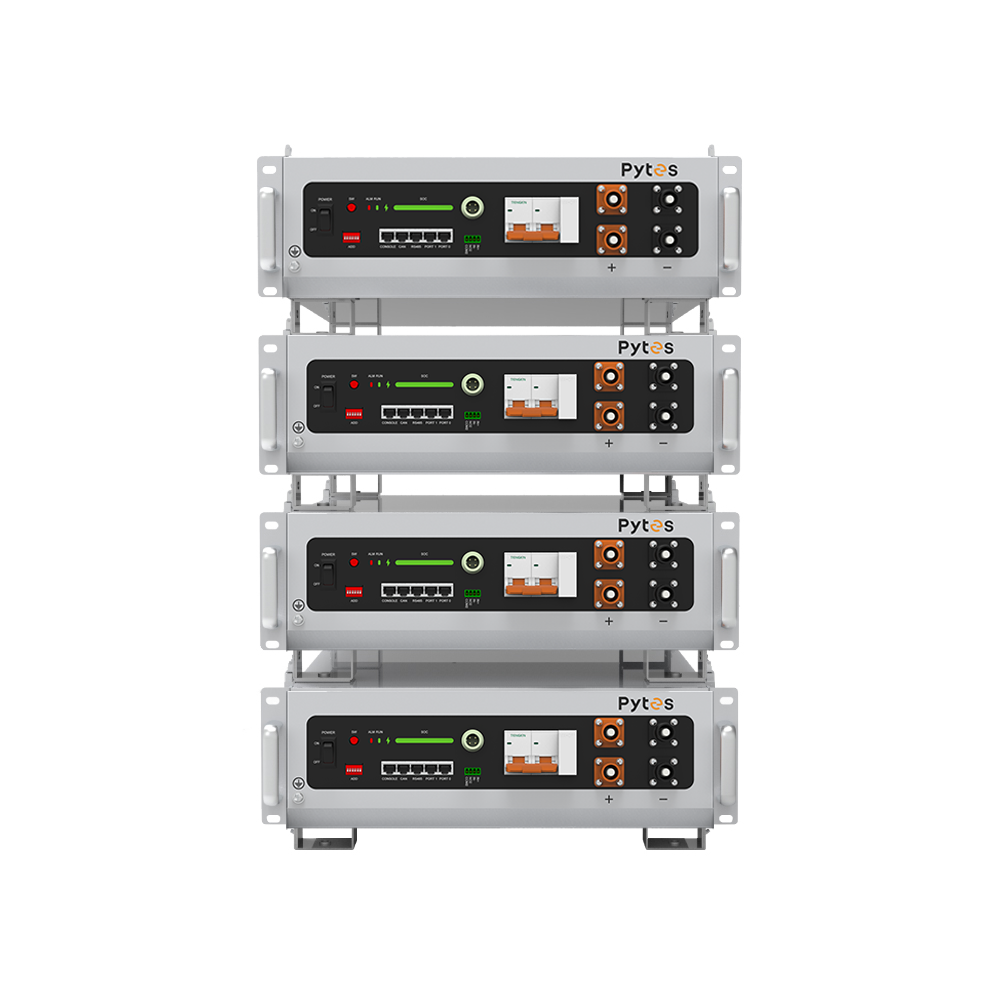

V5°α Plus
V5°α Plus taken to the next level. The Plus model adds remote monitoring and upgrading capabilities, variable charge/discharge rates, and wider operational temperatures. Perfect for systems demanding
| Battery Model | V5°/V5°α |
|---|---|
| Electrical | |
| Chemistry | LFP |
| Nominal Voltage | 51.2V |
| Voltage Range | 100Ah |
| Nominal Energy | 47.5V~57.6V |
| Recommended Charge/Discharge Current | 75A |
| Max Continuous Charge/Discharge Current | 100A |
| Peak Charge/Discharge Current |
101A~120A (3min); |
| General | |
| Connection Options |
V5°: PHOENIX M6 Bolt |
| Chemistry | LFP |
| Communication Protocol | CAN/RS485 |
|
Dimensions(L x W x H) |
442*530*140mm/17.40*20.87*5.51inch(3.2U) |
| Weight | 44kg/97lbs |
| Ambient Temperature | -10°C~50°C/14°F~122°F |
| Cycle Life* | ≥6000 Cycles |
| Warranty | 10 Years |
| Scalability |
16 pcs (81.92kWh) in a group |
| Mounting Method | Wall / Ground (W/ Optional Battery Tray) |
| Heating Pad (Integrated) | Temperature Rise: 14.4°F/h / 8°C/h |
| Add-on Features | |
|---|---|
| WIFI Connection | Remote monitoring and upgrade |
| Heating Pad |
Temperature Rise: 10°C/h / 18°F/h |
| Certifications | |
|---|---|
| UL9540 Ed.2 (2020), UL9540A, UL1973, CEC, SGIP, CE, IEC62619, UN38.3 |
