Vehicle Air Brake Pump
● Oil free clean air, without pollution
● Integrated design, small size, light weight
● Low noise, small vibration
● Long maintenance interval
● Fewer accessories, high reliability
Features

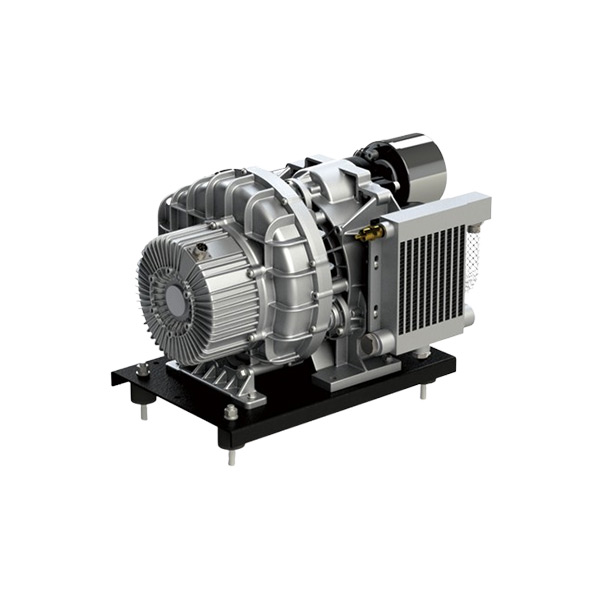

Oil-free scroll air compressor (referred to as “vehicle air pump”) is a new
generation of oil-free scroll air compressor for new energy vehicles which
developed and produced by GaoLing Technology. They have the advantages of
compact structure, light weight, low noise, less maintenance, high efficiency,
energy saving and other excellent technical performances. It is greatly suitable
for the supply of compressed air for various types of rail vehicles and new
energy vehicles, including EMUS, CRH train, subways and light rail train and so
on.
Technical Specifications
|
MODEL NO. |
G03ZP |
G05ZP |
|
Motor Type |
IPMSM |
IPMSM |
|
Power(kW) |
2.2(3) |
3.7 |
|
Rated Voltage (V) |
AC380 |
AC380 |
|
Rated Speed (rpm) |
3000 |
3000 |
|
Max Pressure (MPa) |
1.0 |
1.0 |
|
Capacity (L/min) |
210(1.0MPa) |
360(1.0MPa) |
|
Motor Phase Number |
3 |
3 |
|
Discharge Temperature (℃) |
＜78 |
＜80 |
|
Cooling Method |
Forced air cooling |
|
|
Working Temperature Range (℃) |
-40℃~55℃ |
|
|
Protection Level |
IP67 |
|
|
Dimension (L*W*H)mm |
473*360*314 |
502*400*353 |
|
Weight (kg) |
29 |
43 |
Application Scenarios

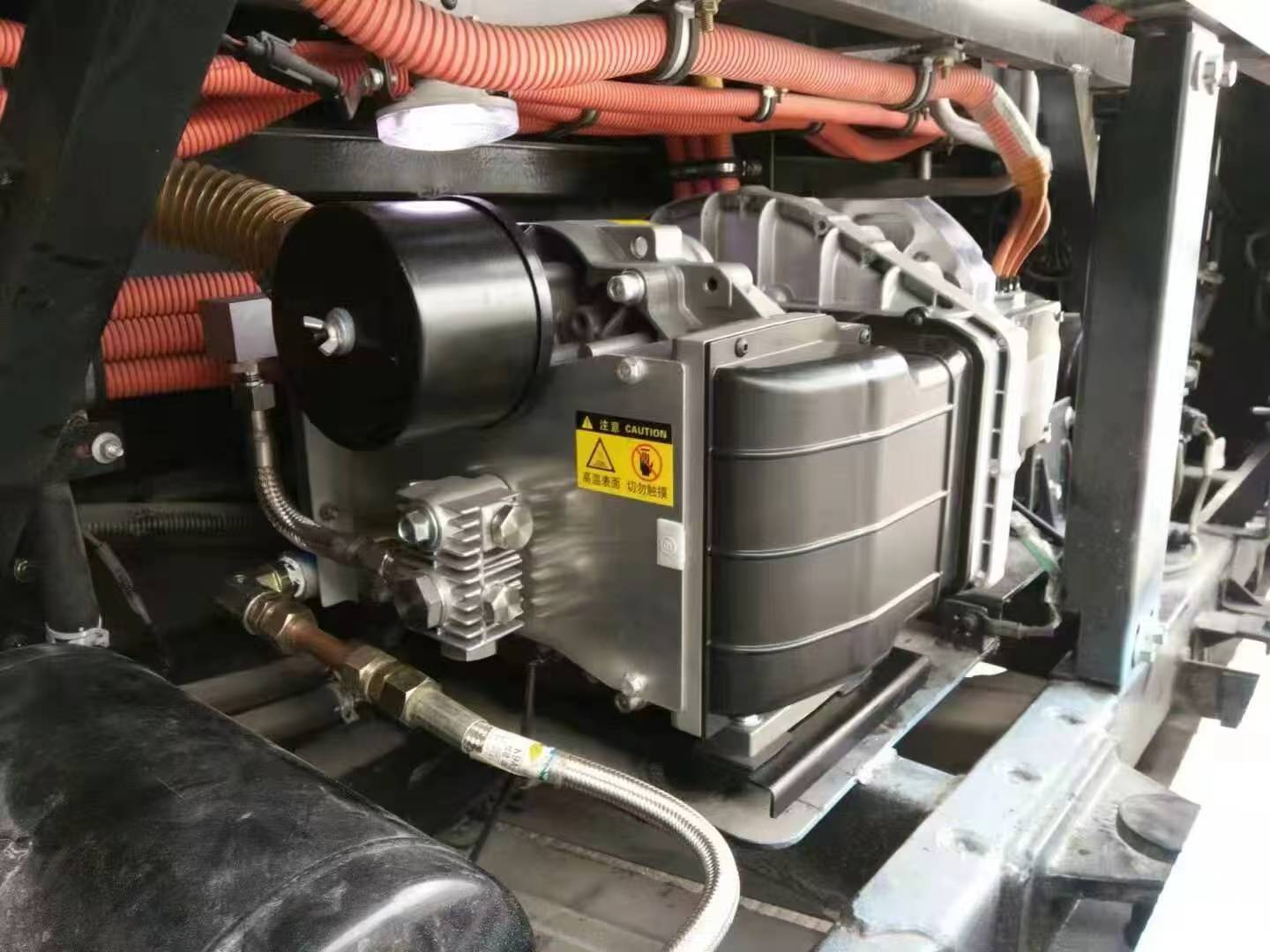

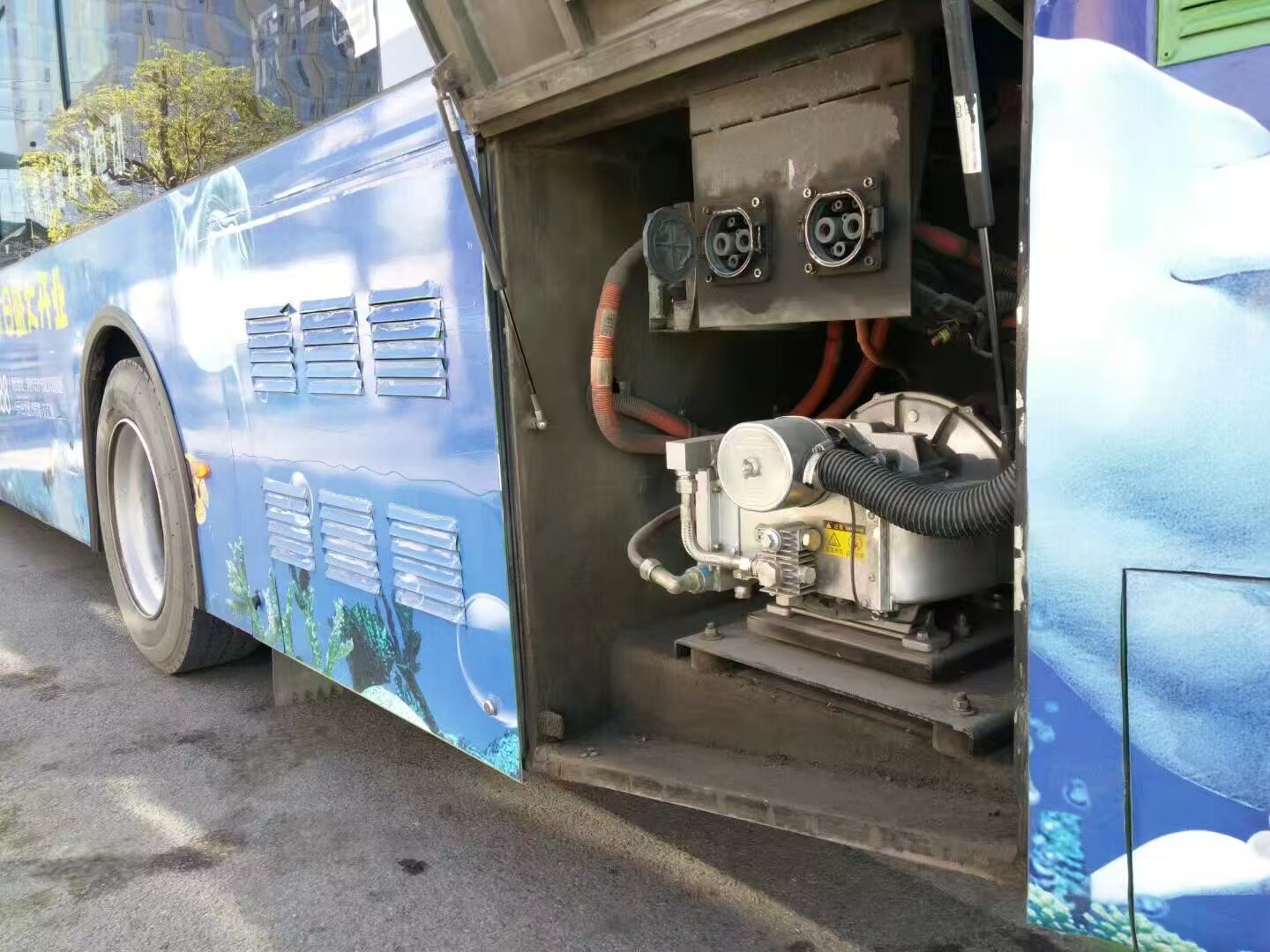

New Energy Bus Air Brake Pump

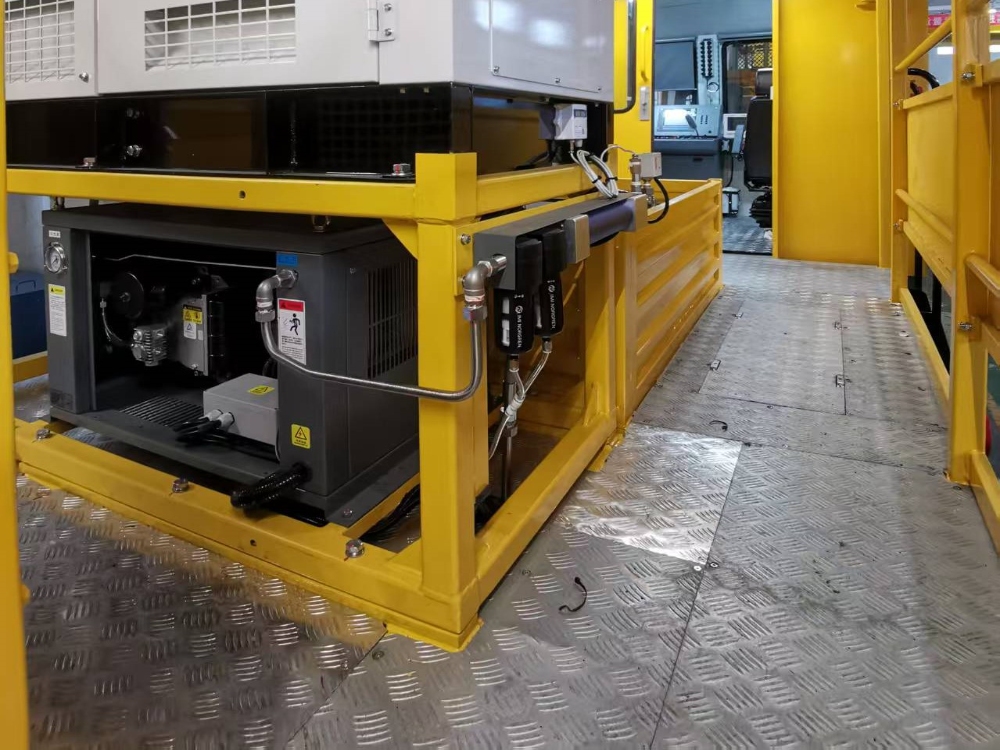

Emergency Air Source Auxiliary Device
