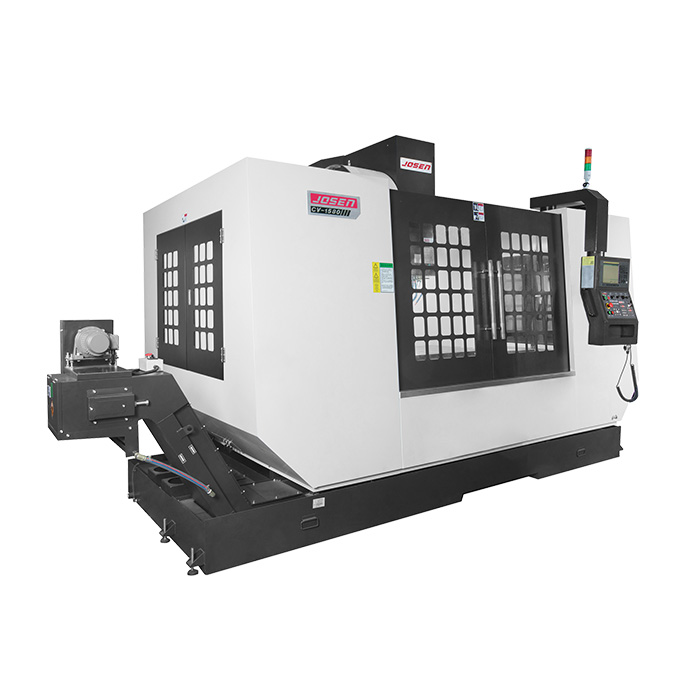

VMC 1580 Vertical Machining Center
The machine is suitable for automobile and locomotive parts production, aviation, communication electronics, various types of precision mold processing and other fields.
https://www.josencnc.com/VMC-1580-CNC-Vertical-Machining-Center.html
The machine is suitable for automobile and locomotive parts production, aviation, communication electronics, various types of precision mold processing and other fields. The bed adopts high rigidity structure, which makes the internal force structure more optimized and ensures the rigidity and thermal stability of the whole machine. The spindle box adopts balance cylinder counterweight to avoid vibration when running at high speed.
1.This model is suitable for mass production of automobile and locomotive
parts, aerospace and communication electronics, automation parts processing, and
various types of precision mold processing.
2.The base, slide, table, column, spindle box and other major foundation
parts are made of high rigidity cast iron structure, and the internal
reinforcement bars are distributed in a mesh structure to ensure the high
rigidity of the foundation parts and the anti-bending and anti-vibration
performance.
3.The X and Y axes adopt heavy-duty 45mm roller rail, and the Z axis adopts
55mm roller rail, which makes the machine stronger in terms of load bearing
capacity and cutting performance, and the Y axis saddle adopts four-rail full
support, which is stable and reliable.
4.The spindle box adopts balance bar counterweight to ensure no shaking when
the spindle box is shifted quickly and to ensure the accuracy of movement.
5.The spindle is equipped with belt type 8000rpm as standard, no noise and
low vibration, suitable for high speed milling and tapping.
| ITEM | UNIT | CV-1580B |
| Travel | ||
| X-axis travel | mm | 1520 |
| Y-axis travel | mm | 800 |
| Z-axis travel | mm | 700 |
| Workable size | ||
| Working table size (X*Y) | mm | 1650×800 |
| Max.loading capacity of working table | kg | 1400 |
| Table T-slot size (width * number of slots * spacing) | number | 18x5x150 |
| Spindle | ||
| Spindle speed | rpm | 8000 |
| Spindle drive form | belt driven | |
| Spindle power | kW | 15/18.5 |
| Spindle bore specification | BT50 | |
| Distance from spindle to table surface | mm | 155-855 |
| Spindle feed | ||
| Rapid feed rate(X,Y,Z) | m/min | 20/20/20 |
| Cutting feed rate | mm/min | 10000 |
| Tool magazine | ||
| Tool magazine capacity | cutter arm type 24 | |
| Tool diameter/adjacent tool space | mm | Φ110/Φ200 |
| Max. Tool length | mm | 350 |
| Max. Tool weight | kg | 15 |
| Accuracy | ||
| Positioning accuracy | mm | ±0.01 |
| Reproduction accuracy | mm | ±0.005 |
| Others | ||
| Controller | 0i-MF/M80 | |
| Air pressure demand | kg/cm2 | 6 |
| Power demand | kVA | 50 |
| Machine weight | T | 11 |
| Model | A | B | C | D | T-slot number |
| CV-1580B | 1650 | 800 | 100 | 150 | 5 |
