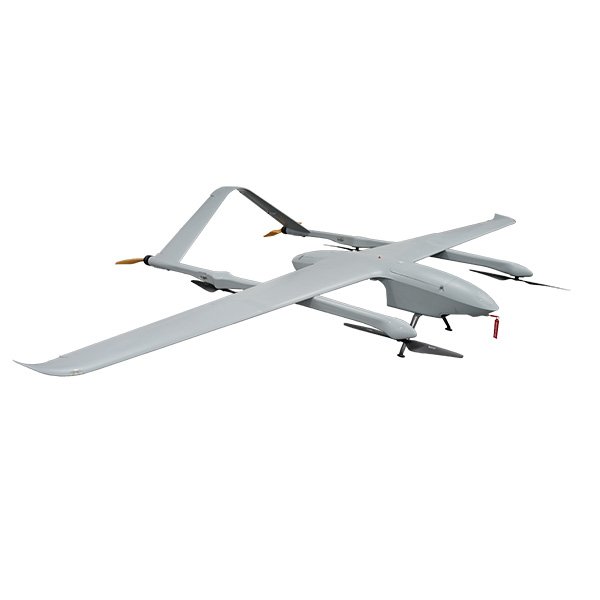

VT65 Electric Fixed-Wing VTOL UAV/Drone
The VT65 adopts a twin-engine rear-thrust configuration and a primary/secondary dual-payload design. Constructed entirely from composite materials, it supports dual GPS and dual RTK modules.
https://www.lokia.tech/VT65-Electric-Fixed-Wing-VTOL-UAV-Drone.html
The VT65 adopts a twin-engine rear-thrust configuration and a primary/secondary dual-payload design. Constructed entirely from composite materials, it supports dual GPS and dual RTK modules, enabling centimeter-level positioning and excellent environmental adaptability.
Main Features:
1) The entire aircraft is waterproof and can fly in complex weather
conditions;
2) The twin-engine rear-thrust design improves the climbing rate and flight
reliability;
3) The dual-color navigation lights allow for night flight;
4) The antenna is integrated with the landing gear, ensuring unobstructed
satellite signal reception and forward-looking electro-optical sensor view.
Specifications:
1) Wingspan: 4800mm
2) Maximum Take-Off Weight: 65kg
3) Payload: 15kg
4) Endurance: 1.5~3h
5) Power System: Electric
6) Maximum Flight Speed: 130km/h
7) Practical Ceiling: 4000m
8) Wind Resistance Capability: Level 7 (fixed wing)
