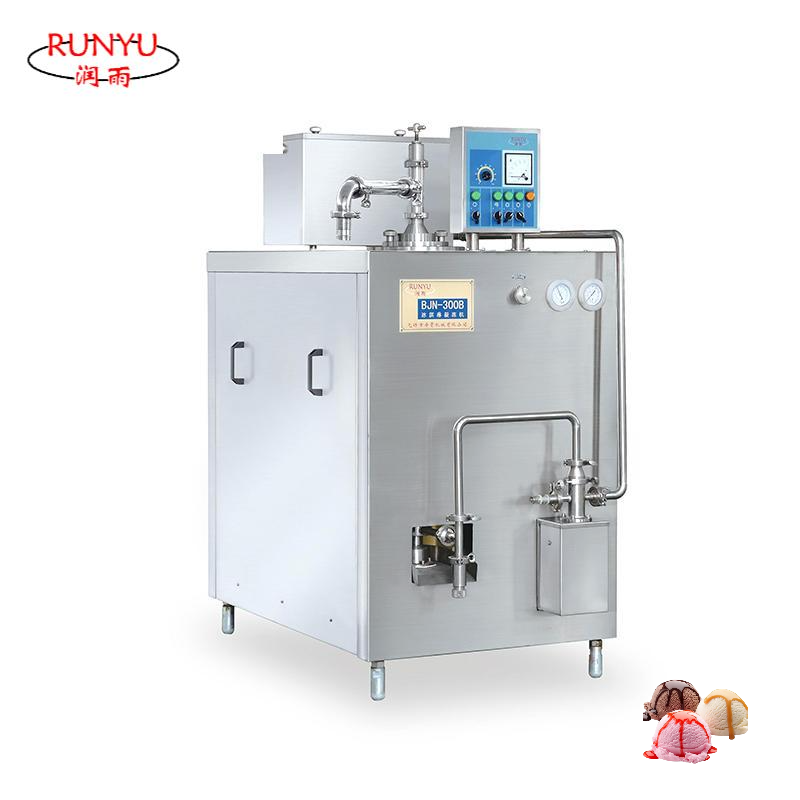

BNJ-300B Continuous Ice Cream Freezer
BNJ series Ice-cream freezing machines are the ideal equipments for large-scale and continuous soft ice-cream production.
BNJ series Ice-cream freezer is equipped with independent refrigeration
system, and adopts international famous brand of semi-closed compressor, valves
and other parts. Special made evaporator with good refrigeration effect to make
product quality stable. The pneumatic pump for material transportation is
imported frequency transformer for regulating the speed. The machine is easy for
operation, and it can be conveniently assembled and unassembled for
cleaning.
BNJ-300B Technical parameters
|
NO. |
Parameters |
Unit |
Value |
|
|
1 |
Feed temperature(No more than +4°C) |
°C |
+2~+4 |
|
|
2 |
Discharge temperature |
°C |
-5.5 |
|
|
3 |
Maximum capacity(expansion rate 100%) |
L |
300 |
|
|
4 |
Cooling Capacity(+30°C/-30°C) |
W |
8700 |
|
|
5 |
Refrigerant |
R404 |
||
|
6 |
Condensate Flow |
m3/h |
1 |
|
|
7 |
Motor capacity |
Mixing pump motor |
Kw |
0.75kw/1390rpm |
|
Kw |
3kw/960rpm |
|||
|
Kw |
5.5kw/1450rpm |
|||
|
8 |
Dimensions(L×W×H) |
mm |
830×1380×1600 |
|
|
9 |
Net Wight |
kg |
680 |
|
