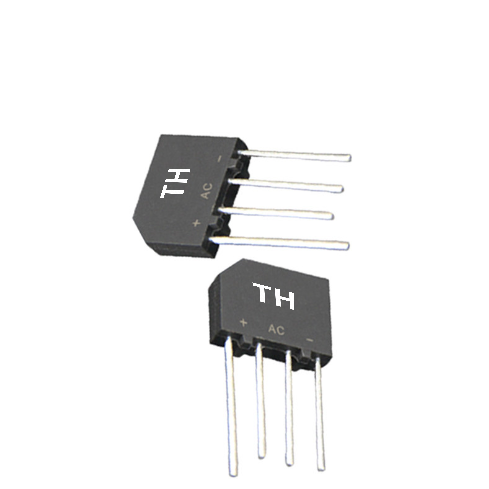

Bridge Rectifier
An integrated full-wave rectification component consisting of four diodes, typically in a quadrilateral package.
| Part Number | Package | DC Reverse Voltage | Forward Current | Non-Repetitive Peak Forward Surge Current |
Reverse Current | Forward Voltage | Power Dissipation | Marking |
| VR(V) | IF(A) | IFSM(A) | IR(µA) | VF(V) | PD(mW) | |||
| 2W10 | WOB | 1000 | 2 | 60 | 10 | 1.1 | – | |
| ABS1 | ABS | 100 | 0.8/1.0 | 30 | 5 | 1.1 | – | ABS1 |
| ABS2 | ABS | 200 | 0.8/1.0 | 30 | 5 | 1.1 | – | |
| ABS4 | ABS | 400 | 0.8/1.0 | 30 | 5 | 1.1 | – | |
| ABS6 | ABS | 600 | 0.8/1.0 | 30 | 5 | 1 | – | |
| ABS8 | ABS | 800 | 0.8/1.0 | 30 | 5 | 1 | – | |
| ABS10 | ABS | 1000 | 0.8/1.0 | 30 | 5 | 1 | – | ABS10 |
| ABS21 | ABS | 100 | 2 | 50 | 10 | 1.1 | – | |
| ABS22 | ABS | 200 | 2 | 50 | 10 | 1.1 | – | ABS2 |
| ABS24 | ABS | 400 | 2 | 50 | 10 | 1.1 | – | |
| ABS26 | ABS | 600 | 2 | 50 | 10 | 1.1 | – | |
| ABS28 | ABS | 800 | 2 | 50 | 10 | 1.1 | – | |
| ABS210 | ABS | 1000 | 2 | 50 | 10 | 1.1 | – | ABS210 |
| DB107S | DBS | 1000 | 1 | 50 | 10 | 1.1 | – | DB107S |
| DB107 | DBS | 1000 | 1 | 50 | 10 | 1.1 | – | DB107S |
| DB207S | DBS | 1000 | 2 | 60 | 10 | 1.1 | – | DB107S |
| DF10S | DFS | 1000 | 1 | 50 | 10 | 1.1 | – | |
| DF20S | DBS | 1000 | 2 | 60 | 10 | 1.1 | – | MICDF20S |
| DB157 | DB | 1000 | 1.5 | 50 | 10 | 1.1 | – | |
| DB157S | DBS | 1000 | 1.5 | 50 | 10 | 1.1 | – | |
| GBU1001 | GBU | 100 | 10 | 175 | 10 | 1 | – | |
| GBU1002 | GBU | 200 | 10 | 175 | 10 | 1 | – | |
| GBU1004 | GBU | 400 | 10 | 175 | 10 | 1 | – | |
| GBU1006 | GBU | 600 | 10 | 175 | 10 | 1 | – | |
| GBU1008 | GBU | 800 | 10 | 175 | 10 | 1 | – | |
| GBU1010 | GBU | 1000 | 10 | 175 | 10 | 1 | – | GBU1010 |
| GBU15005 | GBU | 50 | 15 | 200 | 5 | 1.0 | – | |
| GBU1501 | GBU | 100 | 15 | 200 | 5 | 1.0 | – | |
| GBU1502 | GBU | 200 | 15 | 200 | 5 | 1.0 | – | |
| GBU1504 | GBU | 400 | 15 | 200 | 5 | 1.0 | – | |
| GBU1506 | GBU | 600 | 15 | 200 | 5 | 1.0 | – | |
| GBU1508 | GBU | 800 | 15 | 200 | 5 | 1.0 | – | |
| GBU1510 | GBU | 1000 | 15 | 200 | 5 | 1.0 | – | GBU1510 |
| GBU25005 | GBU | 50 | 25 | 300 | 5 | 1.0 | – | |
| GBU2501 | GBU | 100 | 25 | 300 | 5 | 1.0 | – | |
| GBU2502 | GBU | 200 | 25 | 300 | 5 | 1.0 | – | |
| GBU2504 | GBU | 400 | 25 | 300 | 5 | 1.0 | – | |
| GBU2506 | GBU | 600 | 25 | 300 | 5 | 1.0 | – | |
| GBU2508 | GBU | 800 | 25 | 300 | 5 | 1.0 | – | |
| GBU2510 | GBU | 1000 | 25 | 300 | 5 | 1.0 | – | GBU2510 |
| GBU4005 | GBU | 50 | 4 | 135 | 5 | 1.0 | – | |
| GBU401 | GBU | 100 | 4 | 135 | 5 | 1.0 | – | |
| GBU402 | GBU | 200 | 4 | 135 | 5 | 1.0 | – | |
| GBU404 | GBU | 400 | 4 | 135 | 5 | 1.0 | – | |
| GBU406 | GBU | 600 | 4 | 135 | 5 | 1.0 | – | |
| GBU408 | GBU | 800 | 4 | 135 | 5 | 1.0 | – | |
| GBU410 | GBU | 1000 | 4 | 135 | 5 | 1.0 | – | GBU608 |
| GBU6005 | GBU | 50 | 6 | 150 | 5 | 1.0 | – | |
| GBU601 | GBU | 100 | 6 | 150 | 5 | 1.0 | – | |
| GBU602 | GBU | 200 | 6 | 150 | 5 | 1.0 | – | |
| GBU604 | GBU | 400 | 6 | 150 | 5 | 1.0 | – | |
| GBU606 | GBU | 600 | 6 | 150 | 5 | 1.0 | – | |
| GBU608 | GBU | 800 | 6 | 150 | 5 | 1.0 | – | |
| GBU610 | GBU | 1000 | 6 | 150 | 5 | 1.0 | – | GBU610 |
| GBU8005 | GBU | 50 | 8 | 175 | 5 | 1.0 | – | |
| GBU801 | GBU | 100 | 8 | 175 | 5 | 1.0 | – | |
| GBU802 | GBU | 200 | 8 | 175 | 5 | 1.0 | – | |
| GBU804 | GBU | 400 | 8 | 175 | 5 | 1.0 | – | |
| GBU806 | GBU | 600 | 8 | 175 | 5 | 1.0 | – | |
| GBU808 | GBU | 800 | 8 | 175 | 5 | 1.0 | – | |
| GBU810 | GBU | 1000 | 8 | 175 | 5 | 1.0 | – | GBU810 |
| KBL410 | KBL | 1000 | 4 | 200 | 5 | 1.1 | – | |
| KBL610 | KBL | 1000 | 6 | 200 | 5 | 1.1 | – | |
| KBP206 | KBP | 600 | 2 | 60 | 10 | 1.1 | – | KBP206 |
| KBP210 | KBP | 1000 | 2 | 60 | 10 | 1.1 | – | KBP210 |
| KBP310 | KBP | 1000 | 3 | 80 | 5 | 1.1 | – | KBP310 |
| KBU1010 | KBU | 1000 | 10 | 175 | 5 | 1.1 | – | |
| KBU610 | KBU | 1000 | 6 | 150 | 5 | 1.0 | – | |
| KBU808 | KBU | 800 | 8 | 175 | 5 | 1.0 | – | |
| MB05F | MB-F | 50 | 0.5/0.8/1.0 | 25 | 5 | 1.0/1.1/1.1 | – | MB05F |
| MB05M | MB-M | 50 | 0.5/0.8 | 35 | 5 | 1 | – | MB05M |
| MB05S | MB-S | 50 | 0.5/0.8/1.0 | 30 | 5 | 1.0/1.1/1.1 | – | MB05S |
| MB10F | MB-F | 1000 | 0.5/0.8/1.0 | 25 | 5 | 1.0/1.1/1.1 | – | MIC12M10 MB10F |
| MB10M | MB-M | 1000 | 0.5/0.8 | 35 | 5 | 1 | – | MB10M |
| MB10S | MB-S | 1000 | 0.5/0.8/1.0 | 30 | 5 | 1.0/1.1/1.1 | – | MB10S |
| MB1F | MB-F | 100 | 0.5/0.8/1.0 | 25 | 5 | 1.0/1.1/1.1 | – | MB1F |
| MB1M | MB-M | 100 | 0.5/0.8 | 35 | 5 | 1 | – | MB1M |
| MB1S | MB-S | 100 | 0.5/0.8/1.0 | 30 | 5 | 1.0/1.1/1.1 | – | MB1S |
| MB2F | MB-F | 200 | 0.5/0.8/1.0 | 25 | 5 | 1.0/1.1/1.1 | – | MB2F |
| MB2M | MB-M | 200 | 0.5/0.8 | 35 | 5 | 1 | – | MB2M |
| MB2S | MB-S | 200 | 0.5/0.8/1.0 | 30 | 5 | 1.0/1.1/1.1 | – | MB2S |
| MB4F | MB-F | 400 | 0.5/0.8/1.0 | 25 | 5 | 1.0/1.1/1.1 | – | MB4F |
| MB4M | MB-M | 400 | 0.5/0.8 | 35 | 5 | 1 | – | MB4M |
| MB4S | MB-S | 400 | 0.5/0.8/1.0 | 30 | 5 | 1.0/1.1/1.1 | – | MB4S |
| MB6F | MB-F | 600 | 0.5/0.8/1.0 | 25 | 5 | 1.0/1.1/1.1 | – | MB6F HMB6F HMB6F |
| MB6M | MB-M | 600 | 0.5/0.8 | 35 | 5 | 1 | – | MB6M |
| MB6S | MB-S | 600 | 0.5/0.8/1.0 | 30 | 5 | 1.0/1.1/1.1 | – | MB6S |
| MB8F | MB-F | 800 | 0.5/0.8/1.0 | 25 | 5 | 1.0/1.1/1.1 | – | MB8F |
| MB8M | MB-M | 800 | 0.5/0.8 | 35 | 5 | 1 | – | MB8M |
| MB8S | MB-S | 800 | 0.5/0.8/1.0 | 30 | 5 | 1.0/1.1/1.1 | – | MB8S |
| RS207 | KBP | 1000 | 2 | 60 | 10 | 1.1 | – | – |
| RS407 | KBP | 1000 | 4 | 110 | 5 | 1.0 | – | – |
| UMB10F | MBF | 1000 | 1 | 35 | 10 | 1.1 | – | – |
