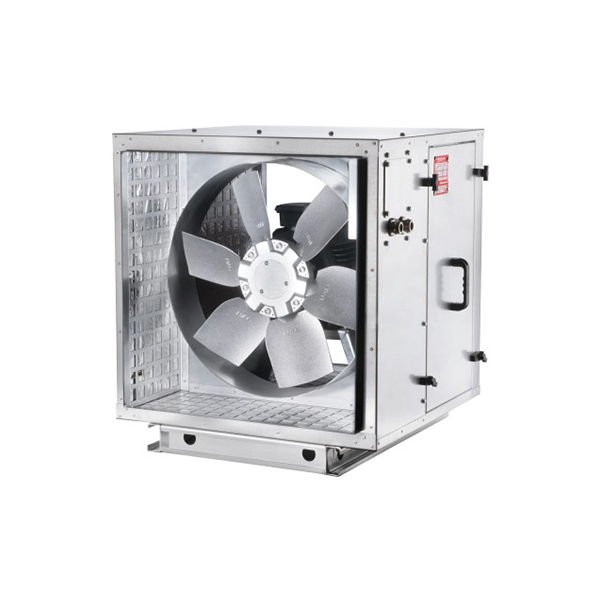

Cabinet Axial Fans
Box Axial fans are used in pressurization fan, fresh air fan and smoke
exhaust fan applications. The box is fire resistant and designed according to
the noise standard. Smoke evacuation fans are fire resistant. Fresh air fans can
operate at 55 Celcius temperature.
Rotor Features
Fire resistant aluminum alloy casting blades and fan hub.
Wings are airfoil and provide high aerodynamic performance
Wing angles are adjustable. In thisway, smoke discharge fans can be demanded
atdifferent flow rates and pressures.
The fan part of the fan is dynamically balanced according to ISO 1940 and
there is no eccentricityduring the operation of the fan.
Motor Features
Offers 2.4 and 6-pole motors
The motors are IP 55 class and Class-H insulated.
All electric motor models are approved for continuous operation (S1) and
Emergency operation (S2).
Usage Areas
Stair pressurization fan, fresh air fan, smoke isused as exhaust fan.
General Features
It has EN 12101-3 and Ce certificates.
2 hourscontinuous operation at 400ºC and 300ºC
Thereis a wide product range from 400 mm to 1250 mm.
Body Features
The fan body made of double skin galvanized sheet steel with acoustic and
thermal rockwool insulation.
Ease of Maintenance
A maintenance cover is provided to ensure easymaintenance.
