Compressed Air Piping System for Aluminum Air Distribution

UPIPE compressed air piping system is a modular aluminum piping solution designed for efficient distribution of compressed air, vacuum, and inert gases in industrial facilities. Built with lightweight and corrosion-resistant aluminum components, the system provides a practical alternative to conventional steel piping while supporting easier installation, stable airflow, and long-term operation.

Aluminum Construction for Efficient Air Distribution

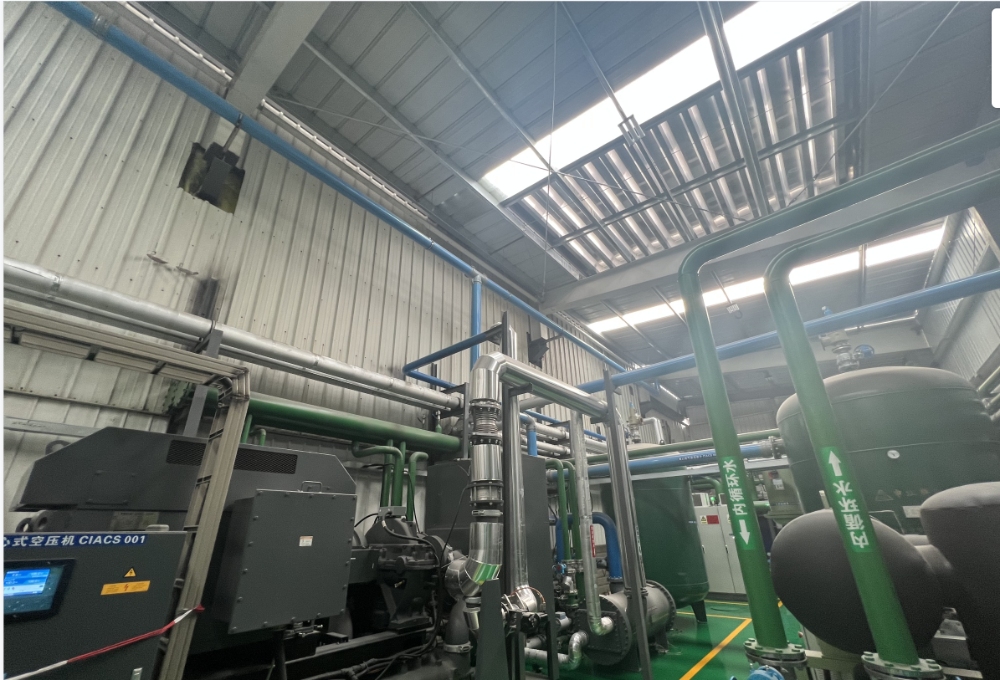

The UPIPE compressed air piping system uses aluminum pipes and matching fittings to create a reliable distribution network from the compressor to production equipment. Aluminum construction offers a strong combination of lightweight handling, corrosion resistance, and structural durability. The smooth internal surface helps maintain efficient airflow and reduce unnecessary pressure loss across the distribution line.

With a working pressure of up to 16 bar, the piping system can accommodate a wide range of industrial compressed air applications. Available temperature specifications range from -20°C to +80°C and -60°C to +180°C, depending on the applicable product configuration.

Modular Design for Faster Installation

Unlike traditional piping solutions that may require extensive welding, threading, or complicated fabrication, the UPIPE system is designed around modular aluminum pipes and dedicated connection fittings. This makes cutting, assembly, modification, and expansion more convenient during installation.

The complete range includes elbows, pipe-to-pipe connectors, reducing connectors, equal and reducing tees, male and female connectors, flanges, quick drops, end caps, ball valves, butterfly valves, flowmeters, flexible hoses, clamps, and installation tools. These components allow contractors and maintenance teams to build layouts according to different factory requirements.

Reduced Leakage and Pressure Loss

Compressed air leakage can increase compressor workload and operating costs. The UPIPE compressed air piping system is designed with compatible pipe and fitting structures to help minimize leakage at connection points. Its streamlined internal flow path also helps maintain consistent air delivery and reduce pressure loss throughout the network.

A well-designed aluminum air piping layout can therefore support more stable pressure at points of use while reducing the need for excessive compressor pressure. This makes the system suitable for factories seeking to improve compressed air distribution efficiency and control energy consumption.

Corrosion-Resistant and Lightweight

Aluminum provides natural resistance to corrosion and does not require the same level of protection against rust as conventional carbon steel piping. This characteristic makes the system suitable for industrial environments where moisture and corrosion may affect traditional metal pipelines.

The lightweight structure also simplifies transportation and on-site handling. Pipes can be easier to position, support, and modify during installation, helping reduce labor requirements for compressed air distribution projects.

Flexible Solutions for Industrial Applications

The UPIPE compressed air piping system is suitable for manufacturing facilities, automotive plants, electronics production, machinery manufacturing, new energy facilities, and other industrial environments requiring dependable compressed air distribution.

The modular structure allows users to extend existing pipe networks when production layouts change. Additional branches, drops, valves, and connection points can be integrated without replacing the entire distribution network, making the system adaptable to factory expansion and equipment upgrades.

Complete Pipe and Fitting Selection

UPIPE provides a complete range of aluminum piping components for building an integrated compressed air distribution network. Pipe sizes are available from DN20 to DN200, with standard pipe lengths of approximately 5.8 m. Different pipe and fitting configurations can be selected according to required flow capacity, connection layout, and installation conditions.

The system can also incorporate accessories such as flowmeters and flexible hoses to support monitoring and connection requirements at different points of use. This complete component approach helps simplify sourcing and ensures compatibility throughout the piping installation.

Built for Long-Term Industrial Use

UPIPE focuses on providing aluminum compressed air piping solutions that combine efficient airflow, easy installation, corrosion resistance, and flexible expansion. From the main distribution line to individual equipment drops, the system is designed to provide a consistent and maintainable solution for industrial gas distribution.

For factories planning a new compressed air network, replacing aging steel pipes, or expanding an existing production line, UPIPE compressed air piping system provides a modular approach that supports installation efficiency, reliable air delivery, and long-term operational performance.
