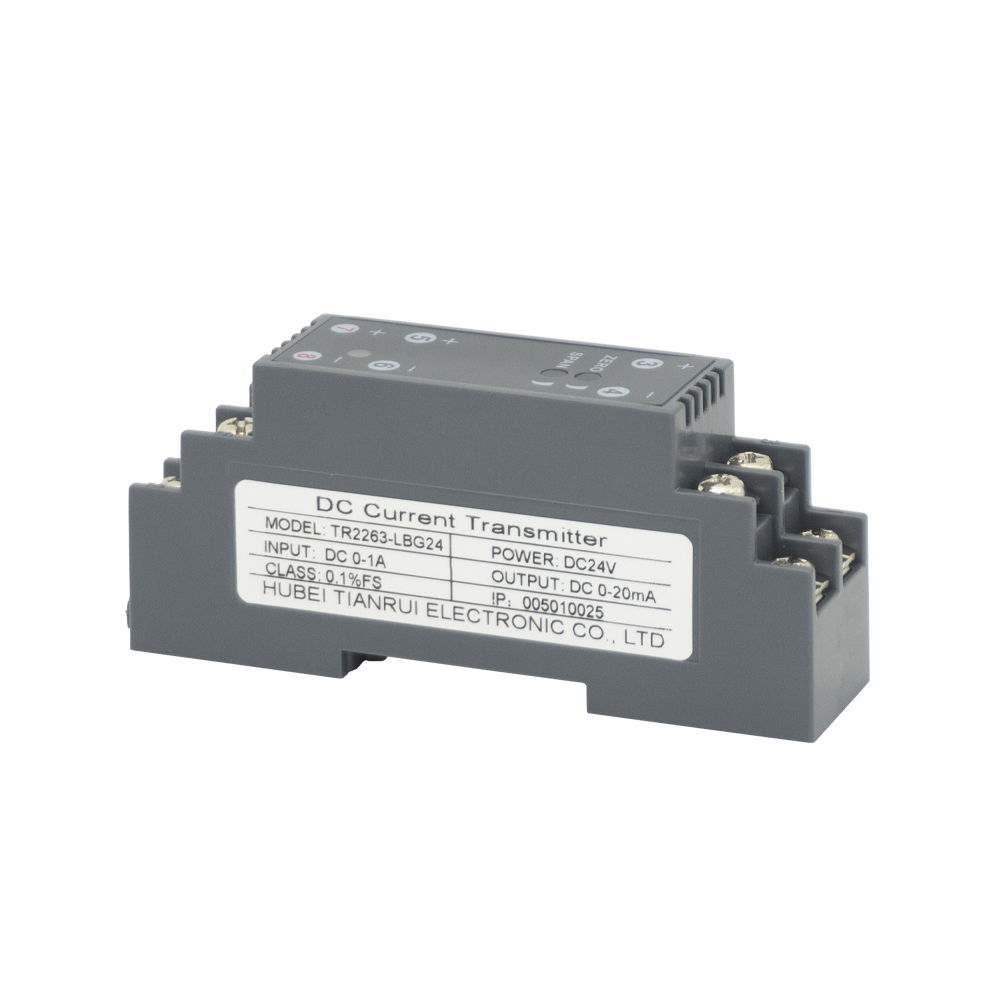

DC Current Transducer Input 0-1A, 0-5A, 0-10A, 4-20mA, 0-20mA Output 0-5V, 0-10V, 4-20mA, 0-20mA Current Sensor

Product Features

Direct DC Measurement: Capable of accurately measuring steady-state and variable DC currents, unlike AC-specific devices.

High Isolation Voltage: Provides excellent electrical separation between the measured circuit and the output signal, enhancing safety.

Wide Frequency Response: Can accurately track rapid changes in DC current, suitable for dynamic control applications.

Compact Size & Easy Installation: Modern designs offer small form factors and simple integration into existing systems.

Renewable Energy: Widely used in solar PV systems to monitor output from solar panels and charge controllers.

Industrial Controls: Essential for DC motor drives, battery monitoring, and electrolysis processes.

Transportation: Used in electric vehicles for battery management (BMS) and traction control, and in railway systems.

Power Supply & Welding Equipment: Provides critical current feedback for control and protection circuits.

Electrical Parameters	Primary Rated Input	0-1A, 0-5A, 0-10A, 4-20mA, 0-20mA	Secondary Rated Output	0-5V, 0-10V,4-20mA, 0-20mA
	Accuracy	0.1%FS	Input Impedance	Voltage output: ≥300kΩ Current output: ≤75Ω
	Output Load Resistance	RL≤650Ω	Current Consumption	≤30mA
	Response Time	≤10ms	Temperature Drift	≤ 0.005%FS/℃
	Insulation Resistance	≥100mΩ	Power Supply Voltage	12V-32V DC
Operating Environment	Ambient Operating Temperature	-20℃-+55℃	/	/

HUBEI TIANRUI ELECTRONIC CO.,LTD.

Add: No.8 Chuangye Road, Economic Development Zone, Tianmen 431700, Hubei, China

Website:www.hbtrec.com

E-mail: export@hbtianrui.com
