HD Series – Powering High-Performance Computing
The HD Series focuses on increasing capacitance density per unit area by employing a three-dimensional capacitor structure and advanced dielectric materials.

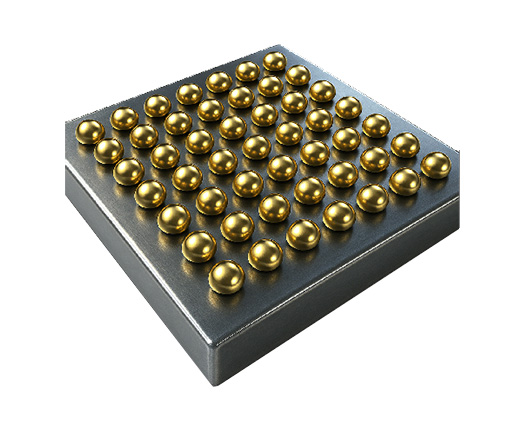

HD Series – High-Density Silicon Capacitors
|
Parameter |
Specificatio |
|
Capacitance Density |
0.35～2uF/mm2 |
|
Equivalent Series Inductance (ESL) |
< 20pH (Typical) |
|
Operating Voltage |
1.5V-4.5V DC |
|
Package Size |
Customized |
|
Typical Applications |
PDN for SoC/GPU/CPU, DDR power, IVR modules, advanced packaging |
Key Advantages
High capacitance per unit area, saves PCB space.
Low ESL design enhances high-frequency decoupling.
Suitable for chip-level power systems.
Small size, high capacitance, supports advanced packaging integration.
High density, low ESL, high reliability, customizable arrays.
HD Series (High-Density) – High-Density Silicon Capacitor Series
The HD Series focuses on increasing capacitance density per unit area by employing a three-dimensional capacitor structure and advanced dielectric materials. It achieves high capacitance and low ESL in extremely small packages. This series is suitable for PDN decoupling in SoCs, GPUs, and CPUs, DDR power conditioning, and IVR modules. It helps reduce the number of PCB-mounted capacitors and optimizes voltage stability and transient response.
