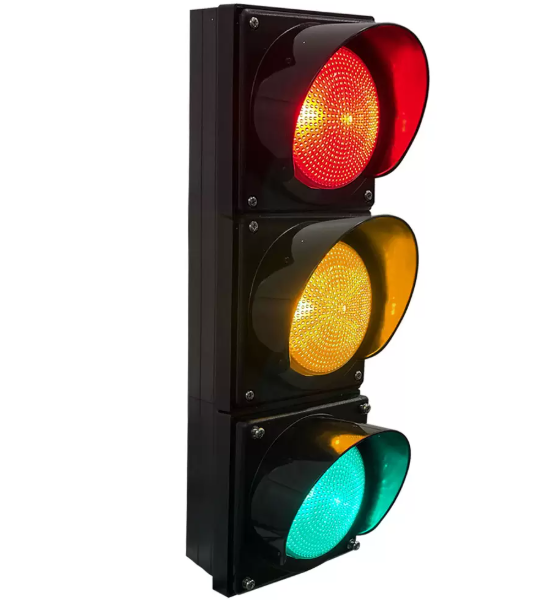

High Flux Red/Yellow/Green Full Ball Traffic Light
The High Flux Red/Yellow/Green Full Ball Traffic Light is a three-unit assembly.
The High Flux Red/Yellow/Green Full Ball Traffic Light is a three-unit assembly. The lamp core consists of a large-sized light source, three-layer optical lenses, a power supply unit, a lamp bowl, and an external heat dissipation module, among other structural components. The optical mechanism operates through three-layer optical processing to enhance the luminous efficiency, diffuse, and refocus the point light emitted from the light source, thereby generating a uniform surface light output. It is applicable to a wide range of traffic signal control intersections.
Product Introduction:
The High Flux Red/Yellow/Green Full Ball Traffic Light is a three-unit assembly. The lamp core consists of a large-sized light source, three-layer optical lenses, a power supply unit, a lamp bowl, and an external heat dissipation module, among other structural components. The optical mechanism operates through three-layer optical processing to enhance the luminous efficiency, diffuse, and refocus the point light emitted from the light source, thereby generating a uniform surface light output. It is applicable to a wide range of traffic signal control intersections.
| Product Model | JD100-3-FM35 | JD200-3-FM35 | JD300-3-FM35 |
| Light-Emitting Surface (LES) Size | 100mm | 200mm | 300mm |
| Housing Material | Polycarbonate housing | Polycarbonate housing | Polycarbonate housing |
| Mask Color | Coloured | Coloured | Coloured |
| Mask Shape | Arc-shaped | Arc-shaped | Arc-shaped |
| Operating Voltage / Frequency | AC85~264V/47-63Hz | AC85~264V/47-63Hz | AC85~264V/47-63Hz |
| LED Quantity | R/Y/G: 1pcs | R/Y/G: 2pcs | R/Y/G: 4pcs |
| Lamp Power Consumption | Red full ball ≤ 3 W Yellow full ball ≤ 3 W Green full ball ≤ 3 W |
Red full ball ≤ 8 W Yellow full ball ≤ 10 W Green full ball ≤ 12 W |
Red full ball ≤ 10 W Yellow full ball ≤ 13 W Green full ball ≤ 15 W |
| Luminous Intensity | 110cd~200cd | 230cd~350cd | 400cd~1000cd |
| LED Wavelength | Red: 616 – 628 nm Yellow: 589 – 592 nm Green: 500 – 510 nm |
Red: 616 – 628 nm Yellow: 589 – 592 nm Green: 500 – 510 nm |
Red: 616 – 628 nm Yellow: 589 – 592 nm Green: 500 – 510 nm |
| LED Lifespan | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours |
| Insulation Resistance | ＞2MΩ | ＞2MΩ | |
| Operating Temperature | -40℃ to +80℃ | -40℃ to +80℃ | -40℃ to +80℃ |
| Relative Humidity | ≤97%RH | ≤97%RH | ≤97%RH |
| Protection Grade | IP55 | IP55 | IP55 |
| Visual Distance | ≥300m | ≥300m | ≥300m |
| Packaging Specifications | 1 piece per box, Size: 48 × 17 × 19 cm, Weight: 3.1 ± 0.5 KG | 1 piece per box, Size: 95 × 29 × 23 cm, Weight: 7.9 ± 0.5 KG | 1 piece per box, Size: 112 × 39 × 28 cm, Weight: 13.5 ± 0.5 KG |
