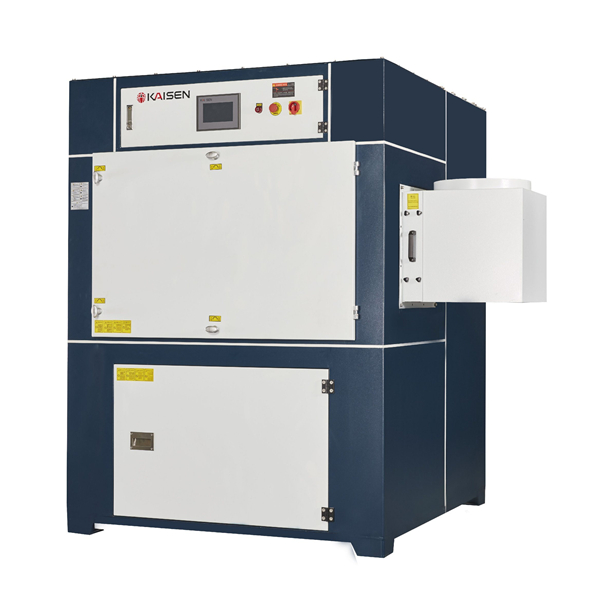

KSDC-8606B/B1 Centralized Dust Collector
86 series central dust collectors are the second generation of Kaisen centralized dust collector, which is more versatile.
Introduction:
86 series central dust collectors are the second generation of Kaisen centralized dust collector, which is more versatile. Upgraded PLC system supports multi-languages and easy to operate. Meanwhile, its compact design, small foot-print and high filtration efficiency are also favored by many laser machine manufacturers at home and abroad.
Parameters:
|
Model |
KSDC-8606B/B1 |
|
Fan Air Flow |
8000/12000±500 |
|
Inlet Air Flow |
6500/9500m3/h |
|
Motor Power |
7.5/11KW |
|
Power Supply |
3x380V/50Hz |
|
Filter Material |
Polyester + PTFE |
|
Filtration Area |
90㎡ |
|
Filtration Efficiency |
≥99.9% |
|
Filtration Precision |
≥0.3um |
|
Filter Cartridge |
6 Pcs |
|
Cleaning Method |
Automatic cleaning |
|
Compressed Air |
0.5~0.6Mpa |
|
Noise Level |
≤75±5 dB |
|
Dimension (WxDxH) |
1620×1750×2150mm |
|
Weight |
1050/1120±20kg |
Options & Accessories:
Independent electric control cabinet
Frequency converter
Explosion proof device
Anti-static filter cartridge
Ducting accessories
Spiral duct
Applications:
Multi-uints welding central dust collector
HAN'S Laser cutting dust collector case
Robot welding house fume disposal solution
Steel pipe plasma cutting disposal solution
ATEX Type central dust collector case
Plasma cutting dust collector case
