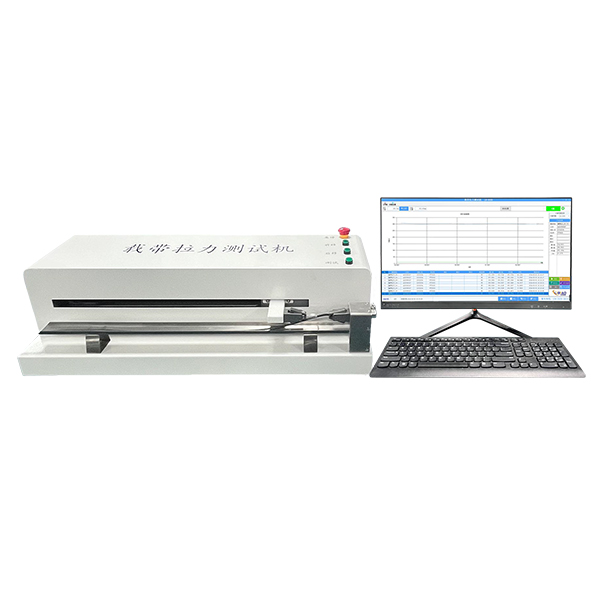

LB-800D Carrier Tape Adhesion Force Tester

The LB-800D is a high-precision force measurement and testing system designed for accurate mechanical performance evaluation. It is suitable for laboratory testing, quality control, and production inspection environments requiring stable and repeatable force data.

The system integrates precision sensors, automated data recording, and adjustable testing control to ensure reliable measurement results across different applications.

Basic Specifications

• Product Model: LB-800D

• Minimum Order Quantity (MOQ): 1 set

• Payment Method: T/T

• Standard Delivery Time:

• Standard models: within 10 days

• Customized configurations: subject to requirements

• Packaging: Wooden case for export protection

• Customization Options: Available (color, logo, test fixtures, modules, etc.)

• HS Code: 44031644Q9

• Certification: ISO9001

Dimensions & Installation

• Equipment Size:

• Length: 600 mm

• Width: 220 mm

• Height: 220 mm

• Footprint: Compact structure suitable for laboratory and production environments

• Maximum Travel Distance: 500 mm

Functional Features

• Equipped with a high-precision force measurement system for accurate testing results

• Software supports parameter input and test condition configuration

• Automatic recording of test data with export function for further analysis

• Built-in high-sensitivity force sensors ensure measurement stability and accuracy

• Provides real-time display of maximum, minimum, and average force values

• Adjustable testing speed to meet different application requirements

• Ergonomic structural design for simplified operation and user convenience

• Stable system operation with minimal manual intervention required

Technical Parameters

• Model: LB-800D

• Measurement Accuracy: ±0.25%

• Load Range: 0–500 g (configurable; multiple sensor ranges available)

• Worktable Resolution: 0.002 mm

• Worktable Stroke: up to 500 mm

• Motion System: Coaxial servo motor with micro-drive structure for long-term stability

• Control System: Windows-based software interface

• One-click data display

• Force distribution curve visualization

• Real-time data export capability

• Power Supply: 220V ±5%

• Power Consumption: 150W (maximum)

Service & Support

• Full-service support including pre-sales consultation, in-sales assistance, and after-sales training

• Online technical support and engineering consultation available

• One-year warranty covering repair and component replacement

• Free sample testing support provided for evaluation purposes

Production Capacity

• Annual production capacity: up to 200 units/year

Key Advantages

The LB-800D is designed for stable performance in continuous testing environments. Its combination of precision sensing, automated data handling, and servo-controlled motion system ensures consistent measurement output, making it suitable for quality inspection and laboratory-grade force testing applications.
