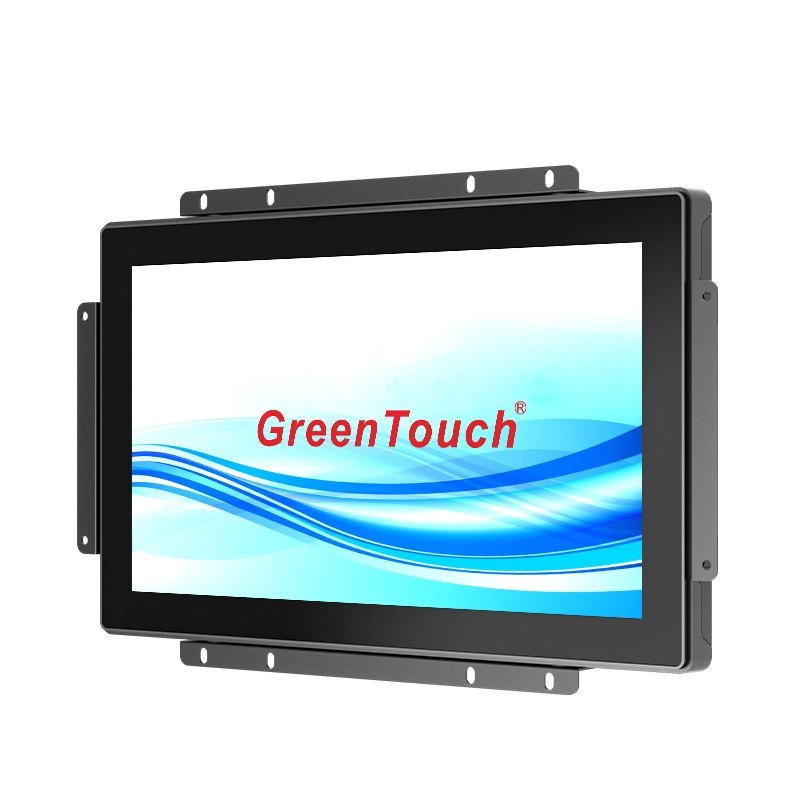

Open Frame Touch Monitor 7-55 Inches (2C Series)

Product Introduction

Open Frame Touch Monitor 7-55 Inches (2C Series) is an industrial open-frame touch display designed for applications requiring reliable touch interaction, flexible installation, and long-term operation. Developed by ShenZhen GreenTouch Technology Co.,Ltd., the 2C series offers a wide range of screen sizes from 7 to 55 inches, supporting applications such as industrial control, terminal equipment, human-machine interaction, smart healthcare, and smart living systems.

The series combines an industrial-grade LCD panel, projected capacitive touch technology, multiple video interfaces, and flexible mounting options. Its compact open-frame structure makes it suitable for cabinet integration, wall mounting, and desktop installation.

Product Features

Industrial-Grade Display

The 2C series uses industrial-grade LCD panels designed for long operating life and stable performance in demanding commercial and industrial environments. Full HD and UHD resolution options are available according to model and application requirements.

10-Point Capacitive Touch

The touch panel adopts an optically bonded structure with the LCD panel and supports projected capacitive 10-point touch. Sensitive touch response and accurate positioning provide smooth interaction for control panels, terminals, and human-machine interfaces.

Front IP65 Protection

The front surface can achieve IP65 protection against dust and water ingress, making the monitor suitable for applications where front-side environmental protection is required.

Reliable 24/7 Operation

Dense ventilation holes are designed to improve heat dissipation and support stable continuous operation. The structure is suitable for applications requiring extended or 24/7 operating cycles.

Compact Open-Frame Structure

The monitor features a narrow-frame design and industrial plastic front shell combined with a durable black metal frame. Its open-frame construction allows convenient integration into cabinets, kiosks, machines, control panels, and other equipment.

Multiple Interface Options

The 2C series provides a variety of connection interfaces, including:

• VGA

• DVI

• HDMI

• DisplayPort (DP)

• MIC

• AUDIO

The interfaces are positioned on the rear and face downward, helping simplify cable routing and installation in different environments.

Flexible Power Control

The monitor can be configured to automatically power on or off according to the presence of power or a video signal, helping meet different equipment integration requirements.

Available Screen Sizes

The 2C series provides multiple aspect ratios and screen sizes to accommodate different equipment and installation requirements.

16:10: 10.1", 22"

5:4: 8", 9.7", 10.4", 12.1", 15", 17", 19"

16:9: 7", 8", 13.3", 14", 15.6", 18.5", 21.5", 23.6", 23.8", 27", 32", 43", 50", 55"

The wide size selection makes the series suitable for both compact embedded equipment and large-format industrial interfaces.

Mounting Options

Embedded Mounting

The monitor is supplied with an external mounting bracket featuring screw holes for recessed cabinet installation. The open-frame design allows the display to be integrated directly into machines, cabinets, kiosks, and control panels.

Wall Mounting

A universal 75 × 75 mm or 100 × 100 mm VESA mounting pattern is available on the rear of the monitor. It can be installed in either landscape or portrait orientation using compatible wall brackets, monitor arms, ceiling mounts, or pole mounting systems.

Desktop Mounting

The 2C series supports desktop installation through standard 75 × 75 mm or 100 × 100 mm mounting holes. Compatible stands or bases can be attached according to the required configuration.

The mounting structure supports both horizontal and vertical installation and can be disassembled when equipment configuration changes.

Customization Options

For OEM and project-based applications, Open Frame Touch Monitor 7-55 Inches (2C Series) can be customized according to project requirements.

Available customization options include:

• Screen size

• Logo

• Casing

• Color

• Packaging

• Touch configuration

• Surface treatment

• Installation requirements

Customization allows the monitor to be adapted to different equipment designs, branding requirements, and application environments.

Surface Treatment Options

Different surface treatments can be selected according to the application:

• AG: Anti-glare

• AR: Anti-reflective

• AF: Anti-fingerprint

• Antibacterial coating: Optional

These options can help improve screen visibility, touch usability, and surface protection in specific operating environments.

Technical Specifications

Main Applications

Open Frame Touch Monitor 7-55 Inches (2C Series) can be used in a wide range of professional applications, including:

• Industrial control systems

• Human-machine interfaces

• Industrial automation equipment

• Machine control panels

• Embedded terminals

• Self-service kiosks

• Smart healthcare equipment

• Smart living systems

• Commercial terminals

• Cabinet-mounted displays

• Information terminals

• OEM equipment

• Customized interactive devices

Advantages for B2B Buyers

Wide Size Selection

Screen sizes from 7 to 55 inches provide flexible choices for compact control systems, embedded equipment, and large-format interactive applications.

Easy Equipment Integration

The open-frame structure and multiple mounting configurations simplify integration into cabinets, machines, kiosks, and other equipment.

Multiple Connectivity Options

HDMI, VGA, DVI, DP, MIC, and AUDIO interfaces support different host devices and system configurations.

Industrial-Oriented Design

Industrial-grade LCD panels, front IP65 protection, ventilation design, and durable housing make the series suitable for demanding operating environments.

OEM/ODM Support

Size, logo, casing, color, packaging, and other specifications can be customized for OEM projects and equipment manufacturers.

Quality & Certifications

The 2C series can be supplied with multiple certifications and compliance options, including CE, FCC, RoHS, CB, EMC, HDMI, CCC, IP65, and IK08, depending on the specific configuration.

Why Choose 2C Series Touch Monitors?

• 7-55 inch comprehensive size range

• Industrial-grade LCD panel

• 10-point projected capacitive touch

• Optically bonded touch and LCD structure

• IP65 front protection

• Optional AG, AR, AF and antibacterial surface treatments

• VGA, DVI, HDMI, DP, MIC and AUDIO interfaces

• Embedded, wall and desktop mounting

• Landscape and portrait installation support

• Flexible OEM/ODM customization

• Suitable for long-term and 24/7 operation

Supplier Information

ShenZhen GreenTouch Technology Co.,Ltd. provides touch display solutions for industrial, commercial, medical, automation, and OEM applications. The 2C series is designed to provide flexible open-frame integration, reliable touch performance, multiple interface options, and a broad selection of screen sizes.

For projects requiring a customized Open Frame Touch Monitor 7-55 Inches (2C Series), buyers can specify screen size, resolution, touch requirements, mounting method, interface configuration, surface treatment, logo, casing, and packaging requirements for product selection and customization.
