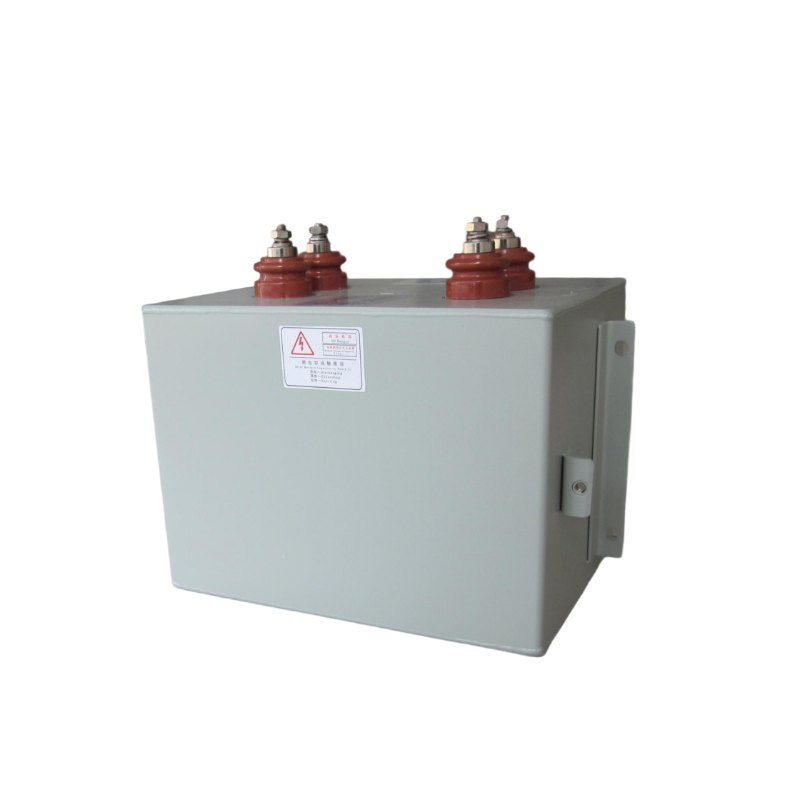

Rail Transportation DC Link Capacitor

Product Introduction

The Rail Transportation DC Link Capacitor is a high-voltage energy storage and voltage stabilization component designed for modern railway electrical systems. It is used in traction converters and auxiliary power systems of electric trains, metros, trams and other rail vehicles.

Installed between the input rectifier and output inverter, the capacitor provides an energy buffer, helps stabilize the DC bus voltage, and supports reliable power conversion for propulsion and onboard electrical systems.

Designed for demanding rail applications, this Rail Transportation DC Link Capacitor combines high voltage capability, large capacitance, long service life and flexible enclosure options.

Key Features

• Designed for railway traction and auxiliary power systems

• High-voltage DC bus operation

• Rated voltage from 1200V to 4000V DC

• Rated capacitance from 1500μF to 6000μF

• Wide operating temperature range

• Expected service life up to 100,000 hours

• Stable energy storage and DC voltage stabilization

• Suitable for electric trains, metros and trams

• Multiple housing and impregnation options

• Fixed mounting structure with lifting lugs

• Suitable for demanding railway environments

Main Technical Specifications

Railway Traction Applications

The Rail Transportation DC Link Capacitor is primarily used in traction converters. During power conversion, it functions as an energy buffer between the rectifier and inverter, helping maintain a stable DC link and supporting consistent operation of the traction system.

It can be used in various railway vehicles, including:

• Electric trains

• Metro trains

• Trams

• Urban rail vehicles

• Railway traction equipment

• Auxiliary power systems

• Traction converter systems

High-Voltage DC Link Design

With rated voltage options from 1200V to 4000V DC and capacitance options from 1500μF to 6000μF, the capacitor can be configured for different railway power conversion requirements.

Its high-capacitance design provides effective energy buffering and DC bus stabilization, helping reduce voltage fluctuations during changing traction loads.

Long Service Life

Railway equipment requires components capable of continuous operation over long service periods. This Rail Transportation DC Link Capacitor has an expected lifespan of up to 100,000 hours, supporting long-term operation in traction and auxiliary power applications.

The operating temperature range of -40°C to +70°C allows the capacitor to work under a wide range of environmental conditions.

Housing Options

Different enclosure configurations are available according to application requirements.

The capacitor can use a rectangular austenitic stainless steel housing or a resin housing. These options provide flexibility for equipment integration and mechanical installation.

The fixed mounting design includes lifting lugs and bolted capacitor fixing, helping simplify installation and maintenance within railway power equipment.

Impregnation Options

Depending on the required electrical and environmental characteristics, different impregnation solutions are available:

• Dry-type construction

• Low-density high-performance resin potting

• Oil-immersed construction

• Silicone oil impregnation

The appropriate construction can be selected according to the traction converter design, installation environment and required operating conditions.

Product Advantages

The Rail Transportation DC Link Capacitor provides several advantages for railway power conversion systems:

• High voltage capability

• Large capacitance range

• Wide operating temperature range

• Long expected operating life

• Reliable DC energy buffering

• DC voltage stabilization

• Flexible enclosure configurations

• Multiple impregnation technologies

• Fixed mounting for railway equipment

• Suitable for traction and auxiliary systems

Application Areas

This DC link capacitor is suitable for railway electrical systems requiring stable and reliable DC energy storage, including:

Railway Traction: Used in traction converters to stabilize the DC link and support propulsion power conversion.

Metro Systems: Suitable for metro traction equipment and auxiliary electrical systems.

Trams: Designed for power conversion systems used in modern urban tram vehicles.

Electric Trains: Applicable to high-voltage traction converter systems in electric railway vehicles.

Auxiliary Power Systems: Can be integrated into auxiliary converters and onboard power equipment.

Selection Considerations

When selecting a railway DC link capacitor, buyers should consider:

• Required DC rated voltage

• Required capacitance

• Operating temperature

• Available installation space

• Housing material

• Mounting configuration

• Impregnation method

• Traction converter design

• Required service life

• Railway application environment

The final capacitor configuration should be selected according to the electrical parameters and mechanical requirements of the target railway power system.

B2B Product Information

The Rail Transportation DC Link Capacitor is suitable for railway equipment manufacturers, traction system integrators, electrical equipment suppliers and rail transportation projects requiring high-voltage DC energy storage components.

Its combination of high voltage, large capacitance, long service life and multiple construction options provides flexible solutions for railway traction and auxiliary power applications.

FAQ

Q1: What is a DC link capacitor used for in rail transportation?
It provides energy buffering and DC voltage stabilization between the rectifier and inverter in traction converters and auxiliary power systems.

Q2: What voltage range is available?
The rated voltage range is 1200V to 4000V DC.

Q3: What capacitance range is available?
The rated capacitance range is 1500μF to 6000μF.

Q4: What is the expected lifespan?
The expected lifespan can reach 100,000 hours under specified operating conditions.

Q5: What housing options are available?
Rectangular housings can be made from austenitic stainless steel or resin, depending on application requirements.

Product Summary

The Rail Transportation DC Link Capacitor is a high-voltage capacitor solution for railway traction converters and auxiliary power systems. With 1200–4000V DC rated voltage, 1500–6000μF capacitance, -40°C to +70°C operation and an expected lifespan of up to 100,000 hours, it is suitable for electric trains, metros, trams and other rail vehicles. Wuxi Power Filtering Co., Ltd. provides DC link capacitor solutions for demanding railway power conversion applications.
