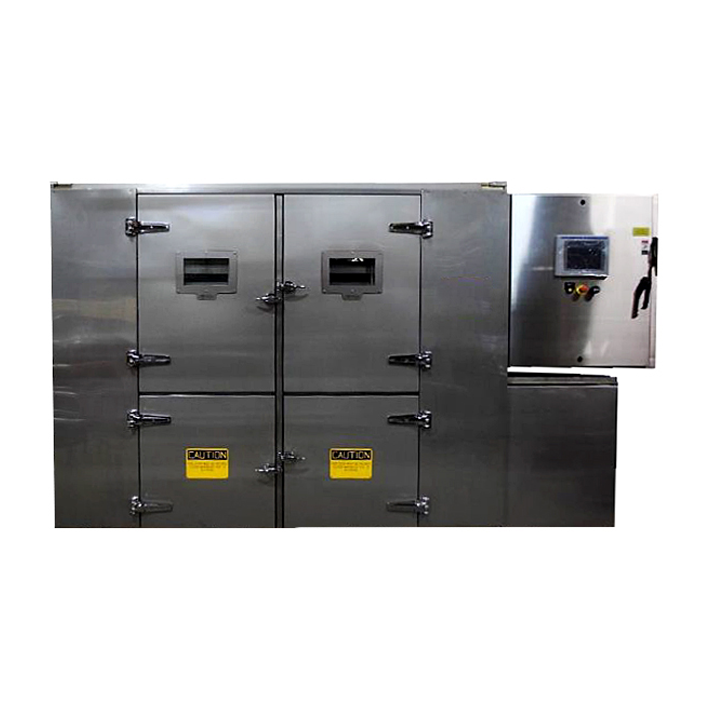

Tray Dryer

– Nut production capacity: 500 kg/h – 10 t/h.

– Production capacities in rubber, chemical fiber, and tobacco industries span from thousands to hundreds of thousands of tons per year.

The Tray Dryer is a high-performance system resulting in fast, uniform
drying. Available in 10-tray or 20-tray dryers, these machines are extensively
used for powdered, granulated, or semi-solid materials in batch operations.

Key Features

Adjustable airflow velocity, temperature and humidity

Easy operation

Dryers are shipped factory assembled to reduce installation time and cost

Advantages

The Tray Dryer is versatile for a wide range of products and operating
conditions. You can adjust the airflow velocity, temperature, and humidity.

Standard Features

10-tray model is 83 square feet

20-tray model is 166 square feet

Stainless steel panels built to minimize heat loss

Recirculation fan included with 1.5 horsepower V-belt motor drive

Perforated plenum plates equalize airflow across product trays with air
velocity capability up to 200 feet per minute

Direct gas fired package with operating temperature up to 450 degrees
Fahrenheit

Optional Features

Steam or electric heating available

Explosion-proof electrical configuration

Choose among carbon, stainless steel, aluminum or glass fiber materials for
trays

Tray bottoms can be solid, perforated, or screen-supported

Programmable logic or timer control available

Explore This Product

Flexible

Adjust the airflow, temperature or humidity levels according to your
needs.

High Performance

Fast, uniform drying for all of your products.

Versatile

Can dry a wide variety of products in various operating conditions.

Customizable

Tray dryers come in a variety of materials, such as stainless steel or
aluminum.

Features

Uniform drying that meets your unique needs

The Tray Dryer offers a versatile, high-performance drying system that you
can customize for your needs. Adjust the temperature, airflow, and humidity,
along with tray size and material.
