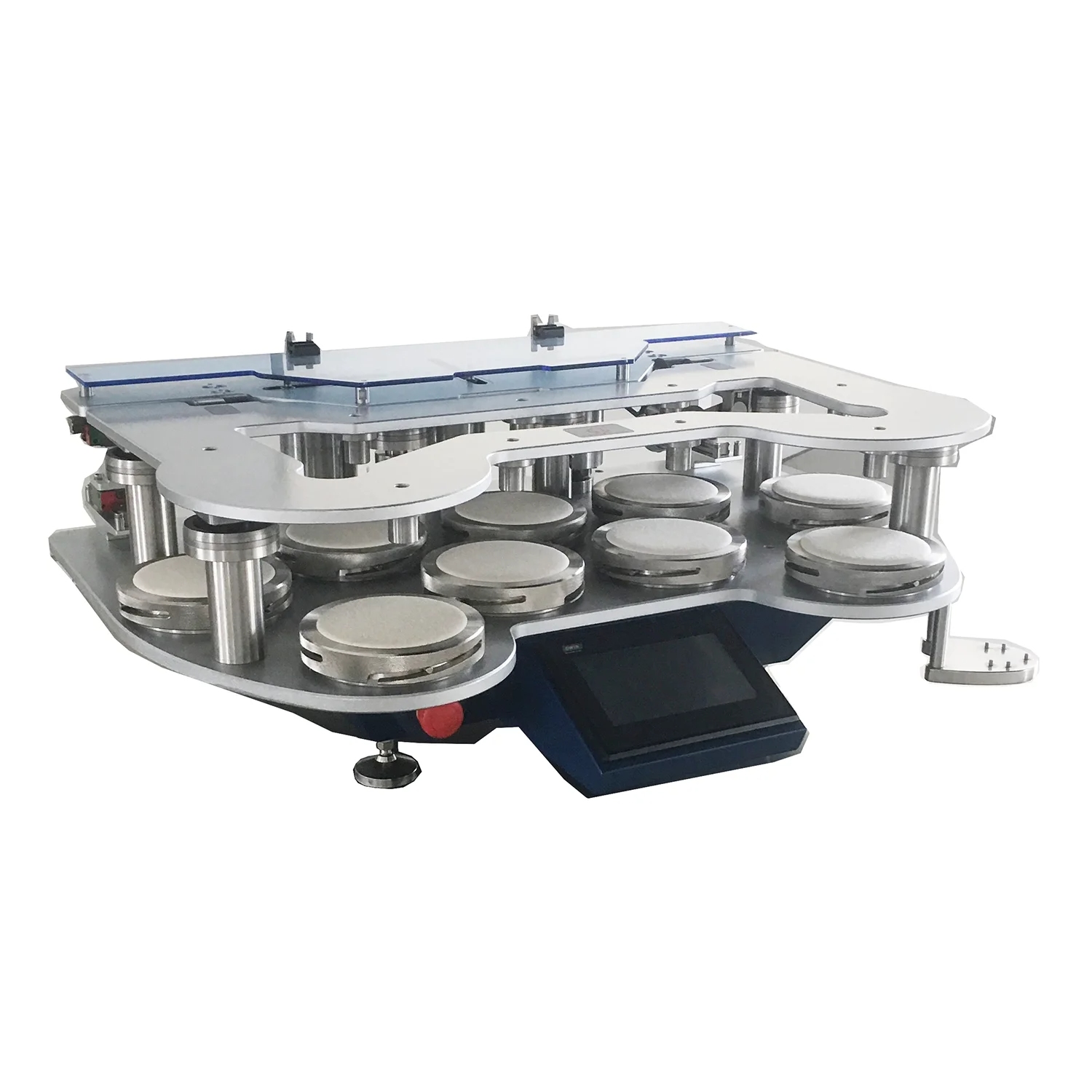

YG401H-III Abrasion Tester Usage Inspection Instrument (Martindale)

Scope:

Tests of wear resistance and pilling degree of knitted, wool, synthetic and synthetic leather under pressure.

Standards:

GB/T4802.2, GB/T21196, ISO5470-2 ISO12945.2

ISO 12947.2, BS3424, BS EN 388/530, JIS L1096, GB/T19089

ASTM D4966/4970, GB/T4802.2 is the main standard.

Technical parameter:

1. Workstation: 9

2. Count display:

Preset Count Display: 0~999999

Cumulative Count Display: 0~999999

3. Abrasion resistance test pressure:

A: Cloth sample holder: 198g±2g

B: Cloth sample heavy hammer: 395g±2g (The converted pressure is 9Kpa)

C: Furniture decoration sample heavy hammer: 594g±2g(Converted into pressure is12Kpa)

4. Pilling test pressure:

A: Cloth sample holder 155g±1g

B: Cloth sample heavy hammer: 260g±1g

5. Charging weight quality: 2500g±250g

6. Grinding table diameter: φ121

7. Effective friction diameter of grinding head:

A: Abrasion resistance test: ø28.65mm

B: Pilling performance test: ø90mm

8. Running speed: 23.8±2.5rpm, 47.5±2.5rpm, 71.3±2.5rpm

9. Dimensions: 880mm*700mm*390mm

10. Weight: 117Kg

11. Power supply and power: AC220V±10%/50Hz 400w

Product characteristics:

1.Import servo motor control to ensure long-term stability of the instrument

2.The control guide plate uses a stress-relief process to ensure that the large and small Lissajou curve tracks will not be deformed in long-term use.

3.Quick locking ring design for workstation facilitates sample installation

4.The imported color touchscreen control can independently display the test times of each individual ,can ensure different batches of sample testing.

5.Machine has counting automatic alarm stop function customer is free of long-term instrument operation .

6.The unique design of high-precision processing technology and fixture ensures the integrity and consistency of the pilling area of fabric ,customer can evaluate the results.
