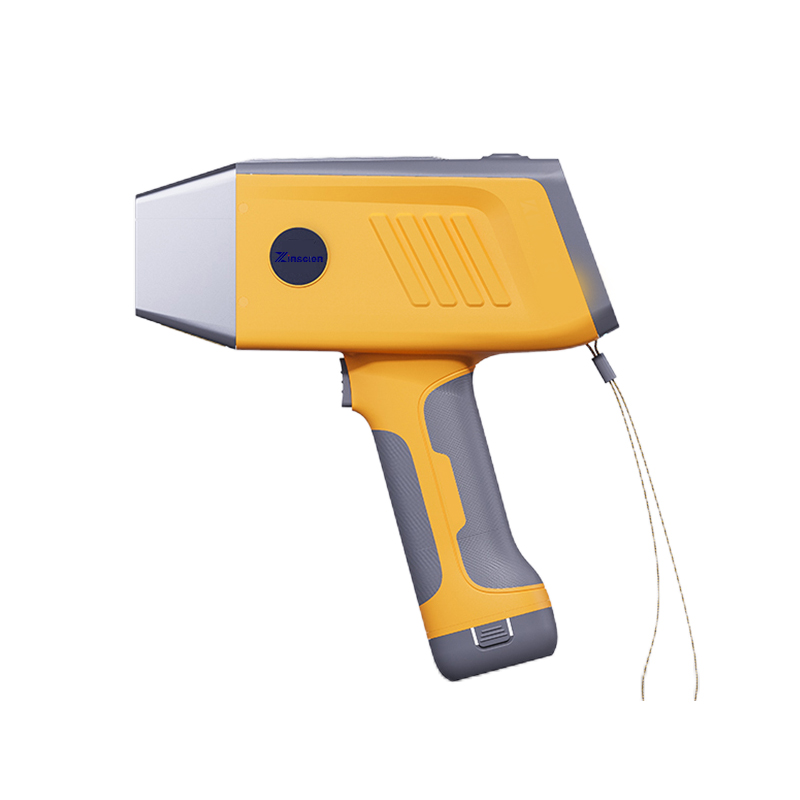

Handheld X-ray Fluorescence Spectrometer

X-ray Fluorescence Technology

• The ZNX-RAY analyzers are configured with powerful miniature X-ray tubes, Si-PIN detectors or highly advanced silicon drift detectors (SDDs), specialized filters, and multibeam optimization for the ultimate in XRF field analysis. The ZNX handheld XRF analyzers are optimized to be responsive and effective to meet the needs of both economically and regulatory-driven businesses, from recycling, mining, and fabrication to environmental assessment and consumer product safety, and to scientific research and education.

• The ZNX-RAY handheld XRF analyzer has a forward-looking new ergonomic body structure, which embodies the latest technology in the fields of electronics, component design and software development.

• ZNX-RAY's X-act Count technology can not only detect more materials quickly but also show better sensitivity and accuracy compared with previous detections. In the detection of most elements, the detection time is reduced by half, and the detection accuracy remains unchanged or higher, therefore the detection volume has been greatly improved.

Features and Benefits:

• Powerful 4 W X-ray tube for optimum element excitation .

• Tight geometry for exceptional LODs and fast analysis

• Fast data acquisition for faster testing time

• Floating point processor: provides more calculations in less time and leverages more advanced calibration algorithms

• You can use the built-in Bluetooth® technology for data input and output In most countries

• Analysis indicator lights visible from 360° to help ensure safe use

• Advanced color touch LCD screen for clarity, brightness, responsiveness, and energy efficiency for indoor/outdoor use

• Superior accelerometer to enable the sleep mode for energy saving when the analyzer is not in use and allowing the recording of impacts for better management of the analyzer;

• DELTA PC software for enhanced data analysis, calibration modeling, and optional closed beam workstation operation;

• USB interface port for high-speed downloads and seamless PC control;

• Ergonomic rubberized handle for enhanced grip;

• Hot-swap batteries to maximize uptime and productivity;

About Options：

A variety of accessories and options are available to take full advantage of the ZNX-RAY handheld XRF in the field. From portable bench-top setups for prepped samples to XRFGPS-GIS setups for full-scale, large area, in-situ instant metal mapping, these accessories help maximize the efficiency of field XRF testing.

ZNX-RAY Portable Workstation

The portable workstation with integrated safety-lock and shielding is convenient for analyzing bagged, prepped, and liquid samples, multiple small objects, and filters or dust wipes. A PC is connected for remote control of this closed-beam ZNX–RAY analyzer setup.

ZNX-RAY Holster

The holster keeps the ZNX–RAY analyzer by your side and within easy reach.

ZNX-RAY Soil Foot

The soil foot provides hands-free analysis with the ZNX–RAY analyzer for long testing times.

ZNX-RAY FlexStand

Lightweight, mobile test stand with shielded sample chamber for testing small samples, sample cups, and

bagged samples.

ZNX-RAY 50kV Probe Shield

The safety shield provides additional shielding from open beam radiation for field use of the full 50 kV power.

ZNX-RAY Soil Stick

The soil stick minimizes wear and tear on your back and knees and provides push button operation of the ZNX-RAY analyzer from an adjustable height. It's most applicable for in-situ testing on large scale soil geochemistry and environmental programs.

ZNX-RAY Xplorer

ZNX–RAY XRF-GPS-GIS Xplorer configuration provides seamless connectivity between XRF and GIS for rapid targeting and real-time decision-making.
