Industrial Filtration Solutions for Compressed Air in 2026

Why Compressed Air Purity Matters Across Modern Industry

Compressed air is often called the "fourth utility" in industrial operations, powering everything from semiconductor cleanrooms to pharmaceutical filling lines. Yet raw compressed air carries moisture, oil aerosols, and particulate contamination that can compromise product quality, damage equipment, and increase downtime. This is where industrial filtration solutions for compressed air and process fluids become a critical part of manufacturing infrastructure rather than a peripheral accessory.

Wuxi Yuanmei Filtration & Purification Equipment Co., Ltd., founded in January 2016 and headquartered in Wuxi, Jiangsu Province, China, has spent more than 10 years focused specifically on this challenge. Operating under the brand name Yuanmei Filtration (also referenced as YM Filtration), the company positions itself as a one-stop innovative manufacturing service provider in the global compressed air precision filtration field, covering product design, manufacturing, technical support, and after-sales service.

What Defines a Reliable Filtration Solution

Selecting a compressed air filtration system involves evaluating several interlocking factors: filtration precision, pressure compatibility, material durability, and compliance with recognized international standards. Yuanmei Filtration’s ACF Series Compressed Air Precision Filters illustrate how these factors converge in a single product line.

The ACF Series is built to meet ISO 8573-1:2010 Class 0/1 compressed air quality standards, achieving 0.01μm ultra-fine filtration with residual oil content ≤0.001ppm and particle count (0.1-0.5μm) ≤20,000 particles/m³. This level of purity is required in sectors where even microscopic contamination carries measurable risk—semiconductor fabrication, lithium battery assembly, sterile pharmaceutical filling, and food and beverage processing.

Beyond raw filtration numbers, the ACF Series offers configurable C/T/A/F/H grade filter elements, spanning coarse filtration (3μm) to ultra-high efficiency oil vapor removal (0.003ppm residual oil). Standard working pressure is 1.0MPa, with an optional high-pressure version rated up to 8.0MPa (80bar) for demanding industrial systems. Housings are available in 304/316L stainless steel with a smooth inner wall (Ra≤0.3μm) for corrosion resistance and ease of cleaning, while an optimized fluid channel design keeps pressure drop at ≤0.02MPa under rated flow.

Housing Construction and Material Engineering

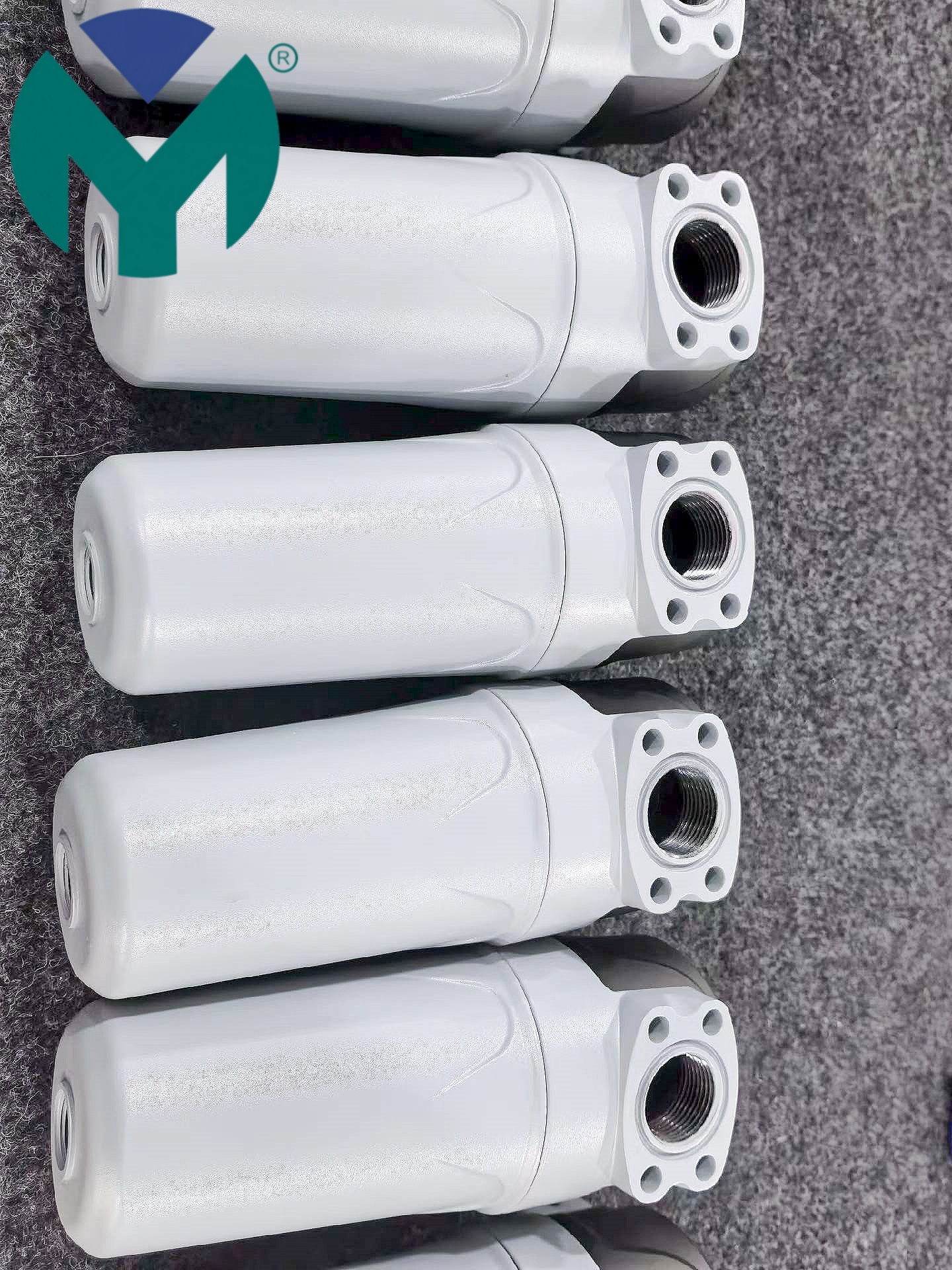

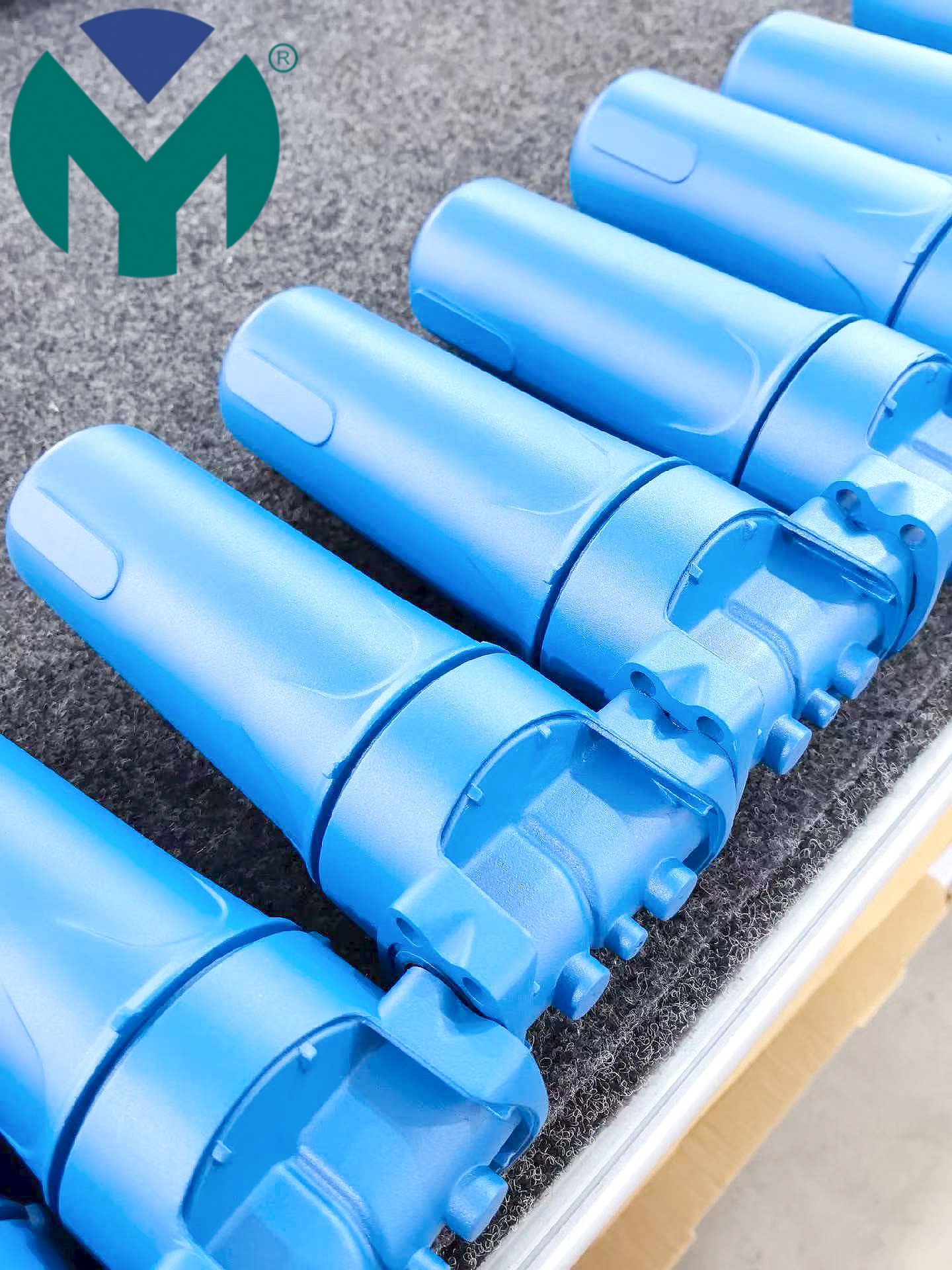

For applications requiring extreme pressure tolerance, the ACF Series flagship line uses housings crafted from aviation-grade silicon-aluminum alloy through one-step die-casting, rated up to 4.0 MPa (40 bar). This construction is paired with multi-layer corrosion protection—internal electrophoretic coating combined with external electrostatic epoxy spraying—to withstand acids, alkalis, and humidity in harsh industrial settings. The housing is also 30% lighter than traditional stainless steel filters, which reduces installation stress and allows more flexible system layout.

For extreme corrosion scenarios involving strong acids or chlorinated media, 316L stainless steel or PTFE-lined housings are available, supporting continuous operation at temperatures up to 260℃ and resistance across the full pH 0–14 range.

Filtration Media and Patented Sealing Technology

Filter element performance depends heavily on media selection. Yuanmei Filtration offers borosilicate glass fiber composite media, delivering 99.9% efficiency for 0.01–1μm particles at operating temperatures up to 280℃; PTFE membrane media, offering chemical inertness and a sterilization rate ≥99.999% suited to pharmaceutical and food-grade use; and 316L sintered mesh or felt, which is backwashable and rated for 450℃ high-temperature oil/gas filtration.

A distinguishing structural feature is the patented bayonet lock design (Patent No.: CN222427372U), which enables tool-free, leak-proof element replacement in 60 seconds. FKM/PTFE seals extend the operating range from -20℃ to 280℃, maintaining zero leakage under high pressure and thermal cycling.

Engineering for Energy Efficiency

Reducing energy consumption is a recurring theme in Yuanmei Filtration’s product design philosophy. The company’s R&D team applies CFD (Computational Fluid Dynamics) simulation to optimize internal flow channels, reducing turbulence and achieving uniform airflow distribution. This minimizes pressure drop—down to ≤70 Pa for standard elements—and reduces energy consumption by 15–20% compared to competitive models. A patented 3D integrated ring drainage structure further eliminates dead zones, preventing condensate accumulation and secondary contamination, which is particularly important in high-humidity or corrosive gas applications.

Compatibility Without System Redesign

One practical concern for facility managers is whether adopting a new filtration supplier requires reconfiguring existing infrastructure. Yuanmei Filtration addresses this through cross-brand replacement compatibility: filter elements are designed to directly replace those used by more than 30 international brands, including Atlas Copco, Parker, and Hankison, achieving 1:1 dimensional, performance, and installation compatibility. Connection standards include G thread (1/2"-3") and DN flange (DN65-DN300), with customizable NPT thread options for international matching, meaning no pipeline modification is typically needed.

Quality Assurance and Certification Framework

Trust in filtration equipment is ultimately built on verifiable compliance. Yuanmei Filtration holds National High-Tech Enterprise certification, ISO 9001:2015 Quality Management System certification (valid until December 2028), and ISO 14001:2015 Environmental Management System certification (also valid until December 2028). Products and processes are supported by GMP and FDA compliance for stainless steel filter housings polished to Ra ≤ 0.8μm, meeting pharmaceutical and food hygiene standards, alongside ISO 8573-1:2010 Class 1 compressed air quality standards for semiconductor-grade purity requirements.

Every unit undergoes 100% factory inspection covering pressure, leakage, and filtration efficiency verification, and the company operates an ISO 8573-1 compliant testing laboratory equipped with a PC400 particle counter and an OIL-Check400 residual oil detector.

Applications Across Critical Industries

The breadth of Yuanmei Filtration’s technical solutions reflects the diversity of industries it serves. In semiconductor manufacturing, ISO 8573-1 Class 0 ultra-pure air solutions combine anti-corrosion 316L materials with low-particle contamination control. In medical and pharmaceutical settings, sterilization-grade filtration is paired with GMP-compliant documentation and traceable material and production processes. In new energy and lithium battery production, filtration systems are engineered for anti-electrolyte corrosion resistance, high dust-holding capacity, and moisture-free air supply.

A Full Product and Service Matrix

Beyond the ACF Series, the product portfolio includes UHP/YM-G Series High-Pressure Filters (80bar), YM-CJ Series Stainless Steel Sterile Filters, FM Series Large-Flow Flange Filters, MS Series Precision Filter Elements, activated carbon oil-vapor removal elements, YWS/YFWS gas-water separators, XY Series pneumatic silencers, and KS Series air diffusers for dryer towers. Supporting services span custom design and OEM/ODM development, on-site commissioning and installation, air quality testing and performance verification, after-sales warranty and maintenance, and global delivery and logistics support—typically 7-15 working days for standard products and 3-5 days for urgent orders.

Conclusion

For organizations evaluating industrial filtration solutions for compressed air and process fluids, the decision ultimately rests on measurable performance data, certified compliance, and proven compatibility with existing systems. Wuxi Yuanmei Filtration & Purification Equipment Co., Ltd. brings together over 10 years of specialized experience, a patented technology base, and a product architecture engineered around ISO 8573-1 standards to meet the purity, pressure, and durability requirements found across semiconductor, pharmaceutical, food and beverage, and new energy applications.
