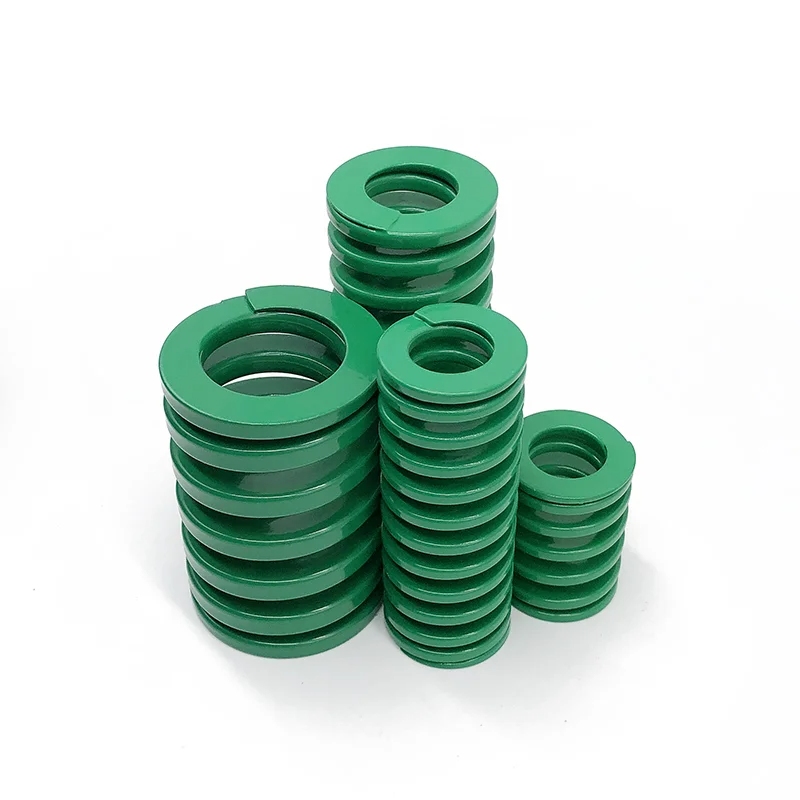

Light Duty Die Springs

Product Description

Light Duty Die Springs are precision compression springs designed for applications requiring reliable force, long service life, and stable performance under repeated compression. They are widely used in dies, molds, stamping equipment, automation machinery, and other industrial systems where space is limited but consistent spring force is required.

Manufactured from high-quality spring steel and processed through precision heat treatment, these die springs provide excellent elasticity, fatigue resistance, and dimensional stability for continuous industrial operation.

Features

• High-quality spring steel material

• Stable compression force throughout the working stroke

• Excellent fatigue resistance for repeated cycling

• Compact design suitable for limited installation spaces

• Precision manufacturing with consistent dimensions

• Long service life under continuous operation

• Suitable for high-frequency industrial applications

• Available in multiple sizes and load ratings

Available Sizes

A complete range of standard specifications is available to meet different equipment requirements.

Typical dimensions include:

• Outside Diameter (OD): 10 mm – 63 mm

• Free Length: 25 mm – 305 mm

• Various spring rates and working loads

• Multiple compression travel options

Custom sizes and special specifications can also be produced according to customer drawings or technical requirements.

Material

• Premium alloy spring steel

• Precision heat-treated

• High-strength compression spring material

• Excellent wear and fatigue resistance

Surface treatment options are available according to application requirements.

Performance Advantages

Stable Load Performance

The spring provides reliable and repeatable compression force throughout its operating range, helping improve machine accuracy and production consistency.

Long Fatigue Life

Designed for continuous compression cycles, the spring maintains its performance even in demanding production environments.

High Dimensional Accuracy

Strict production control ensures consistent dimensions, making installation and replacement simple while maintaining compatibility with standard die systems.

Reliable Mechanical Strength

Optimized spring geometry provides excellent resilience, reducing permanent deformation during long-term use.

Cost-Effective Solution

The combination of durability and long operating life helps reduce maintenance costs and replacement frequency.

Applications

Light Duty Die Springs are suitable for various industrial equipment, including:

• Metal stamping dies

• Punch press tools

• Progressive dies

• Plastic injection molds

• Die casting molds

• Precision mold components

• Automatic assembly equipment

• Industrial automation machinery

• Fixture systems

• Mechanical presses

• Packaging machinery

• Manufacturing equipment

Typical Industries

These springs are widely used in:

• Automotive manufacturing

• Mold and die manufacturing

• Precision machining

• Electronics production

• Home appliance manufacturing

• Metal fabrication

• Packaging industry

• Industrial automation

• General machinery manufacturing

Quality Control

Each production batch undergoes strict quality inspection to ensure:

• Dimensional accuracy

• Load consistency

• Spring rate verification

• Compression performance

• Fatigue resistance

• Material quality inspection

This helps ensure reliable performance during long-term industrial use.

Custom Manufacturing

In addition to standard models, customized production services are available, including:

• Special dimensions

• Custom spring force

• Different free lengths

• Non-standard diameters

• Special material requirements

• Surface treatment options

• OEM production

• Drawing-based manufacturing

Packaging

Products are securely packed to prevent deformation during transportation. Packaging options can be customized according to shipment quantity and customer requirements.

Why Choose Light Duty Die Springs?

• Wide range of standard models

• Stable compression characteristics

• High fatigue resistance

• Precision manufacturing

• Long service life

• Suitable for continuous industrial operation

• OEM and customized production available

• Compatible with many standard die and mold systems

Light Duty Die Springs are an ideal choice for manufacturers seeking reliable compression springs for stamping dies, molds, automation equipment, and other precision mechanical applications where consistent force and durability are essential.
