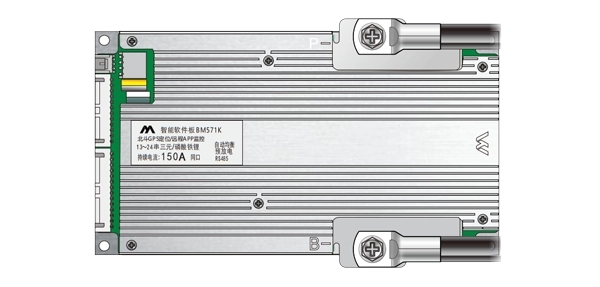

BM571K/BM571KO
The BM571K/BM571KO is a smart BMS offering high‑precision timing, power‑loss detection, low‑voltage warnings, and multiple alarms.
https://en.szmtxny.cn/BMS/BM571K-BM571KO.html
• High-precision timing
• Built-in battery with power-loss detection
• Low-voltage warning
• Multiple alarm functions
| Support Strings | 13-24S (LiFePO4 at least supports 14 strings, NCM supports up to 20 strings) |
| Continuous Current | 120A/150A |
| Charging Method | Same Port |
| Temperature Detection | 4 Channels |
| Balanced Approach | Passive Balancing 30-80mA |
| Self-Discharge | ≤20μA |
| Operating Current | ≤30mA |
| Communication | LTE、BT、RS485、CAN(Optional) |
| Size | 180*111*22.5mm |
| Basic Function | Special Handle/ Antenna Box Software Remote Control OTA Bluetooth Current Integration Power on Wake-up Load Detection Anti-spark |
| Optional Function | CAN Buzzer Preheating Battery Level Indicator Panel |
| Application Area | Electric Tricycles High Speed Electric Motorcycle Low Speed Vehicle Sightseeing Bus Golf Cart |
